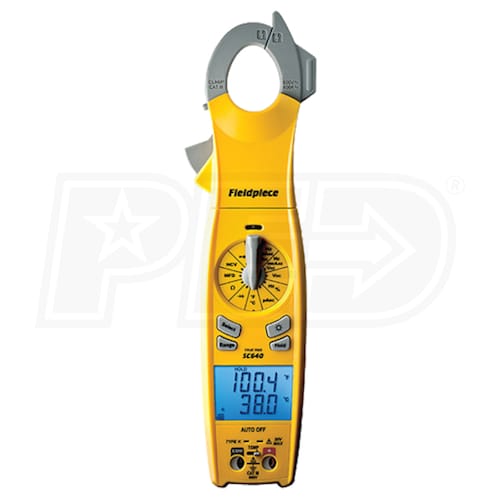

Fieldpiece SC640 - Loaded Clamp Meter - Swivel Head - True RMS



Write a Review
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Ships Tuesday, Mar 2nd
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Fieldpiece SC640 - Loaded Clamp Meter - Swivel Head - True RMS
Fieldpiece SC640 - Loaded Clamp Meter - Swivel Head - True RMS
Model: SC640
How-To Articles


    The Fieldpiece SC640 is a swivel-head clamp meter packed with more features and measurements than any other clamp meter in the HVAC industry. The SC640 features lead storage, a test lead holder, magnetic strap, jaw flashlight and a backlight on the dial so you can easily choose the right measurement in poorly lit spaces. The SC640 includes all the electrical measurements HVAC professionals use every day, along with features like True RMS, inrush current, capacitance, temperature, duty cycle and microamps DC.
  • Fieldpiece SC640 Features
  • Swivel Clamp
  • Magnetic Strap
  • Probe Storage
  • Dual Display
  • Hold
  • Clamp Probe Holder
  • Dial Backlight
  • Clamp Jaw Light
  • LCD Backlight
  • Low Battery Indicator
  • Hi-Voltage Warning
  • Fieldpiece SC640 Measurements
  • Volts (AC/DC)
  • True RMS
  • Inrush Current
  • Temperature (F/C)
  • Capacitance
  • Duty Cycle %
  • 400 Amps (AC)
  • Microamps (DC)
  • Frequency
  • Non-Contact Voltage
  • 50 Mega Ohm with 0.1 Resolution
  • Continuity
  • Diode Test
  • Product Includes
  • SC640 Meter
  • ADLS2 Silicone Leads
  • ATB1 Wrap Tab K-Type Thermocouple
  • ASA2 Short Alligator Lead Extensions
  • Velcro Strap
  • 9V Battery
  • ANC7 Padded Case
California residents see
Warning: This product can expose you to chemicals including Bisphenol A (BPA) which is known to the State of California to cause Harm.
For more information go to:


General Information
Power Source
Minimum Operating Temperature
32 F
Maximum Operating Temperature
122 F
Electrical Data
Battery Type
Warranty Information
Warranty Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
