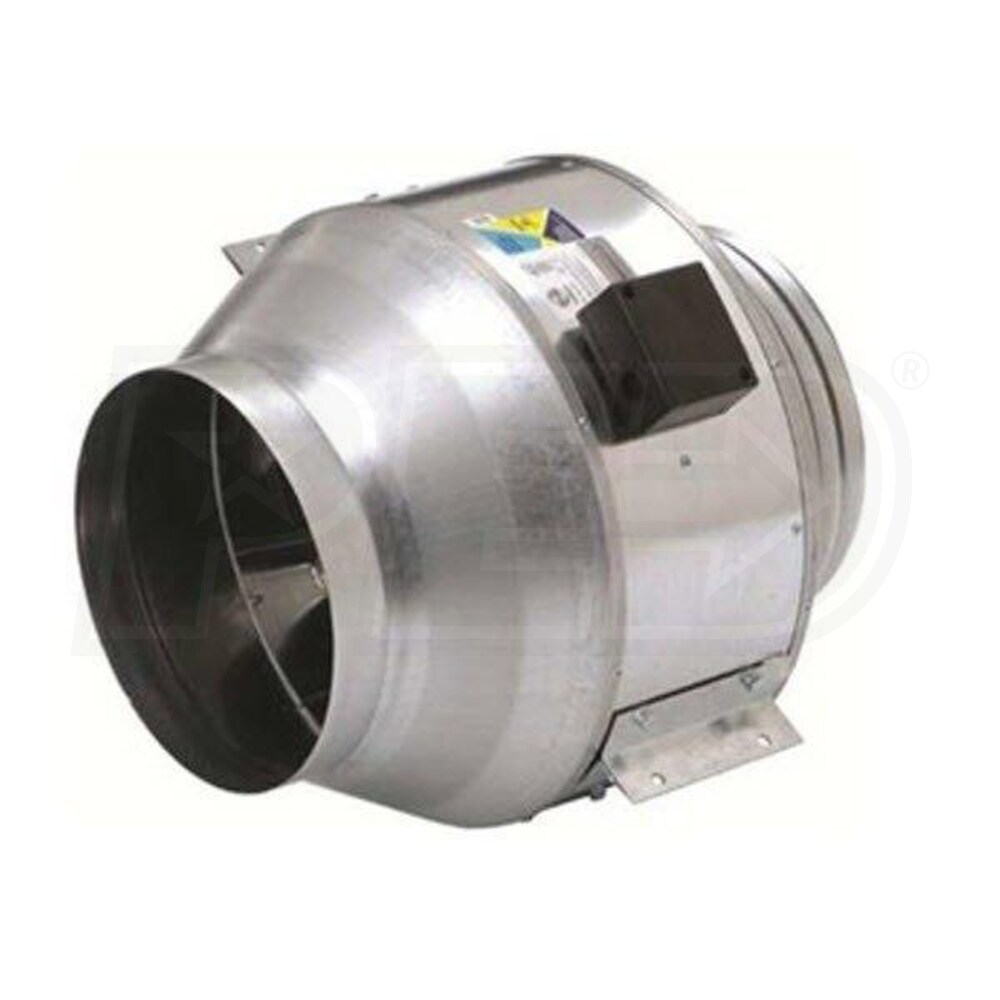

Fantech FKD - 836 CFM - Inline Duct Fan - 8" Duct - 230V

Fantech FKD - 836 CFM - Inline Duct Fan - 8" Duct - 230V
Model: FKD8XL-230
$495.00
Ships in 3-4 Weeks
Free Shipping
Power Supply

Ships in 3-4 Weeks
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Featuring a galvanized steel housing, the Fantech FKD 8XL-230 Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 230 volt model can produce a maximum airflow of up to 836 CFM. The FKD 8XL-230 is constructed with an 8" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
Specifications
General Information
Product Line
FKD
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
836 CFM
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
8 Inches
Product Diameter
12.5 Inches
Product Height
15.5 Inches
Shipping Height
19 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
20 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Features
Features
    Featuring a galvanized steel housing, the Fantech FKD 8XL-230 Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 230 volt model can produce a maximum airflow of up to 836 CFM. The FKD 8XL-230 is constructed with an 8" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is prewired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction.
  • External Rotor Motor
  • An external rotor motor allows the fan to operate in high-moisture or dust-laden areas.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.
Specifications
General Information
Product Line
FKD
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
836 CFM
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
8 Inches
Product Diameter
12.5 Inches
Product Height
15.5 Inches
Shipping Height
19 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
20 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Product Specs
+
Specifications
General Information
Product Line
FKD
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
836 CFM
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
8 Inches
Product Diameter
12.5 Inches
Product Height
15.5 Inches
Shipping Height
19 Inches
Shipping Width
17 Inches
Shipping Length
17 Inches
Shipping Weight
20 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
