Durastar DRAW09F1A
Durastar DRAW09F1A
Durastar DRAW09F1A
Hover to zoom
1 Of 5
Durastar DRAW09F1A
Durastar DRAW09F1A

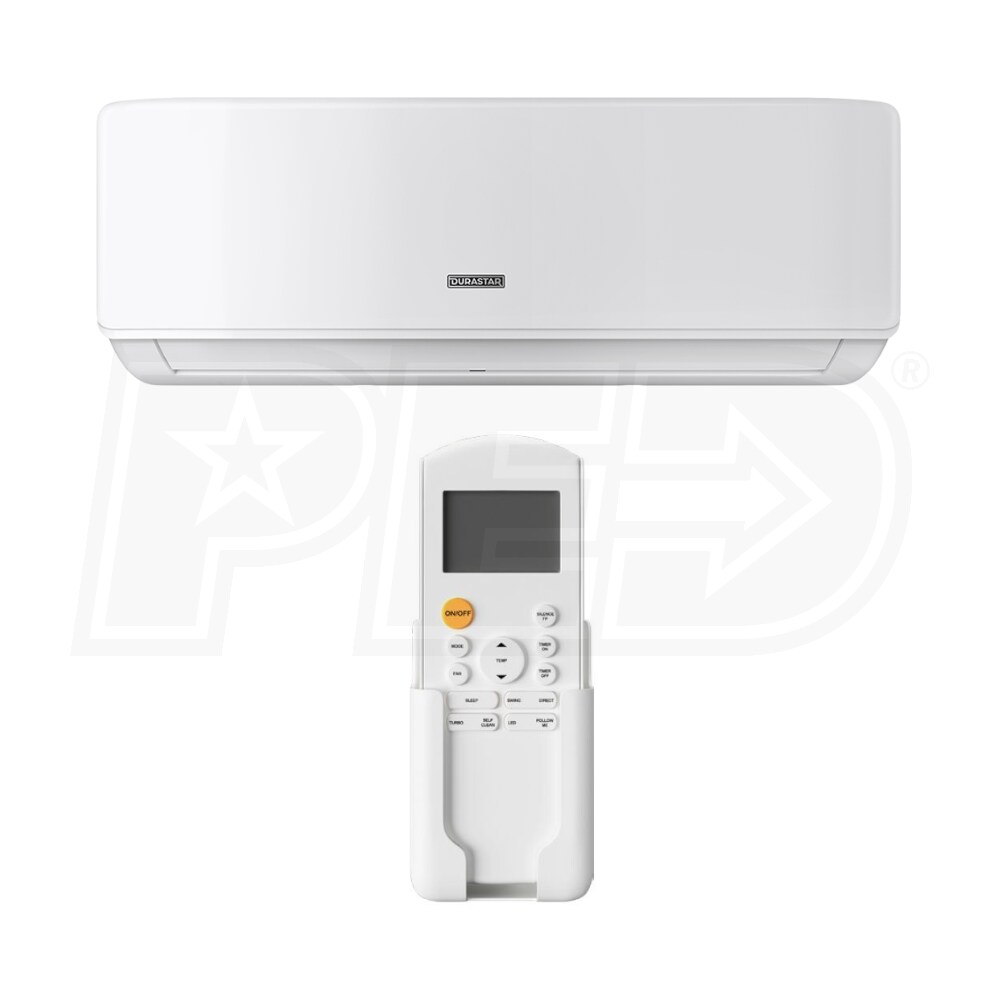

Durastar - 9k BTU - Wall Mounted - For Multi or Single Zone



Write a Review
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Ships Monday, Apr 19th
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Durastar - 9k BTU - Wall Mounted - For Multi or Single Zone
Durastar - 9k BTU - Wall Mounted - For Multi or Single Zone
Model: DRAW09F1A
How-To Articles


    Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs. Featuring "Follow-Me" technology, heating capabilities down to -13°F and efficiencies up to 22.8 SEER (with compatible outdoor condenser), the DRAW series Wall Mounted units are perfect for high-quality comfort.
  • Durastar Wall Mount Features
  • Auto Restart
  • Auto Changeover
  • 24-Hour Timer
  • Self Clean Function
  • Single or Multi Zone Compatible
  • Product Note
    Please note, installation manuals are not currently included with your mini split. Please see the Manuals tab for the Installation Manual.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov


General Information
Wall Mounted
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Remote Control
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
Installation Location
Remote Included
Cooling BTU
Heating BTU
Moisture Removal
2.11 Pints/Hour
Maximum Air Flow
265 CFM
Minimum Air Flow
141 CFM
Minimum Sound Level
25 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
36.5 dB
Electrical Data
60 Hz
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 1/16 Inches
Product Width
31 9/16 Inches
Product Depth
7 7/16 Inches
Product Weight
18.5 Pounds
ETL Listed
Energy Star Listed
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
