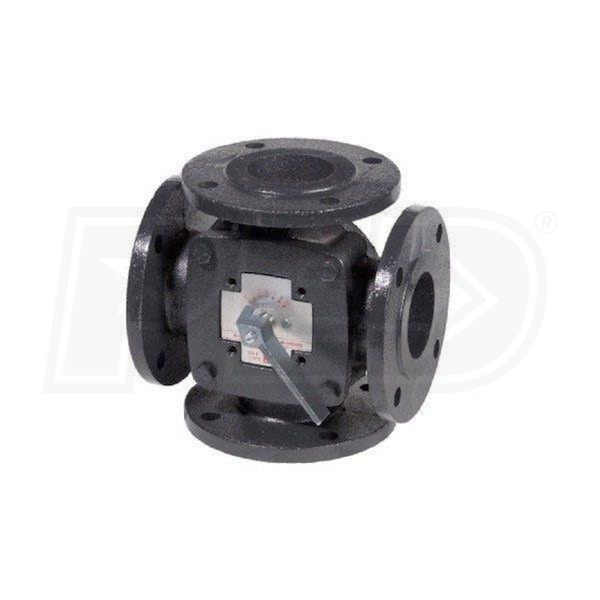

Danfoss 4 Way ESBE Type F Series Rotary Valve, 3" DIN Flanged Connections, 175 CV
Model: 065B6180
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$755.25
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States

Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The ESBE 4-Way rotary valves type F is designed for mixing or diverting applications on heating and cooling systems. The valves are capable of controlling and distributing water or non-corrosive liquids on closed looped systems to different zones by either manual operation or automatically via electronic motor actuator and controller. The valve shall be made of a cast iron material with the connection either being NPT threaded of flanged. The valve should be capable of being utilized in heating or cooling closed loop applications. The valve position shall have a face plate with printing on both sides to provide a choice of valve mounting positions. The valve should be capable of assembly with an ESBE series 60 or 90 electric motor actuator.
  • Danfoss 065B6180 Features
  • The F and G series of valves are a rotary design allowing for flexibility in field piping layout
  • Double mixing function for 4-Way valve, reducing the risk of condensation within heat source
  • Valve position face plate is printed on both sides and can be rotated allowing a choice of valve mounting positions
  • Easily adaptable with ESBE electronic motor actuator 60 Series (up to 2" NPT) or Series 90
  • Suitable fluid of 100% water or glycol mixture (maximum 50% glycol) for heating or cooling closed loop systems
Specifications
General Information
Product Line
ESBE Type F
Valve Type
Mixing
Material
Brass
Performance
CV Value
175
Minimum Operating Temperature
14 F
Maximum Operating Temperature
230 F
Dimensions
End 1 Connection Type
Flanged
End 2 Connection Type
Flanged
End 3 Connection Type
Flanged
Product Weight
44.1 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    The ESBE 4-Way rotary valves type F is designed for mixing or diverting applications on heating and cooling systems. The valves are capable of controlling and distributing water or non-corrosive liquids on closed looped systems to different zones by either manual operation or automatically via electronic motor actuator and controller. The valve shall be made of a cast iron material with the connection either being NPT threaded of flanged. The valve should be capable of being utilized in heating or cooling closed loop applications. The valve position shall have a face plate with printing on both sides to provide a choice of valve mounting positions. The valve should be capable of assembly with an ESBE series 60 or 90 electric motor actuator.
  • Danfoss 065B6180 Features
  • The F and G series of valves are a rotary design allowing for flexibility in field piping layout
  • Double mixing function for 4-Way valve, reducing the risk of condensation within heat source
  • Valve position face plate is printed on both sides and can be rotated allowing a choice of valve mounting positions
  • Easily adaptable with ESBE electronic motor actuator 60 Series (up to 2" NPT) or Series 90
  • Suitable fluid of 100% water or glycol mixture (maximum 50% glycol) for heating or cooling closed loop systems
