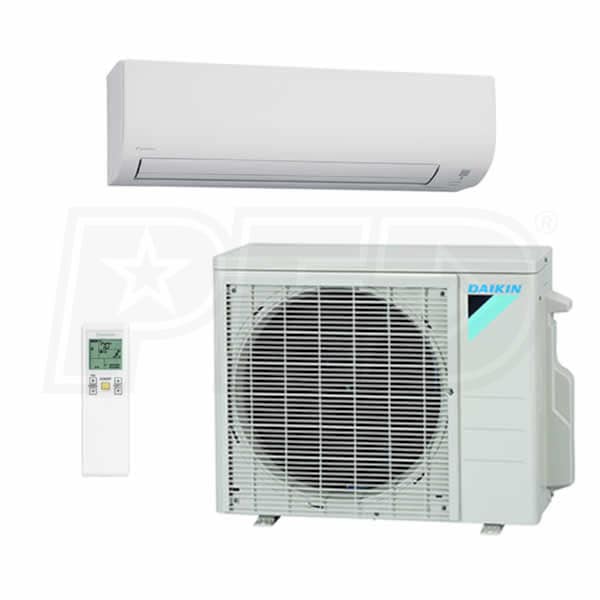

Daikin - 12k BTU Cooling Only - 19-Series Wall Mounted Air Conditioning System - 19.0 SEER

Model:

K12NMVJU

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Daikin - 12k BTU Cooling Only - 19-Series Wall Mounted Air Conditioning System - 19.0 SEER
Daikin - 12k BTU Cooling Only - 19-Series Wall Mounted Air Conditioning System - 19.0 SEER
Model: K12NMVJU
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. The K12NMVJU is a wall mounted system perfect for all your single zone cooling needs. This system pairs a Daikin wall mounted indoor unit with an outdoor air conditioning unit to provide cool air quietly and efficiently to any single zone or room in your home. Daikin indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
  • Whisper Quiet Operation
  • Daikin ductless units are engineered from the ground up for impressively quiet operation. The solid construction works together with quiet motor operation to make the units as unobtrusive as possible to its surrounding environment.
  • Inverter Technology
  • Daikin's inverter technology works together with the expansion valve to adjust coolant flow and compressor speed to match indoor conditions. This results in less dramatic temperature swings and a more comfortable home.
  • Built-In Advanced Filtration System
  • Daikin mini splits do more for your home's comfort level than control its temperature. An advanced microbial filtration system is installed in the indoor unit, allowing the mini split to purify your home's air as well as heating or cooling it.
  • Included Wireless Control
  • The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner. These unit are also compatible with the optional Daikin ENVi Wi-Fi capable Smart Control.
  • Low Ambient Cooling Capable
  • Daikin condensers can continue to provide cooling even in low temperature climates. This unit can continue to operate down to an outside temperature of 50°F, and with the optional wind baffle, down to 0°F.
  • Product Includes
    • (1) Daikin - 12k BTU - 19 Series Cooling Only Outdoor Condenser - Single Zone Only (RK12NMVJU)
    • (1) Daikin 19 Series - Cooling Only 12k BTU Wall Mounted Unit - For Single-Zone (FTK12NMVJU)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Daikin - 12k BTU - 19 Series Cooling Only Outdoor Condenser - Single Zone Only (RK12NMVJU)
  • (1) Daikin 19 Series - Cooling Only 12k BTU Wall Mounted Unit - For Single-Zone (FTK12NMVJU)
K12NMVJU
specs product image PID-65538
General Information
Type
Wall Mounted
Product Line
19-Series
Operating Mode Learn More
Cooling Only
Number of Zones Learn More
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12
Outdoor Unit Size
12000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
Cooling BTU
12000
Cooling Capacity
10000 BTU
SEER Learn More
19.0
EER Learn More
12.5
Cooling Power Input
870 Watts
Dimensions
Product Weight
78 Pounds
Shipping Weight
89 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
8064213
RK12NMVJU
General Information
Type
Outdoor Condenser
Product Line
19-Series
Operating Mode Learn More
Cooling Only
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
12000
Maximum Sound Level Learn More
49 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65.6 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
26 9/16 Inches
Product Depth
11 1/8 Inches
Product Weight
60 Pounds
Shipping Weight
65 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
5 Years
FTK12NMVJU
General Information
Type
Wall Mounted
Product Line
19-Series
Operating Mode Learn More
Cooling Only
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Moisture Removal
4 Pints/Hour
Maximum Air Flow
434 CFM
Minimum Air Flow
145 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
5/8 Inch
Product Height
11 1/4 Inches
Product Width
30 1/3 Inches
Product Depth
8 3/4 Inches
Product Weight
18 Pounds
Shipping Weight
24 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
