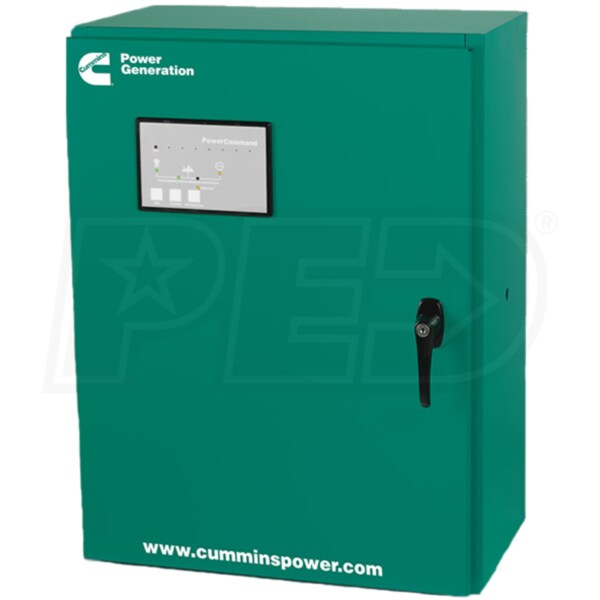

Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/240V 3-Phase)

Cummins OTEC400 - 400-Amp PowerCommand® Indoor Automatic Transfer Switch (120/240V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: A040C967
$2,550.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Factory-Direct
This Item Is Built To Order
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii, Indiana or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • 400-Amp Indoor Automatic Transfer Switch (120/240V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Integral engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual operation under de-energized conditions
  • Corrosion-Resistant NEMA 1 Enclosure
  • Approved for indoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programmable
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 1R
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
82 Pounds
Consumer Warranty
1 Year
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
Features
Features
  • 400-Amp Indoor Automatic Transfer Switch (120/240V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Integral engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual operation under de-energized conditions
  • Corrosion-Resistant NEMA 1 Enclosure
  • Approved for indoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programmable
  • Meets UL 1008 Standards For Service Entrance Applications
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 1R
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
82 Pounds
Consumer Warranty
1 Year
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 1R
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
82 Pounds
Consumer Warranty
1 Year
Product Length
59 Inches
Product Width
27.5 Inches
Product Height
16.5 Inches
