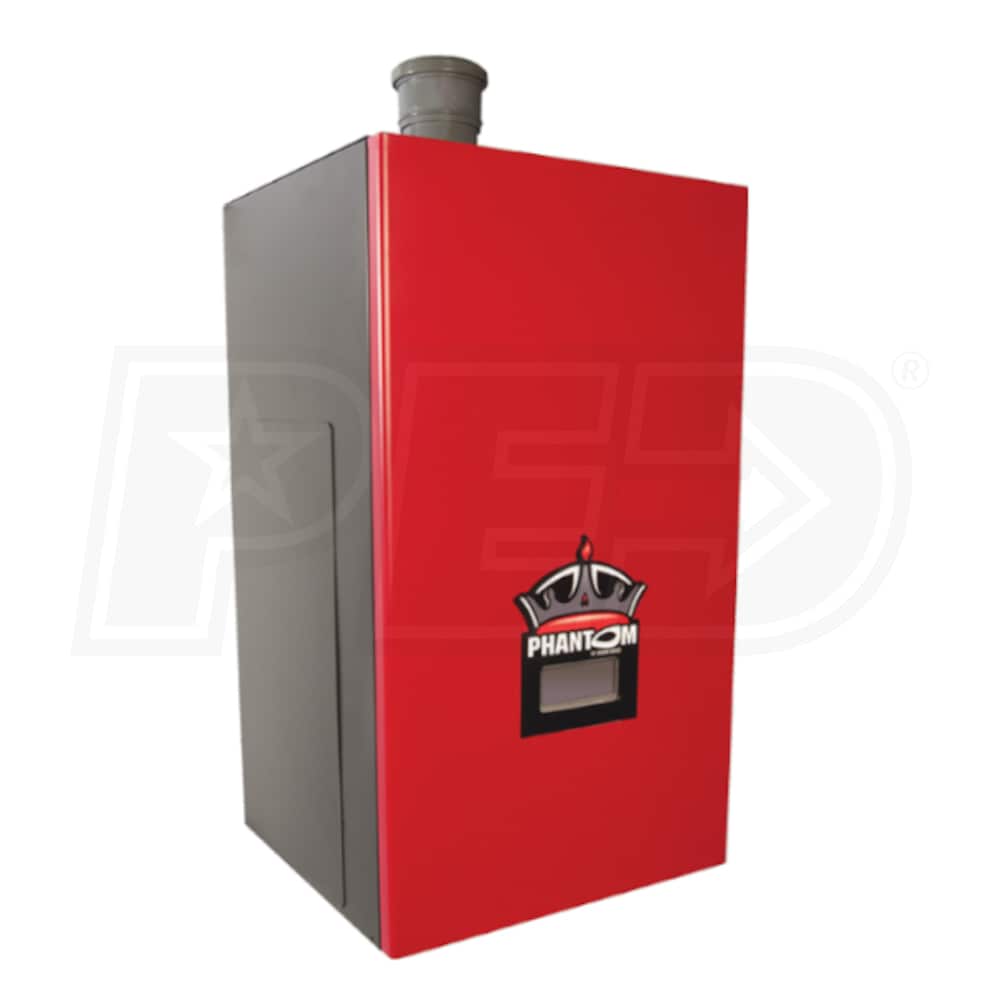

Crown Boiler Phantom - 142K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent

Model:

PHNTM150HNT2SU

Write A Review
$3,204.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$57 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Crown Boiler Phantom - 142K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Crown Boiler Phantom - 142K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Model: PHNTM150HNT2SU
$3,204.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Phantom boiler line from Crown is a high efficiency condensing boiler that comes with a multitude of features to set it apart from the competition. At its core, high efficiency condensing operation with AFUE levels up to 95% dramatically reduce your home\\\'s heating costs. When you add in stock features such as a Honeywell SOLA touch screen control and a modulating burner with a 10-to-1 turn down ratio, the boiler becomes an all-inclusive efficiency powerhouse more than worthy of a spot on your utility room\\\'s wall.
  • Condensing Boiler Technology
  • The Phantom boiler uses condensing technology, allowing the boiler to recover heat energy in the exhaust gas that might otherwise be expelled from your home. This is what allows the boiler to reach such high levels of efficiency.
  • 10-to-1 Turndown Ratio
  • The modulating burner used by the Phantom condensing boiler can adjust its firing rate down to as low as one tenth of its maximum firing rate in response to heating requirements, further increasing the efficiency of your boiler.
  • Included Honeywell SOLA Control
  • Honeywell's SOLA control is included stock with the Phantom. The SOLA allows you to program everything from firing rate to altitude of operation, adjusting your boiler to perfectly fit your home and its environment.
  • Outdoor Reset and Sensor
  • The Phantom comes with an outdoor reset and sensor, giving the included SOLA control all the information it needs to adjust boiler operation in relation to the current weather conditions.
  • Stainless Steel Heat Exchanger
  • The water tube heat exchanger is made from high grade stainless steel, giving your boiler's internals as much corrosion resistance as possible straight out of the factory while maximizing its longevity.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

PHNTM150HNT2SU
specs product image PID-103077
Overview
Product Category
Boiler
UPC
645504509525
General Information
Product Line
Phantom
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
150000 BTU
Minimum Input Capacity
15000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
142000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
123000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Turndown Ratio
10:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
29 1/16 Inches
Product Width
16 5/8 Inches
Product Depth
21 Inches
Shipping Weight
119 Pounds
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
9910437
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
12 Years
