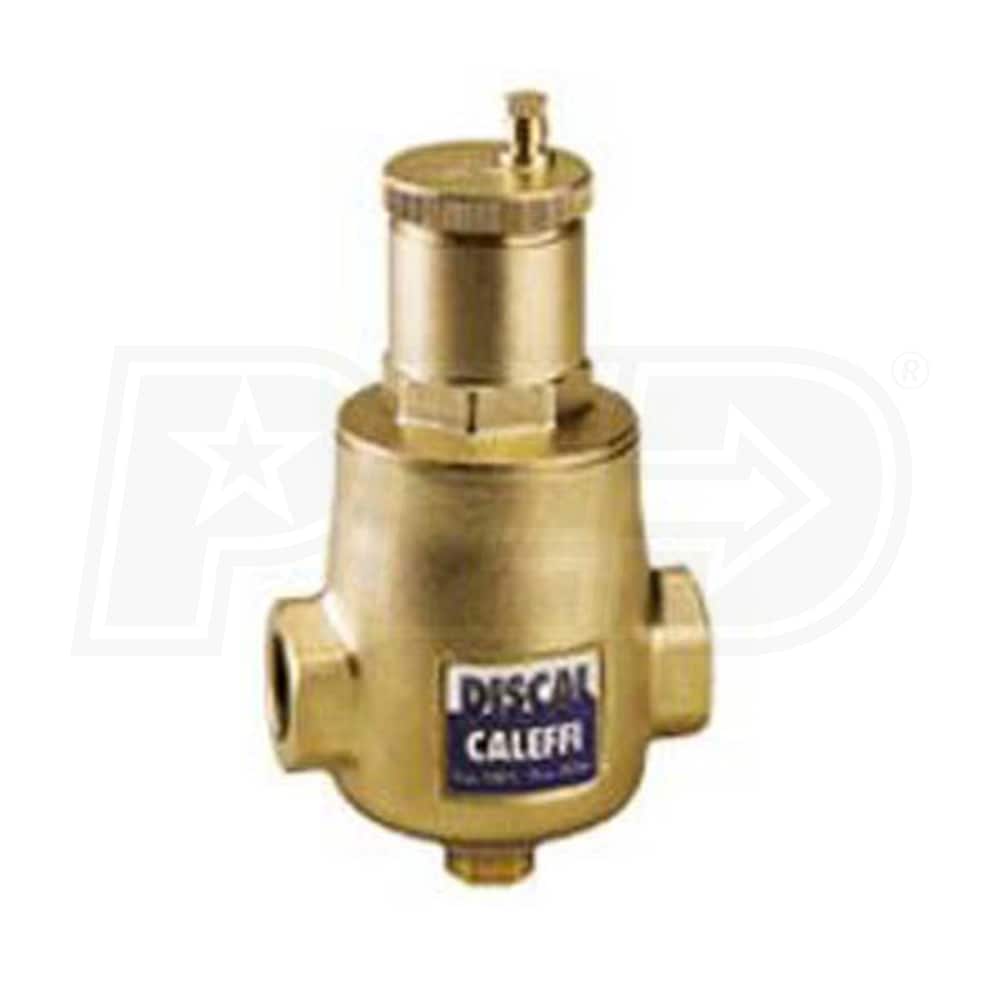

Caleffi Discal Air Separator with 1/2" Check Valve, 1-1/4" Sweat Connections

Caleffi Discal Air Separator with 1/2" Check Valve, 1-1/4" Sweat Connections
Our Price
Compare Prices
Shipping Info
Model: 551035AC
$147.20
Ships in 7-14 Business Days

Ships in 7-14 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Caleffi Discal Air Separator with 1/2" Check Valve cleanses and purifies heating and air conditioning systems. Even the smallest of air bubbles pose a long term risk to the health and effectiveness of these systems. The Caleffi Discal Air Separator with 1/2" Check Valve controls this issue by automatically by forcing air bubbles to the top where they can be safely discharged automatically. The Caleffi Discal Air Separator with 1/2" Check Valve has a Flow Capacity of 15.3 GPM and a CV of 56.4.
  • Caleffi 551035AC Features
  • Stainless steel interior
  • Connection Type: Sweat
  • Connection Size: 1.25 Inches
Specifications
General Information
Product Line
Discal
Separator Type
No
Connection Type
Sweat
Material
Steel
Check Valve
Included
Performance
CV Value
56.4
Maximum Flow Rate
15.3 GPM
Minimum Operating Temperature
32 F
Maximum Operating Temperature
250 F
Dimensions
Connection Size
1.25 Inches
Product Weight
3.8 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
    The Caleffi Discal Air Separator with 1/2" Check Valve cleanses and purifies heating and air conditioning systems. Even the smallest of air bubbles pose a long term risk to the health and effectiveness of these systems. The Caleffi Discal Air Separator with 1/2" Check Valve controls this issue by automatically by forcing air bubbles to the top where they can be safely discharged automatically. The Caleffi Discal Air Separator with 1/2" Check Valve has a Flow Capacity of 15.3 GPM and a CV of 56.4.
  • Caleffi 551035AC Features
  • Stainless steel interior
  • Connection Type: Sweat
  • Connection Size: 1.25 Inches
Specifications
General Information
Product Line
Discal
Separator Type
No
Connection Type
Sweat
Material
Steel
Check Valve
Included
Performance
CV Value
56.4
Maximum Flow Rate
15.3 GPM
Minimum Operating Temperature
32 F
Maximum Operating Temperature
250 F
Dimensions
Connection Size
1.25 Inches
Product Weight
3.8 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+
Specifications
General Information
Product Line
Discal
Separator Type
No
Connection Type
Sweat
Material
Steel
Check Valve
Included
Performance
CV Value
56.4
Maximum Flow Rate
15.3 GPM
Minimum Operating Temperature
32 F
Maximum Operating Temperature
250 F
Dimensions
Connection Size
1.25 Inches
Product Weight
3.8 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Should element be removed for sweating procedure?
A. Santa
from New York
March 24, 2016
Answer
Removing the element is not necessary, but you should wrap the separator in a cool wet rag before making your connections. You should also direct the flame with care to avoid overheating the air separator.
