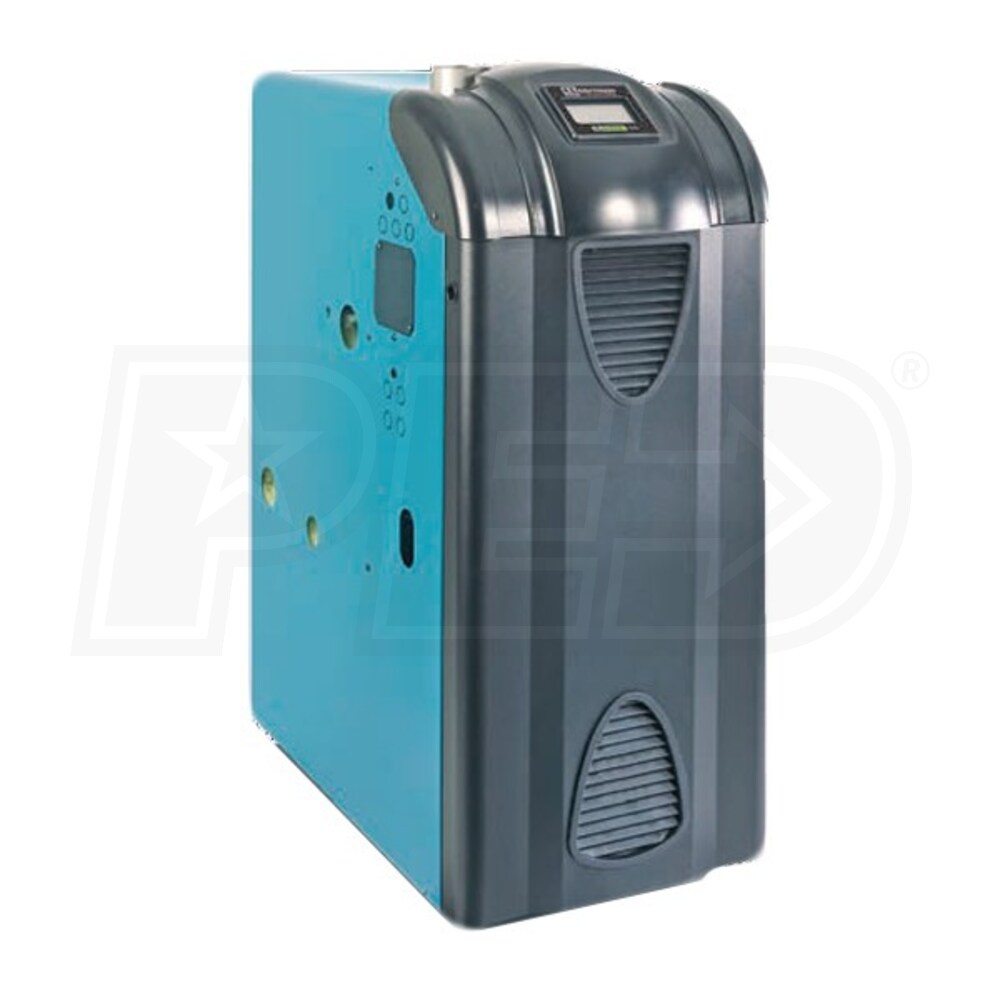

Burnham ESC - 91,200 BTU - Hot Water Boiler - LP - 85.2% AFUE - Direct Vented - 0 to 5,000 Ft. Altitude

Burnham ESC - 91,200 BTU - Hot Water Boiler - LP - 85.2% AFUE - Direct Vented - 0 to 5,000 Ft. Altitude
Our Price
Compare Prices
Shipping Info
Model: ESC4BPI-TS
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The ESC line of hot water boilers blends a reliable design with Burnham's cutting edge IQ Control System. ESC boilers save energy by doubling down on heat retention with an insulated jacket and plates. Possessing industry standard tapping locations, multiple venting options, and exceptional efficiency, the ESC4BPI-TS is an excellent replacement boiler or the perfect addition for new construction.

    Product Features

    Intelligent Hydronic Control
    All ESC boilers have Burnham's IQ Control System. The IQ system consists of two primary components: an IQ Option Panel and an Intelligent Hydronic Control. The Intelligent Hydronic Control is the centerpiece of Burnham's IQ Control System. The IHC supports two setpoints, controls ignition, provides fan and circulator relays, and acts as an aquastat.

    IQ Option Panel
    The IQ Option Panel provides a standardized and simplified way to add functionality to your boiler. It supports Burnham's IQ Option Cards for outdoor reset, an auxiliary high limit, and low water cutoff. Options card are plug-and-play, which means customizing your ESC4BPI-TS is easier than ever.

    Venting Options
    All ESC boilers can be used in direct vent and power vent applications, affording you flexibility in terms of where you draw your combustion air from. The ESC4BPI-TS also includes stainless steel flue baffles which contribute to ideal combustion conditions.

    Durable Construction
    Cast-iron construction of the boiler sections and stainless steel burner tubes contribute to the incredible longevity of ESC models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures. By using a lower system temperature when possible, you will save energy and prevent short-cycling.

    Product Includes
    • (1) Burnham ESC4BPI-TS Hot Water Boiler
    • (1) Vent Connector
    • (1) Vent Terminal
    • (1) Air Intake Terminal
    • (1) Taco 007-2 Circulator
    • (1) Miscellaneous Parts Carton
    • (1) Instruction Envelope
Specifications
General Information
Product Line
ESC
Medium Learn More Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Combustion Type
Conventional
Modulating/Staging Learn More Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
5000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
Performance
Maximum Input Capacity Learn More The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
91200 BTU
DOE Heating Capacity Learn More Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
90000 BTU
Net I=B=R Capacity Learn More I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
68000 BTU
AFUE Learn More AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85.2 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
41 Inches
Product Width
15 1/2 Inches
Product Depth
33 Inches
Product Weight
220 Pounds
Shipping Weight
300 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
4663901
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
Features
Features

    Burnham is devoted to pushing the limits of heating technology and efficiency. Their ingenuity is responsible for some of the most efficient boilers on the market today. The ESC line of hot water boilers blends a reliable design with Burnham's cutting edge IQ Control System. ESC boilers save energy by doubling down on heat retention with an insulated jacket and plates. Possessing industry standard tapping locations, multiple venting options, and exceptional efficiency, the ESC4BPI-TS is an excellent replacement boiler or the perfect addition for new construction.

    Product Features

    Intelligent Hydronic Control
    All ESC boilers have Burnham's IQ Control System. The IQ system consists of two primary components: an IQ Option Panel and an Intelligent Hydronic Control. The Intelligent Hydronic Control is the centerpiece of Burnham's IQ Control System. The IHC supports two setpoints, controls ignition, provides fan and circulator relays, and acts as an aquastat.

    IQ Option Panel
    The IQ Option Panel provides a standardized and simplified way to add functionality to your boiler. It supports Burnham's IQ Option Cards for outdoor reset, an auxiliary high limit, and low water cutoff. Options card are plug-and-play, which means customizing your ESC4BPI-TS is easier than ever.

    Venting Options
    All ESC boilers can be used in direct vent and power vent applications, affording you flexibility in terms of where you draw your combustion air from. The ESC4BPI-TS also includes stainless steel flue baffles which contribute to ideal combustion conditions.

    Durable Construction
    Cast-iron construction of the boiler sections and stainless steel burner tubes contribute to the incredible longevity of ESC models. The heat exchanger is also made of cast iron, which allows it to accept lower return water temperatures. By using a lower system temperature when possible, you will save energy and prevent short-cycling.

    Product Includes
    • (1) Burnham ESC4BPI-TS Hot Water Boiler
    • (1) Vent Connector
    • (1) Vent Terminal
    • (1) Air Intake Terminal
    • (1) Taco 007-2 Circulator
    • (1) Miscellaneous Parts Carton
    • (1) Instruction Envelope
Specifications
General Information
Product Line
ESC
Medium Learn More Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Combustion Type
Conventional
Modulating/Staging Learn More Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
5000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
Performance
Maximum Input Capacity Learn More The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
91200 BTU
DOE Heating Capacity Learn More Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
90000 BTU
Net I=B=R Capacity Learn More I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
68000 BTU
AFUE Learn More AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85.2 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
41 Inches
Product Width
15 1/2 Inches
Product Depth
33 Inches
Product Weight
220 Pounds
Shipping Weight
300 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
4663901
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
Product Specs
+
Specifications
General Information
Product Line
ESC
Medium Learn More Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Combustion Type
Conventional
Modulating/Staging Learn More Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
5000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
Performance
Maximum Input Capacity Learn More The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
91200 BTU
DOE Heating Capacity Learn More Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
90000 BTU
Net I=B=R Capacity Learn More I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
68000 BTU
AFUE Learn More AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
85.2 %
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
41 Inches
Product Width
15 1/2 Inches
Product Depth
33 Inches
Product Weight
220 Pounds
Shipping Weight
300 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
4663901
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
Limited Lifetime Years
