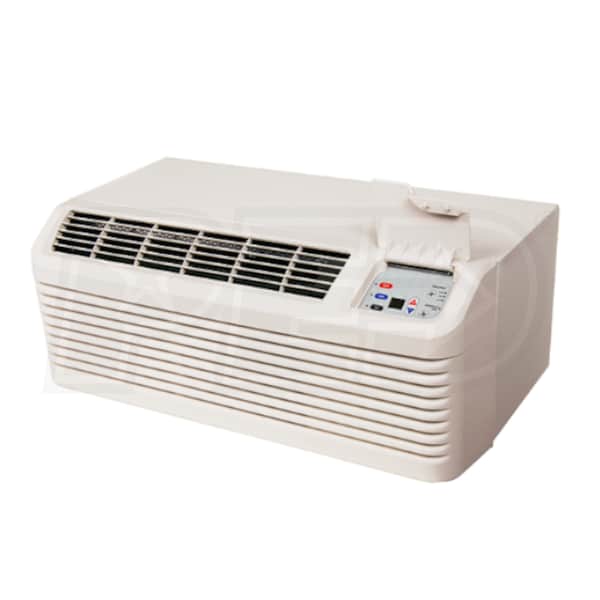

Amana 9k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt - BULK Qty 6

Amana 9k BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.5 kW Electric Heat - 208-230 Volt - BULK Qty 6
Our Price
Compare Prices
Shipping Info
Model: PTH093G35AXXX-6
(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews (5)
Write A Review
$5,057.00

In-Stock
Ships Monday, Apr 6th
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Cooling Capacity (BTU/Hr)
Voltage (Volts)
Unit Quantity
Add-Ons
In-Stock
Ships Monday, Apr 6th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    The Amana PTH093E35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
Specifications
General Information
Type
PTAC
Product Line
PTH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Package Quantity
6
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.2 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
112 Pounds
Shipping Weight
762 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
PTH093G35AXXX Specifications+
General Information
Type
PTAC
Product Line
PTH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.2 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
112 Pounds
Shipping Weight
127 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    The Amana PTH093E35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.
  • Condensate Dispersion System
  • The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.
  • Fan-Off Delay
  • After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.
  • Quiet Operation
  • Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
Specifications
General Information
Type
PTAC
Product Line
PTH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Package Quantity
6
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.2 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
112 Pounds
Shipping Weight
762 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
PTH093G35AXXX Specifications+
General Information
Type
PTAC
Product Line
PTH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.2 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
112 Pounds
Shipping Weight
127 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
PTAC
Product Line
PTH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Package Quantity
6
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.2 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
112 Pounds
Shipping Weight
762 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
PTH093G35AXXX Specifications+
General Information
Type
PTAC
Product Line
PTH
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
2.2 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
24.4 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
112 Pounds
Shipping Weight
127 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
Warranty Information
Unit Replacement Warranty
1 Year
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(5)
+
Amana PTH093G35AXXX-6 Reviews & Ratings
