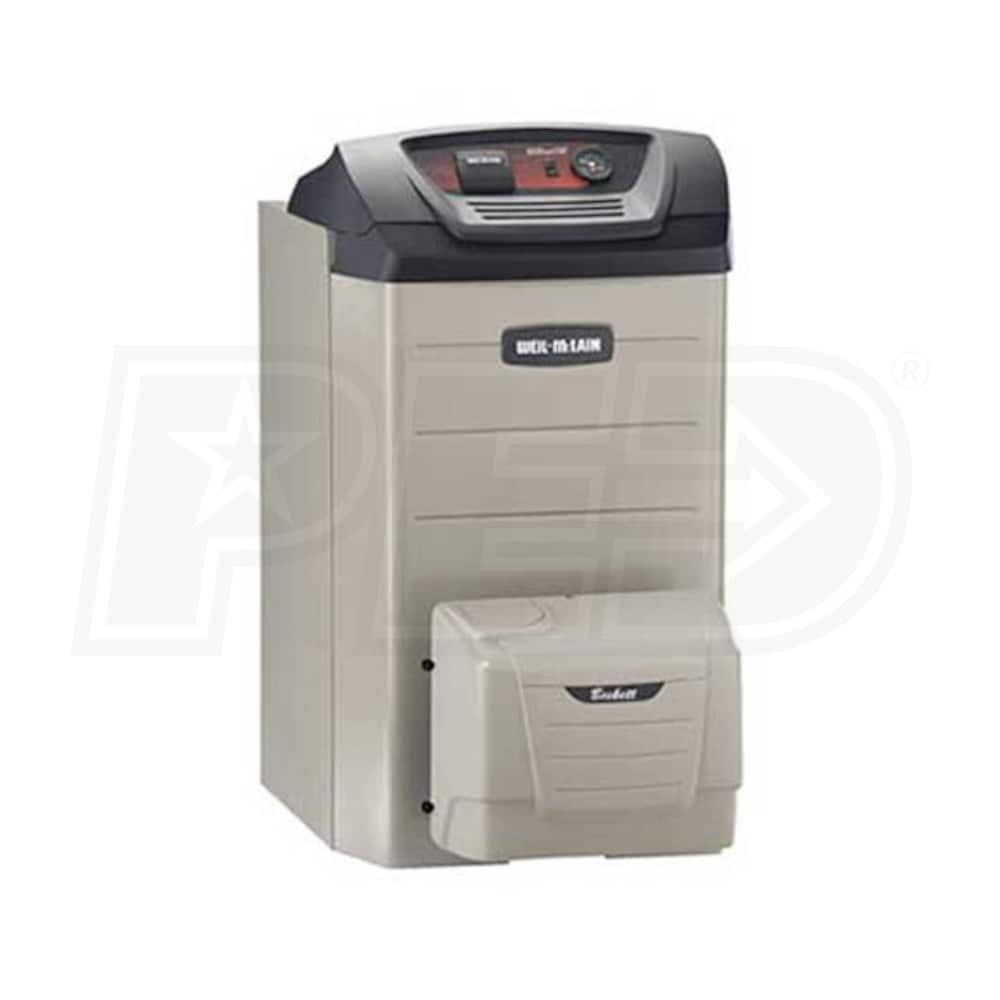

Weil-McLain Ultra Oil - 1.0 GPH - Hot Water Boiler - Oil - 86.5% AFUE - Chimney Vented - 0 to 2,000 Ft. Altitude

Model:

386901003

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Weil-McLain Ultra Oil - 1.0 GPH - Hot Water Boiler - Oil - 86.5% AFUE - Chimney Vented - 0 to 2,000 Ft. Altitude
Weil-McLain Ultra Oil - 1.0 GPH - Hot Water Boiler - Oil - 86.5% AFUE - Chimney Vented - 0 to 2,000 Ft. Altitude
Model: 386901003
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Over the last 130 years, Weil-McLain has built a reputation of designing some of the most reliable boilers in the marketplace. Their dedication to producing long-lasting heating solutions is seen in every boiler they make. Ultra Oil is Weil-McLain's highest efficiency oil boiler line. A durable cast-iron heat exchanger makes the Ultra Oil a reliable hydronic heating option with fantastic longevity. Ultra Oil boilers may last a lifetime, but they certainly don't take that long to set up. Pre-wiring the control terminals is just one of measures taken by Weil-McLain to provide a simple, straightforward installation process. Bringing efficiency, durability, and ease of use together in a single package, the Ultra Oil is perfect for all oil installations.

    Product Features

    Innovative Heat Exchanger Designs
    The Ultra Oil has a three-pass heat exchanger with extra wide flueways. This design has been refined by Weil-McLain for 65 years. Three-pass design provides improved heat transfer area and energy utilization. Wider flueways prevent blockages and make maintenance simple. The result is a clean, efficient heat exchanger that keeps you comfortable.

    Captured Seals
    Silicone-coated fiber ropes are used for sealing the boiler sections and heat exchanger. These seals expand and contract with the boiler, keeping the unit watertight and preventing contaminants from entering your system.

    Streamlined Installation
    The Ultra Oil is an installer-friendly boiler. A reversible front door allows the unit to be placed against wall without obstructing access. The side panels of the Ultra Oil are interchangeable, which cuts down on installation missteps. Finally, all connections for piping, wiring, and venting are consolidated and easy-to-access at the rear of the boiler.

    Flexible Venting
    Weil-McLain has worked hard to ensure that the Ultra Oil is fit for any installation. You do not have to have a chimney to enjoy the Ultra Oil; direct vent is also a possibility. With a direct vent compatible burner, vent termination kit, and flexible insulated pipe, the Ultra Oil can be vented conveniently through the wall.

    Control Options
    The Ultra Oil features a hinged pod at the top of the unit. This is used to view and access the external service switch and temperature/pressure gauge. An Advanced Features Module may be installed within the pod as well. The AFM is a optional boiler control that provides additional functionality to your system including two boiler staging, outdoor reset control, and DHW priority with override.

    Product Includes
    • (1) Weil-McLain UO-3 Hot Water Boiler
    • (1) Taco 007 Circulator
    • (1) Barometric Damper
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

386901003
specs product image PID-49974
General Information
Product Line
Ultra Oil
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Oil
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Burner Model
Sold Separately
UPC
672619183568
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
86.5 %
Input Rate
1 GPH
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
122000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
106000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
40 Inches
Product Width
22 1/16 Inches
Product Depth
25 Inches
Product Weight
636 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
2101572
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
20 Years
