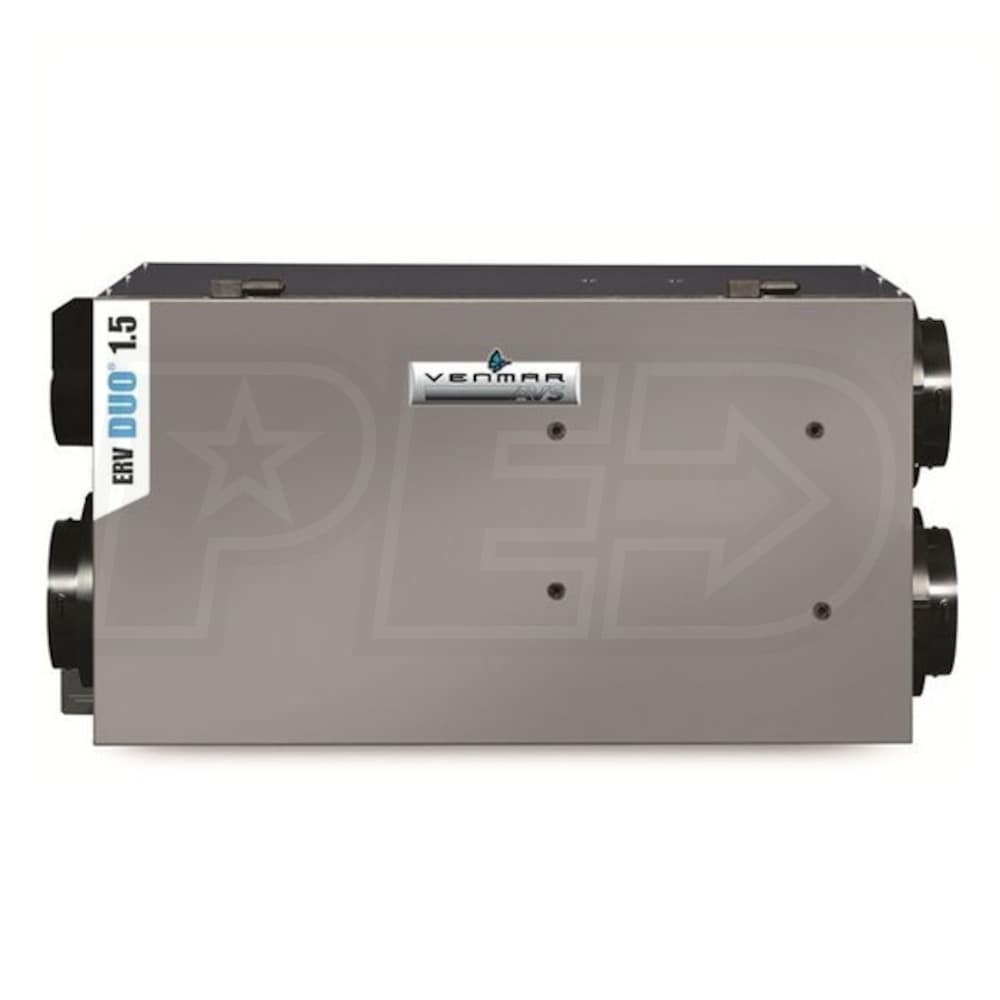

Venmar Duo - 120 Max CFM - Energy Recovery Ventilator (ERV) - Side Ports - 6" Connection - Recirculation Defrost Type

Model:

46700

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Venmar Duo - 120 Max CFM - Energy Recovery Ventilator (ERV) - Side Ports - 6
Venmar Duo - 120 Max CFM - Energy Recovery Ventilator (ERV) - Side Ports - 6" Connection - Recirculation Defrost Type
Model: 46700
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Owners of larger homes have routinely had trouble finding recovery ventilators large enough to fit their home. Many of the market's recovery ventilation offerings are for single story homes, and do not have enough power under the hood to ventilate a large, multi-story home. Enter Venmar's DUO series of energy recovery ventilators. Heat and moisture recovery for larger locations are no problem for the DUO as they are built from the ground up to accommodate larger air volumes. The SilentSure noise protection also ensures that no matter how much air you push through the DUO, it remains quiet and unobtrusive to you and your family.

    Product Features

    Polymerized Energy Recovery Wheel
    The polymerized energy recovery wheel in Venmar DUO ERVs brings fresh air into your home from the outdoors with every cycle, pre-conditioning it with the heat energy in the stale air it expels from your home. The end result is a home that is both efficient and well ventilated, keeping you and your family feeling fresh.

    Balances Indoor Moisture Levels
    The ERV allows moisture to permeate the core's heat exchanger surface, bringing more moisture into your home in the winter heating months and less moisture into your home in the summer during cooling season.

    Recirculation Defrost Cycle
    Venmar DUO series units occasionally need to defrost their internal core due to condensation buildup on the heat exchanger surfaces. A separate operation mode is included for this purpose which circulates warm air from your home throughout the unit, melting any frozen condensate in the process.

    Equalizes Indoor and Outdoor Pressure
    A less well known side effect of a well insulated home is unequal air pressure inside and outside of your home. Both negative and positive air pressure have negative consequences and can lead to increased energy costs and mold growth. Venmar's recovery ventilators solve this problem as well, allowing the air inside your home to exchange naturally with the outside air, easily balancing the pressure difference.

    SilentSure Noise Reduction System
    The SilentSure noise reduction system from Venmar comes standard on the DUO series of heat recovery ventilators. This system insulates the noise produced by the unit from the outside environment, keeping sound levels during operation inside your home very low.

Specifications

46700
specs product image PID-50165
General Information
Type
ERV
Product Line
Duo
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Recirculation
Port Location
Side
Core Material
Polymerized Wheel
UPC
772371119055
Performance
Maximum Air Flow
120 CFM
Apparent Sensible Effectiveness
80 %
Minimum Air Flow
68 CFM
Sensible Recovery Efficiency
70 %
Total Recovery Efficiency
69 %
Electrical Data
Voltage
120 Volts
Power Consumption
170 Watts
Phase
1
Frequency
60 Hz
Current Draw
1.6 Amps
Dimensions
Duct Connection
6 Inches
Product Height
16 1/2 Inches
Product Width
35 Inches
Product Depth
17 1/8 Inches
Product Weight
73 Pounds
Certifications
Country of Origin
Canada
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
5 Years
