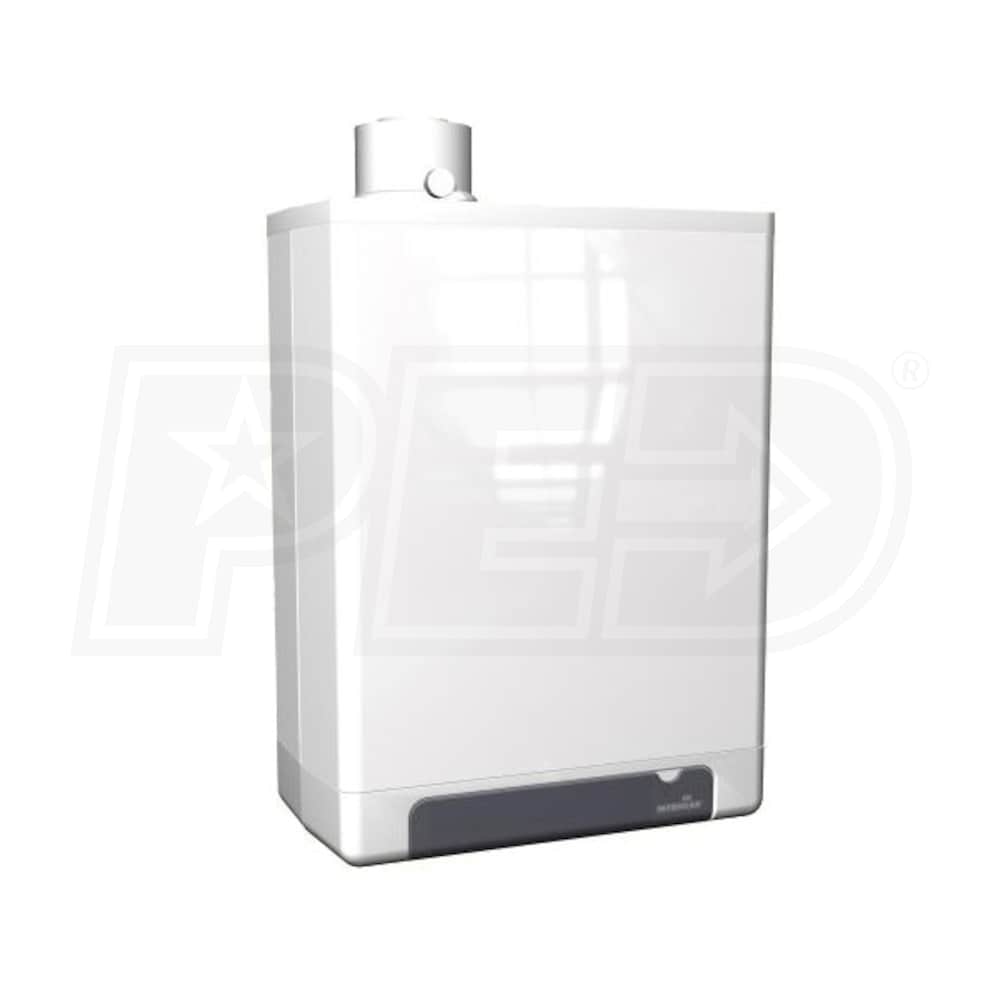

Triangle Tube CC 105S - 94K BTU - 93.5% AFUE - Hot Water Gas Boiler - Direct Vent

Model:

CC 105S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Triangle Tube CC 105S - 94K BTU - 93.5% AFUE - Hot Water Gas Boiler - Direct Vent
Triangle Tube CC 105S - 94K BTU - 93.5% AFUE - Hot Water Gas Boiler - Direct Vent
Model: CC 105S
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

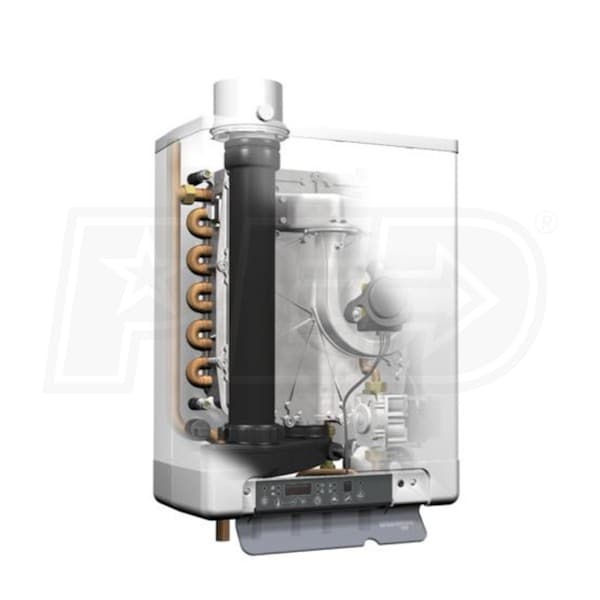

    Triangle Tube is best known for two things: feats of hydronic innovation and incredibly efficient products. The Challenger Solo hot water boiler checks both of those boxes. This is a high-efficiency, low NOx, low noise hot water boiler that suits many applications. The condensing technology behind Challenger Solo boilers will capture and reuse gaseous heat that escapes traditional boilers. A unique cast-aluminum heat exchanger with copper waterways is the heart of the Challenger Solo. This blend of materials provides efficient heating and exceptional durability. Vertical flueways mean that you'll enjoy those benefits in a compact design. Indeed, the Challenger Solo has incredibly low profile and mounts conveniently on your wall. The Challenger is perfect for closet installations or just saving space in traditional installations, and it includes a bracket to simplify piping wherever you install it. If you have three cubic feet of space, you have room for heating for your home. The ease-of-installation means that there is more reason than ever to add a high-efficiency Challenger boiler to your system.
  • Outdoor Reset Control
  • All Challenger Solo boilers include an outdoor reset sensor and outdoor reset control. This allows your boiler to regulate the temperature of your home based on the temperature outdoors which saves energy without sacrificing comfort.
  • Precision Through Sensors
  • Sensors at the boiler supply and return measure temperature and relay that information to your boiler so it can further refine its output and guarantee comfort and efficiency.
  • Modulating Burner
  • The Challenger can make fine adjustments to heating output because of its modulating burner. This burner allows minute, incremental changes in heat production to guarantee that you aren't using more energy than you need to be.
  • Venting Options
  • The CC 105s is a sealed combustion hot water boiler and it vents conveniently through your wall. Challenger Solo boilers support concentric venting which reduces the number of vent pipes from two to one and further reduces the space necessary to install.
  • Product Includes
  • (1) Triangle Tube CC 105s Hot Water Boiler
  • (1) Outdoor Reset Sensor
  • (1) Wall Mounting Bracket

Specifications

CC 105S
specs product image PID-22945
Overview
Product Category
Boiler
General Information
Product Line
Challenger Solo
Product Category
Boiler
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Condensing
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Connection Type
NPT
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Assembly Type
Packaged
Includes Pump
No
Gas Conversion Kit
Available
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
93 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
106000 BTU
Minimum Input Capacity
29000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
94000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
82000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
25 1/2 Inches
Product Width
17 3/4 Inches
Product Depth
9 1/2 Inches
Product Weight
73 Pounds
Shipping Weight
83 Pounds
Certifications
CSA Listed
Yes
Energy Star Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5537230
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
