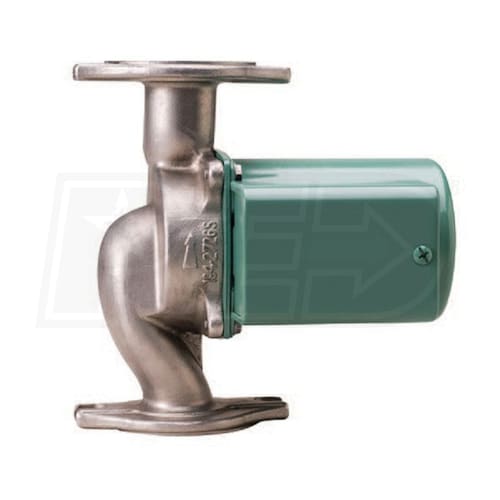

Taco 0013 - 1/6 HP - Circulator Pump - Stainless Steel - Rotated Flange

Model:

0013-SF3

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco 0013 - 1/6 HP - Circulator Pump - Stainless Steel - Rotated Flange
Taco 0013 - 1/6 HP - Circulator Pump - Stainless Steel - Rotated Flange
Model: 0013-SF3
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Taco is at the forefront of circulator innovation. Their drive to provide the most efficient, reliable pumps in the industry can be seen across their entire catalog. Systems with a high head and high flow requirements can be hard on circulators. The durability, reliability, and power of the 0013-SF make it ideal for such situations. Capable of providing efficient circulation for a litany of applications, the 0013-SF makes circulation easy for smaller businesses and larger residences. The universal flange-to-flange dimension of the 0013-SF makes it quick to install, even if you are replacing a different pump. A design that circumvents the need for traditional maintenance is coupled with durable components to provide you peace of mind. The stainless steel construction of this circulator makes it ideal for applications where corrosion resistance is important. With Taco, your hydronic circulation is in good hands.
  • Maintenance Free
  • Taco's "00" series features a self-lubricating design that improves reliability by eliminating the need for a mechanical seal. In low temperature applications, protection from corrosion is provided by an anti-condensate baffle.
  • Replaceable Cartridge Design
  • All of the circulator's moving parts are contained within a removable cartridge. Servicing a "00" series pump is as easy as replacing this cartridge.
  • High Capacity, High Efficiency
  • In the "00" series, powerful pumps are backed by a direct-drive design. Direct-drive mechanisms are known for their efficiency, longevity, and low noise levels, qualities that translate well to any application.
  • Typical Product Applications
  • Open Loop Systems
  • Hydronic Heating
  • Radiant Heating
  • Chilled Water Cooling
  • Domestic Fresh Water
  • High Pressure Drop Boilers
  • Fan Coil Units
  • Heat Exchangers
  • Large Radiant Systems
  • Heat Recovery & Geothermal
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

0013-SF3
specs product image PID-32999
General Information
Type
Circulator
Product Line
0013 Series
Motor Type
Single Speed
Connection Type
Flanged
Material
Stainless Steel
Flange Orientation
Rotated
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
UPC
687752620979
Performance
Maximum Head
33 Feet
Maximum Flow Rate
34 GPM
Maximum Fluid Temperature
230 F
Horsepower
0.167
Maximum Operating Pressure
125 PSI
RPM
3250 RPM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
2 Amps
Dimensions
Product Height
6 1/2 Inches
Product Width
6 Inches
Product Depth
7 1/2 Inches
Product Weight
11 1/2 Pounds
Shipping Weight
14.5 Pounds
Certifications
UL Listed
Yes
NSF Certified Learn More
NSF Certified
The National Sanitation Foundation has developed public health standards and certification programs to protect the world's food, water, consumer products and environment.
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
