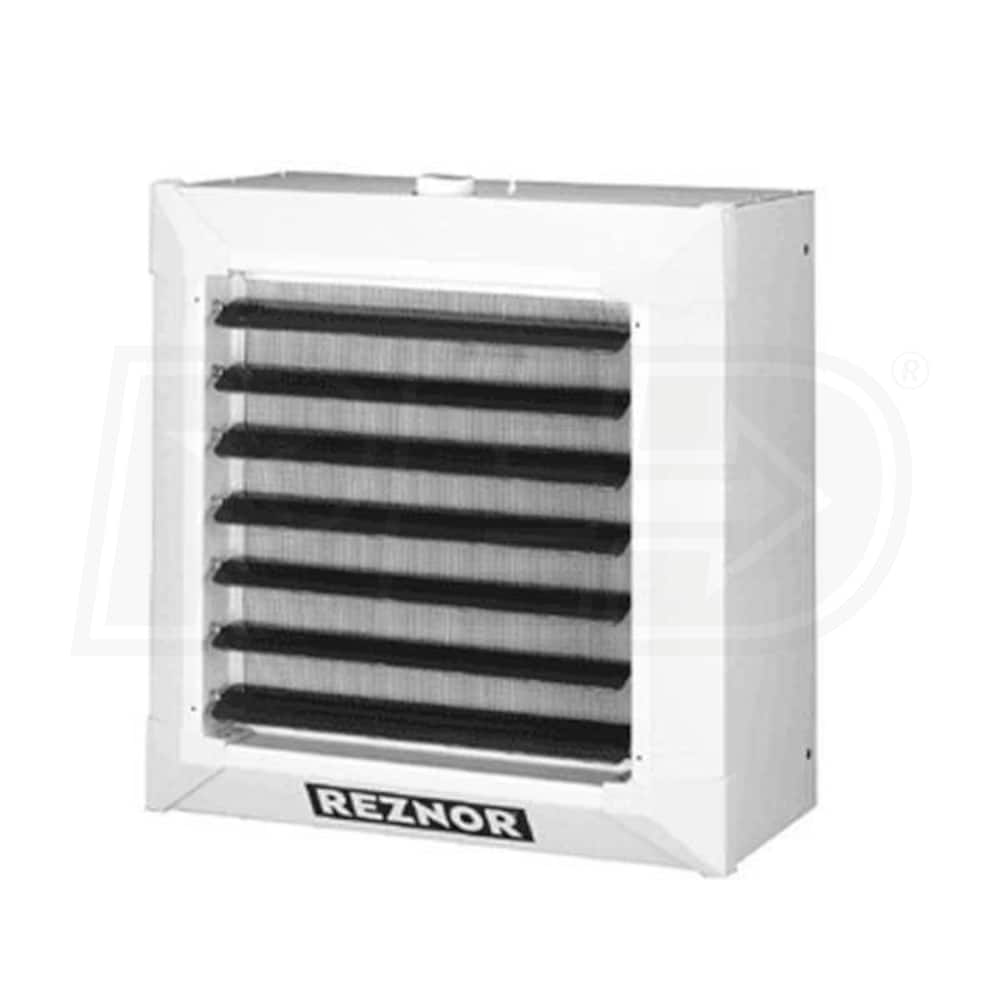

Reznor WS-96/120 Suspended Hydronic Unit Heater - 2 Row Copper Coil - Steam or Hot Water - 120,000 BTU

Model:

WS-96/120-HA12

Write A Review
$1,629.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks
synchrony card logo
$272 / Month
Suggested monthly payments with 6 month financing.
Reznor WS-96/120 Suspended Hydronic Unit Heater - 2 Row Copper Coil - Steam or Hot Water - 120,000 BTU
Reznor WS-96/120 Suspended Hydronic Unit Heater - 2 Row Copper Coil - Steam or Hot Water - 120,000 BTU
Model: WS-96/120-HA12
$1,629.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Reznor WS-96/120-HA12 Suspended Hydronic Unit Heater is a two-speed hydronic suspended unit heater designed with an output capacity of 120000 BTU/hr. WS models are designed for a high-pressure of 150 PSI for hot water and 145 PSI for steam usage. Heat exchangers are coated with a special paint to increase lifetime usage and thermal output. Cabinets are painted for corrosion resistance and designed with shake-proof screws for additional strength and durability.
  • Reznor WS-96/120-HA12 Features
  • Copper tube heat exchanger with aluminum fins
  • Galvanized fan guard
  • Cabinet composed with shake-proof screws and molded corner sections
  • Spring mounted horizontal louvers
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

WS-96/120-HA12
specs product image PID-47437
Overview
Product Category
Unit Heater
General Information
Product Line
WS
Product Category
Unit Heater
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
89000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
120000 BTU
Maximum Air Flow
1550 CFM
Minimum Air Flow
1200 CFM
Electrical Data
Phase
1
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
24 15/16 Inches
Product Width
24 15/16 Inches
Product Depth
19 3/16 Inches
Product Weight
75 Pounds
Shipping Weight
85 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year

Reviews

Reznor WS-96/120-HA12 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
I would like to incorporate this with my existing hydronic heat as I have a surplus off hot water. Is this suitable for potable water use?
Travis
from Pennsylvania
June 03, 2016
Does this unit require a thermostat directly hooked up to it, or can we use room stat in a closed loop system? I guess my question is what tells the fan to come on? Is there an internal thermostat in the unit?
Joe
from New Jersey
June 03, 2016
