Reznor EXUB-7-AK6E
Reznor EXUB-7-AK6E
Hover to zoom
1 Of 5

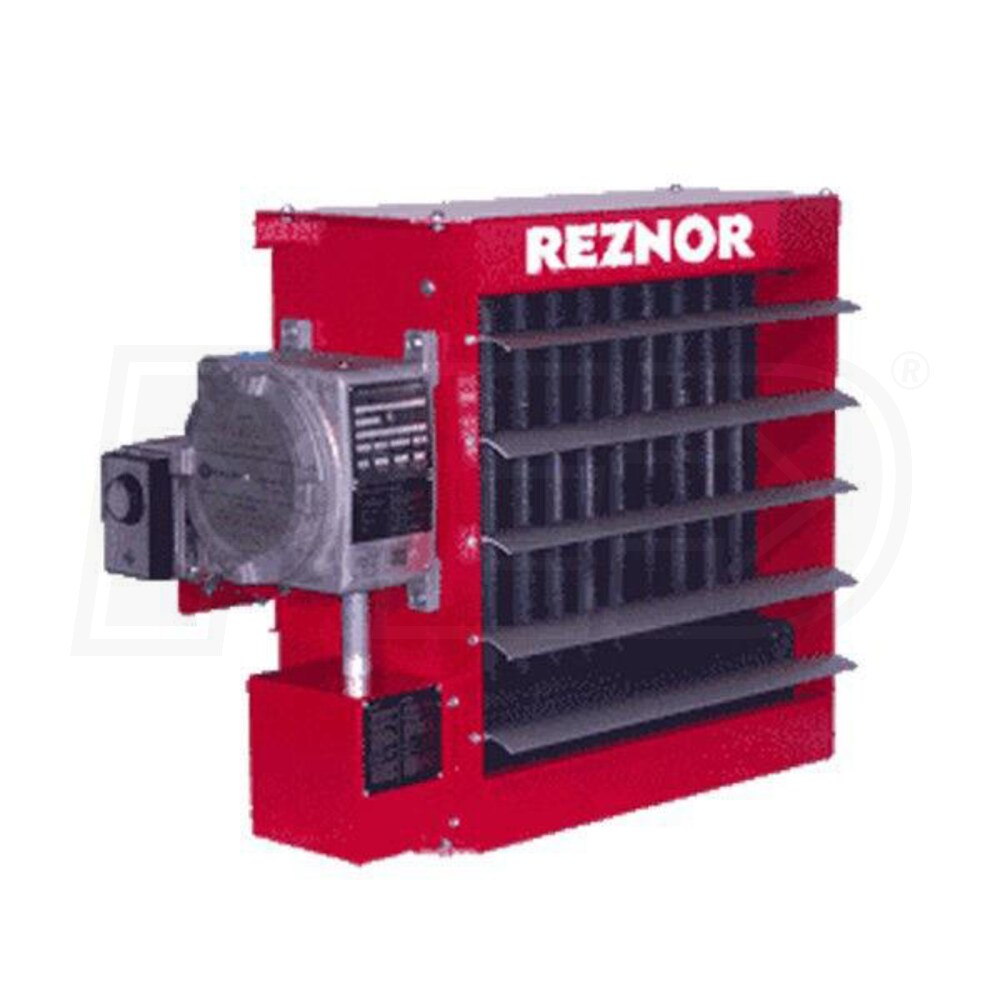

Reznor 25,608 BTU 7.5 kW Electric Unit Heater 240V 3 Phase

Model:

EXUB-7-AK6E

Write A Review
$10,187.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$128 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Reznor 25,608 BTU 7.5 kW Electric Unit Heater 240V 3 Phase
Reznor 25,608 BTU 7.5 kW Electric Unit Heater 240V 3 Phase
Model: EXUB-7-AK6E
$10,187.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    Overview for Reznor EXUB-7-AK6E

    Reznor EXUB-7-AK6E 25,608 BTU 7.5 kW Electric Unit Heater 240V 3 Phase.
  • Reznor EXUB-7-AK6E Features
  • 14 GA steel cabinet
  • High quality immersion heater
  • High performance fan and motor assembly
  • Enclosure O-rings to minimize moisture ingress
  • Epoxy/polyester powder paint
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EXUB-7-AK6E
specs product image PID-46853
Overview
Product Category
Unit Heater
Additional Model Numbers

EXUB-7-AK6E, EXUB-7-AK6E

General Information
Type
Explosion Resistant
Product Line
EXUB
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
25608 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25608 BTU
Heating Capacity (kW)
7.5 kW
Maximum Air Flow
600 CFM
Minimum Air Flow
600 CFM
Electrical Data
Voltage
240 Volts
Phase
3
Frequency
60 Hz
Current Draw
18.06 Amps
Dimensions
Product Height
19 Inches
Product Width
14 Inches
Product Depth
22 1/4 Inches
Product Weight
189 Pounds
Shipping Weight
189 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
