Reznor 68,288 BTU 20 kW Electric Unit Heater 480V 3 Phase

Model:

EXUB-20-AK7E

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reznor 68,288 BTU 20 kW Electric Unit Heater 480V 3 Phase
Reznor 68,288 BTU 20 kW Electric Unit Heater 480V 3 Phase
Model: EXUB-20-AK7E
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

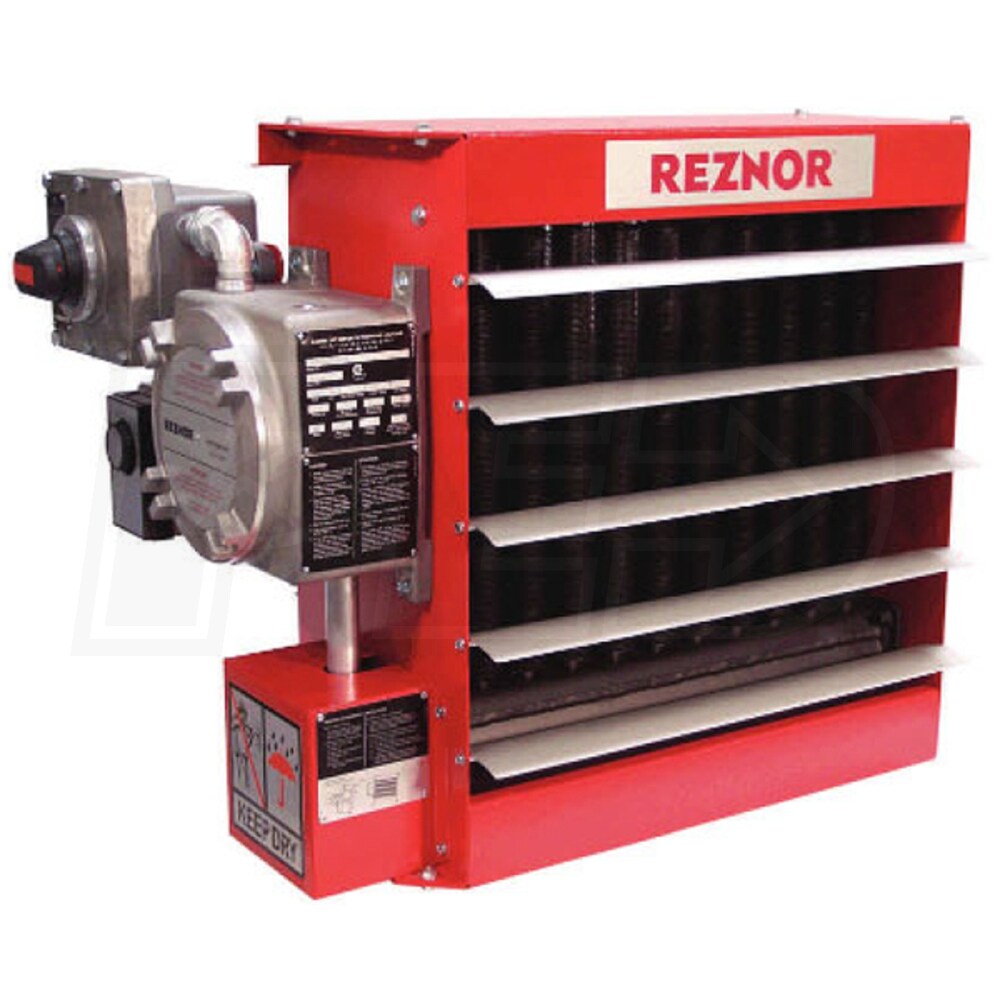

    Overview for Reznor EXUB-20-AK7E

    Reznor EXUB-20-AK7E 68,288 BTU 20 kW Electric Unit Heater 480V 3 Phase.
  • Reznor EXUB-20-AK7E Features
  • 14 GA steel cabinet
  • High quality immersion heater
  • High performance fan and motor assembly
  • Enclosure O-rings to minimize moisture ingress
  • Epoxy/polyester powder paint
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EXUB-20-AK7E
specs product image PID-46843
Overview
Product Category
Unit Heater
Additional Model Numbers

EXUB-20-AK7E, EXUB-20-AK7E

General Information
Type
Explosion Resistant
Product Line
EXUB
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
68288 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
68288 BTU
Heating Capacity (kW)
20 kW
Maximum Air Flow
1700 CFM
Minimum Air Flow
1700 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
24.08 Amps
Dimensions
Product Height
23 Inches
Product Width
28 Inches
Product Depth
22 1/4 Inches
Product Weight
221 Pounds
Shipping Weight
221 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
