Reznor EGHB-40-AK7E
Reznor EGHB-40-AK7E
Hover to zoom
1 Of 5

Reznor 136,576 BTU 40 kW Suspended Electric Heater 480V 3 Phase

Model:

EGHB-40-AK7E

Recommended
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories

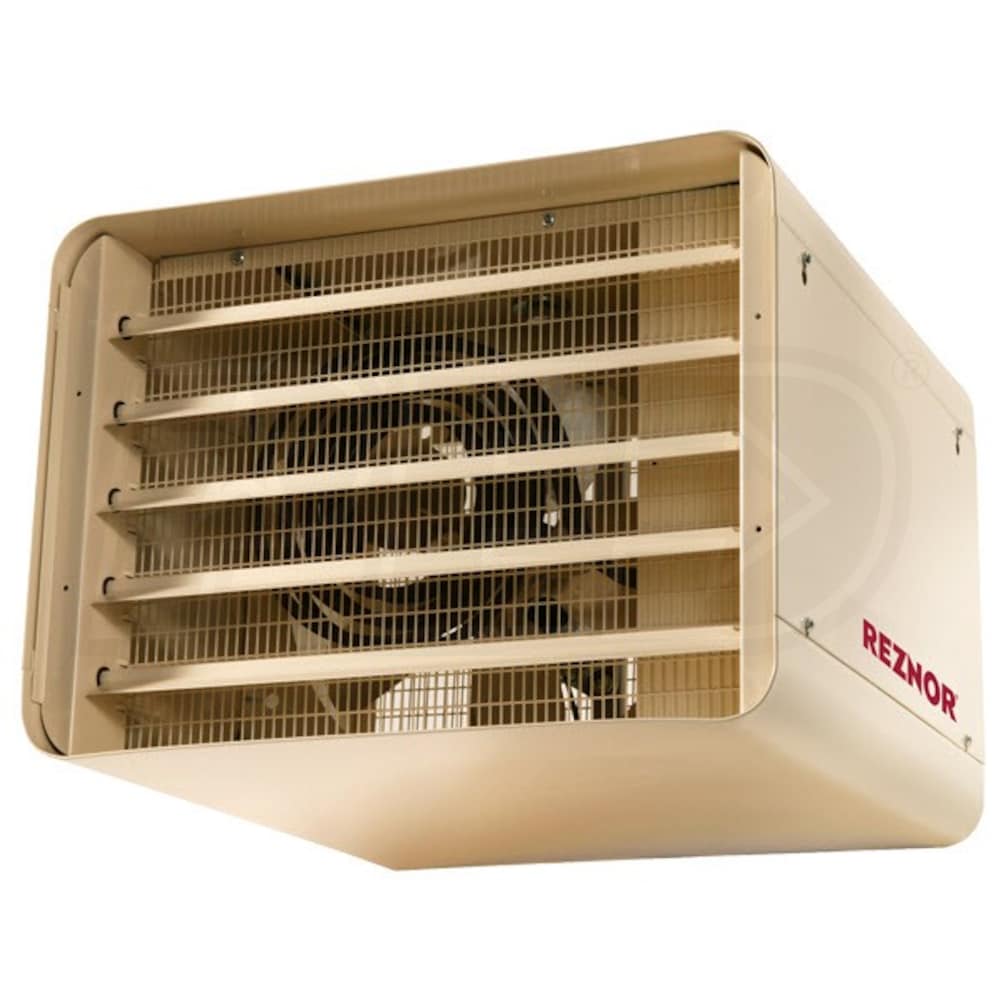

Reznor 136,576 BTU 40 kW Suspended Electric Heater 480V 3 Phase
Reznor 136,576 BTU 40 kW Suspended Electric Heater 480V 3 Phase
Model: EGHB-40-AK7E
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Overview for Reznor EGHB-40-AK7E

    Reznor EGHB-40-AK7E 136,576 BTU 40 kW Suspended Electric Heater 480V 3 Phase.
  • Reznor EGHB-40-AK7E Features
  • 18 and 20 gauge steel cabinet
  • Adjustable louvers to direct airflow
  • Tubular heating elements
  • Epoxy/polyester powder paint
  • Thermally-protected motor
  • 85 F maximum operating temperature
  • Product Note
    Reznor EGHB Series is not designed for residential use.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EGHB-40-AK7E
specs product image PID-46143
Overview
Product Category
Unit Heater
Additional Model Numbers

EGHB-40-AK7E, EGHB-40-AK7E

General Information
Type
Heavy Duty
Product Line
EGHB
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
136576 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
136576 BTU
Heating Capacity (kW)
40 kW
Maximum Air Flow
2000 CFM
Minimum Air Flow
2000 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Current Draw
48.17 Amps
Dimensions
Product Height
23 Inches
Product Width
25 1/4 Inches
Product Depth
34 5/16 Inches
Product Weight
150 Pounds
Shipping Weight
150 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
