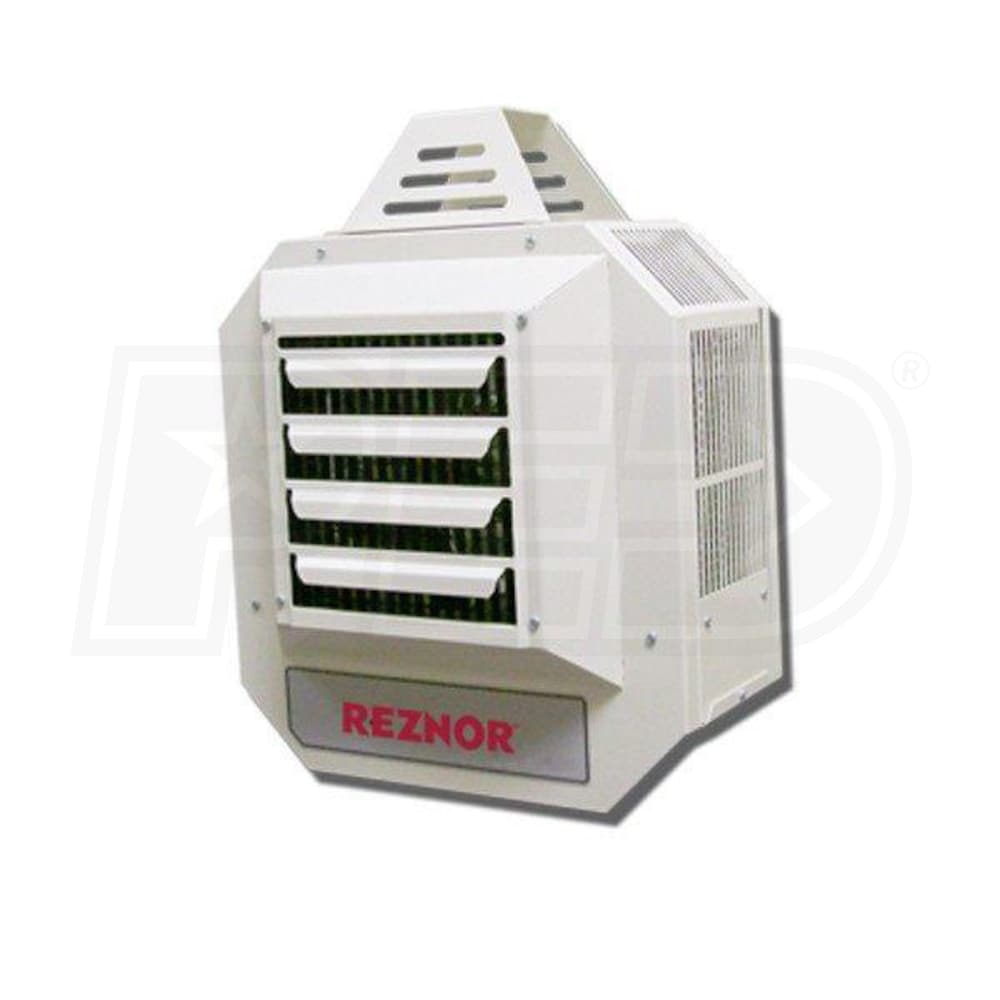

Reznor EGEB-9-AK15
Reznor EGEB-9-AK15
Hover to zoom
1 Of 5

Reznor 33,803 BTU 9.9 kW Suspended Electric Heater 208V 1 or 3 Phase

Model:

EGEB-9-AK15

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reznor 33,803 BTU 9.9 kW Suspended Electric Heater 208V 1 or 3 Phase
Reznor 33,803 BTU 9.9 kW Suspended Electric Heater 208V 1 or 3 Phase
Model: EGEB-9-AK15
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Overview for Reznor EGEB-9-AK15

    Reznor EGEB-9-AK15 33,803 BTU 9.9 kW Suspended Electric Heater 208V 1 or 3 Phase.
  • Reznor EGEB-9-AK15 Features
  • Draw-through design to evenly heat air
  • 18 and 20 gauge steel cabinet
  • Individually adjustable louvers to direct airflow
  • Stainless steel heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • Two speed fan switch
  • Integral Thermostat
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EGEB-9-AK15
specs product image PID-46113
General Information
Type
Standard
Product Line
EGEB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Additional Model Numbers

EGEB-9-AK15, EGEB-9-AK15

Performance
Heating Capacity
33803 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
33803 BTU
Heating Capacity (kW)
9.9 kW
Maximum Air Flow
625 CFM
Minimum Air Flow
625 CFM
Electrical Data
Voltage
208 Volts
Frequency
60 Hz
Recommended Breaker Size
85 Amps
Current Draw
47.6 Amps
Dimensions
Product Height
24 1/2 Inches
Product Width
22 Inches
Product Depth
9 7/8 Inches
Product Weight
59 Pounds
Shipping Weight
69 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
