Panasonic Heating and Cooling S-26PT2U6
Panasonic Heating and Cooling S-26PT2U6
Hover to zoom
1 Of 5

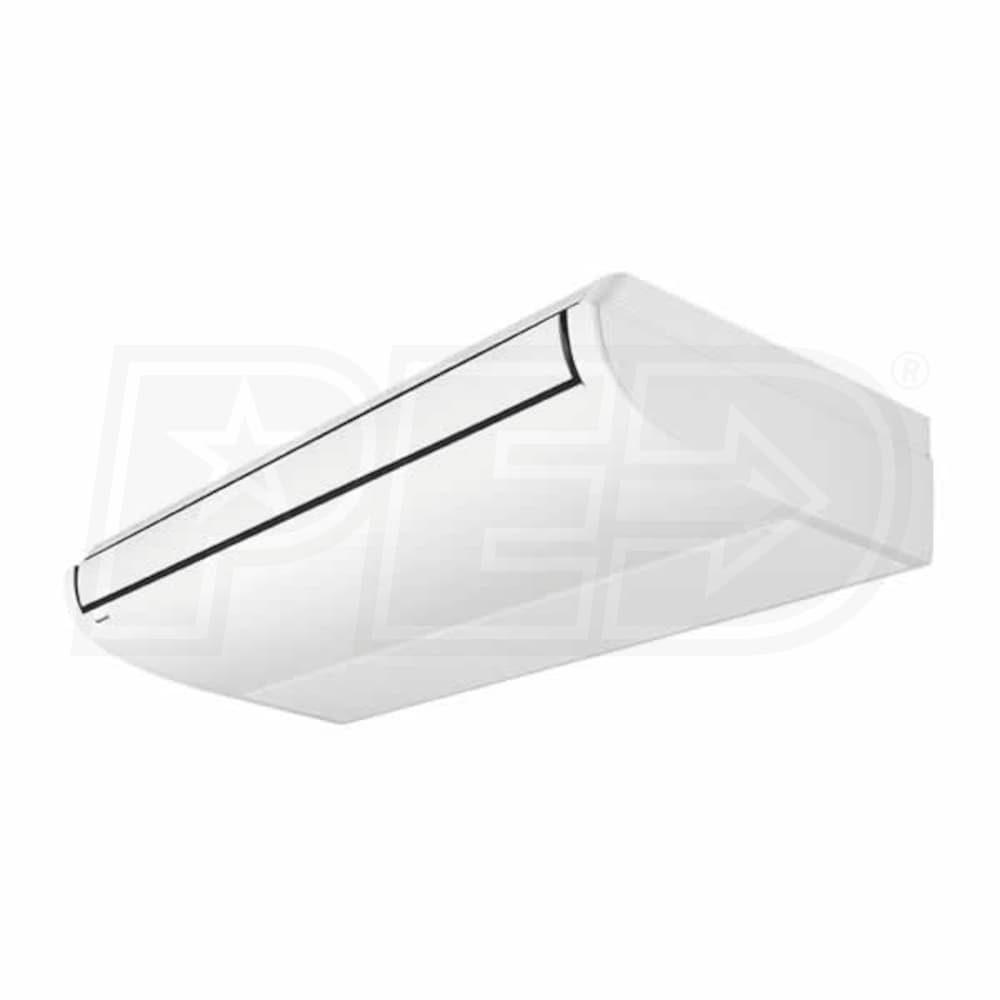

Panasonic - 26k BTU - Ceiling Suspended Unit - For Single-Zone

Model:

S-26PT2U6

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Panasonic - 26k BTU - Ceiling Suspended Unit - For Single-Zone
Panasonic - 26k BTU - Ceiling Suspended Unit - For Single-Zone
Model: S-26PT2U6
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible outdoor condenser for functionality.

    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The S-26PT2U6 Ceiling suspended indoor unit is a perfect example of Panasonic's engineering aptitude. The ceiling mounted unit is equipped with a highly efficient, multi-blade fan that generates a powerful, yet gentle airflow to your room.

    Product Features

    Dry Mode
    Operation is precisely controlled according to room temperature so that the air is properly dehumidified.

    Self-Diagnosing
    The S-26PT2U6 is equipped with a self-diagnosing function that makes it easier to diagnose malfunctions and ultimately save on service labor costs.

    Automatic Heating and Cooling Changeover
    After you set the temperature and functions you desire, just relax. If the room temperature gets higher or lower the unit will adjust accordingly.

    Hot Start
    The heat pump will warm up before blowing air to prevent any cold drafts.

    Air Sweep Control
    This function controls the louvers up and down to direct the air in a sweeping motion, providing comfort in all parts of the room.

    Power Failure Automatic Restart
    Your preset programmed operation can be reactivated once power is restored after a power failure.

    Product Includes
    • S-26PT2U6 Ceiling Suspended Mini Split Indoor Unit
    • CZ-RTC4 Wired Remote
    • Mounting Hardware
    Product Note
    • The Panasonic S-26PT2U6 ceiling suspended indoor unit is not a complete mini split system. It contains only the S-26PT2U6 indoor unit and requires a compatible Panasonic mini split outdoor unit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

S-26PT2U6
specs product image PID-62974
General Information
Type
Ceiling Suspended
Product Line
PET-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Moisture Removal
5.3 Pints/Hour
Maximum Air Flow
742 CFM
Minimum Air Flow
547 CFM
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
9 1/4 Inches
Product Width
50 5/24 Inches
Product Depth
27 2/12 Inches
Product Weight
73 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
