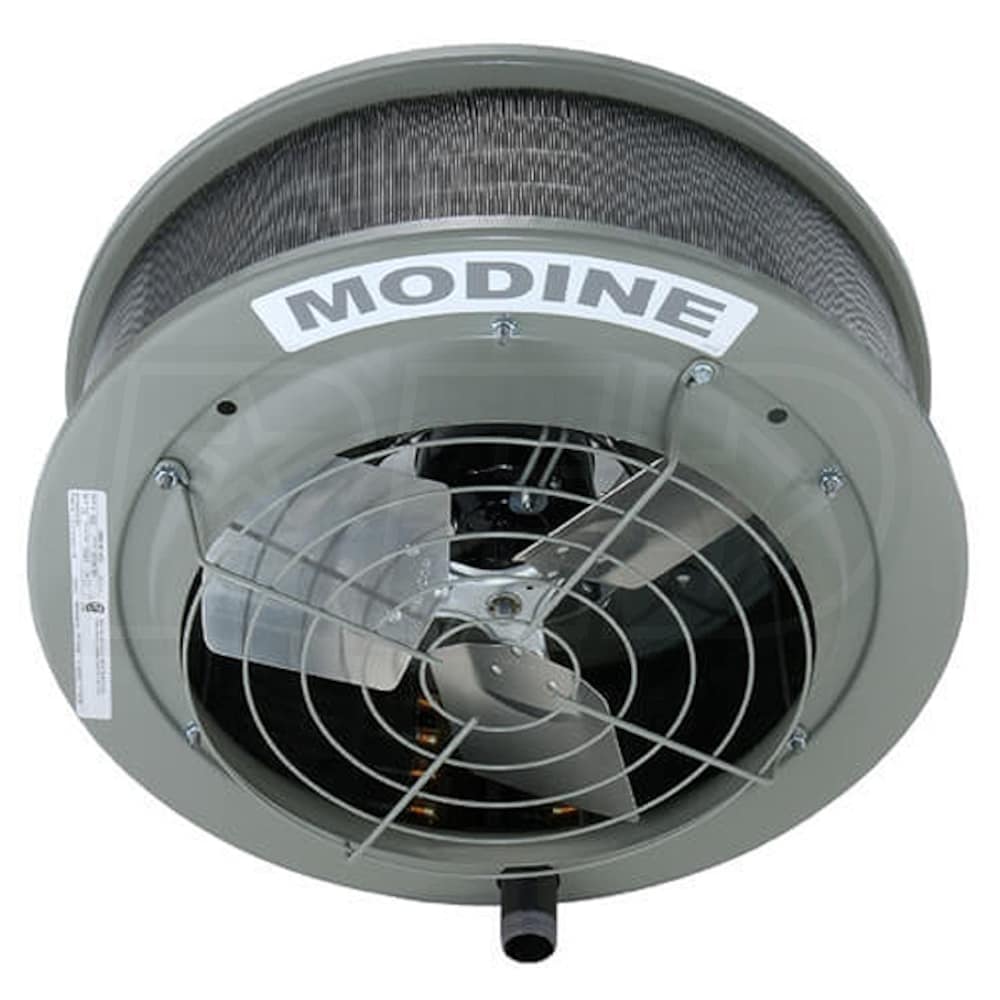

Modine's VE100 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the VE100 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.

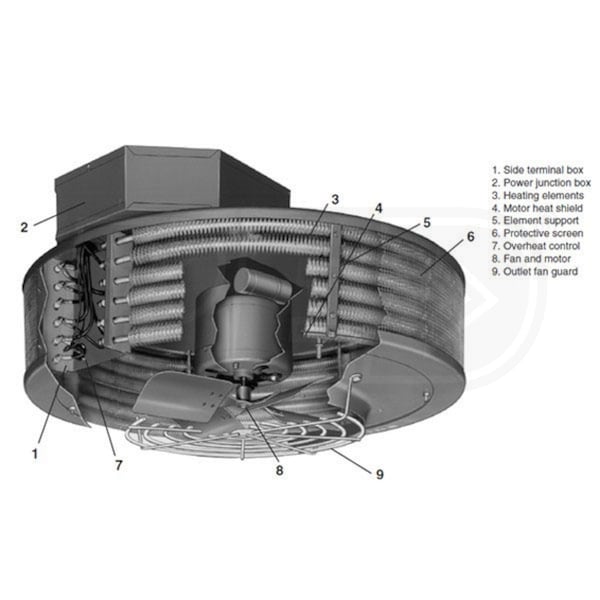

Thermally Protected Motor
The air propulsion motor included on the VE100 is entirely enclosed and thermally protected, greatly extending its service life in even the harshest conditions. Rubber vibration guards and the lightweight aluminum fan give the air propulsion system of the VE100 a notably long service life.
Nickel Chromium Heating Element
The heating element of the VE100 consists of nickel-chromium wire elements enclosed in powder-filled aluminum coated steel tubes. This arrangement makes the heating element highly resistant to thermal shock and vibration, and is made highly efficient by spiraled fins attached to the steel.
Safety Fan Guard
The fan guard of the VE100 is formed of heavy gauge steel rod stock, providing substantial support for the motor and protection from the exposed fan.
Perfectly Suited for Tall Ceilings
The powerful fan and vertical orientation combined with its numerous louver and fin accessories make the VE100 perfectly suited to warehouse and tall ceiling heating applications.
The control compartment included on the VE100 safely encloses terminal blocks, fuses, and the large transformer. This provides a central location for easy field wiring and protects sensitive, high current elements from accidental damage.
Automatic Safety Reset Control
In the event of overheating, the included reset control interrupts the power supply to the heating elements until the ambient temperature has fallen to acceptable operating levels. The control automatically resets itself once the heater cools to a safe operating temperature.
Baked-On Polyester Paint
The VE100 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
This product has other power configurations available for order, including:
- 208V/60Hz/3 Phase
- 240V/60Hz/3 Phase
- 240V/60Hz/1 Phase
For ordering information, call our sales department at (866) 554-HEAT (4328).
