Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Multi-Position Air Handler Air Conditioning System - 15.3 SEER

Model:

PVZ-HA42NHA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Multi-Position Air Handler Air Conditioning System - 15.3 SEER
Mitsubishi - 42k BTU Cooling + Heating - P-Series H2i Multi-Position Air Handler Air Conditioning System - 15.3 SEER
Model: PVZ-HA42NHA
Was $11,315.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the PVZ-HA42NHA is a single zone heat pump air handler system designed to bring high-efficiency zoned temperature control to large homes and businesses in frigid climates. A multi-positional air handler, PVA-A42AA4, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. As a multi-positional unit, it is easy to install the indoor unit in nearly any setting. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning in a sub-freezing environment.
  • Precision Temperature Control Technology
  • The PUZ-HA42NHA4 outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • H2i Technology
  • The PUZ-HA42NHA4 is rated for 100% heating capacity at 5 degrees F, 90% at -4 degrees F, and 80% at -13 degrees F. The PVZ-HA42NHA4 also features hot-start heat-pump technology to ensure that no cold air escapes during warm up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Advanced Remote Controller
  • The MHK1 wireless remote controller kits support dual set point control and multiple scheduling options. The Optimal Start function learns how quickly your zone is cooled and heated to ensure the zone is always the right temperature at the right time.

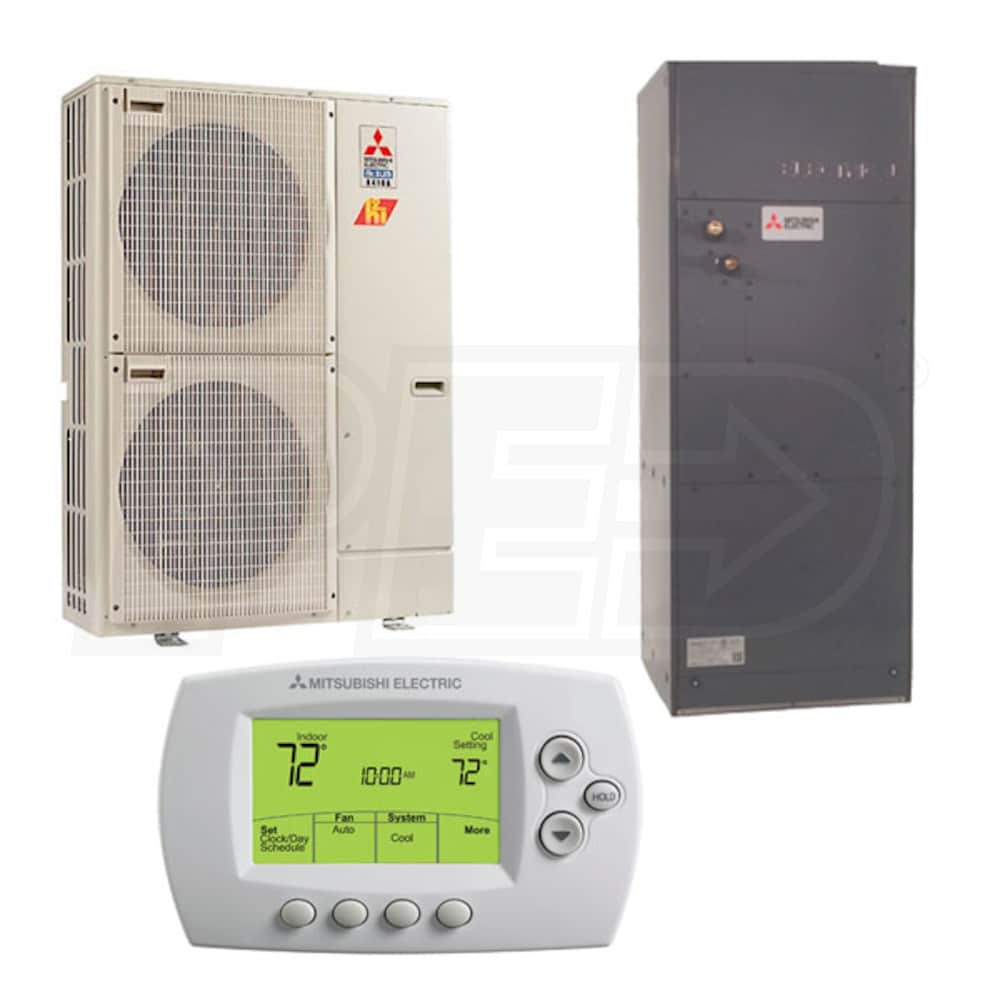

  • Product Includes

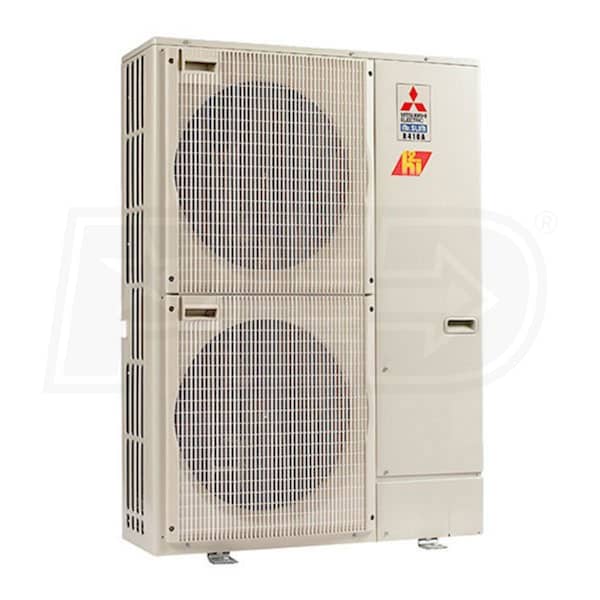

    • (1) Mitsubishi - 42k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA42NKA)

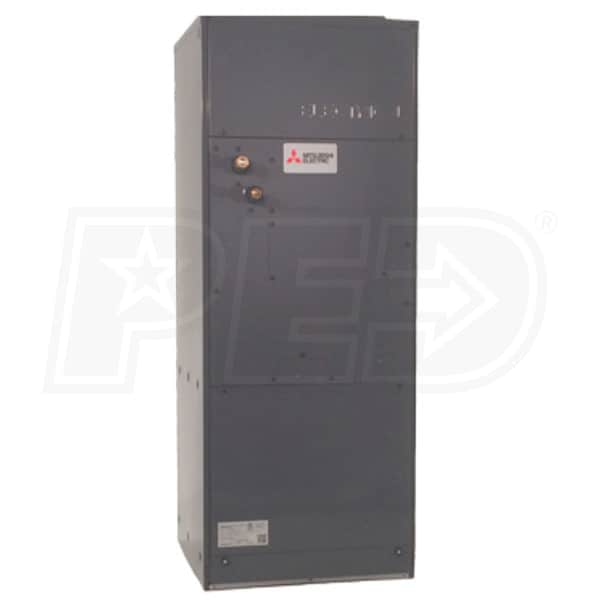

    • (1) Mitsubishi P-Series - 42,000 BTU/hr - Multi-Position - ECM Motor (PVA-A42AA4)

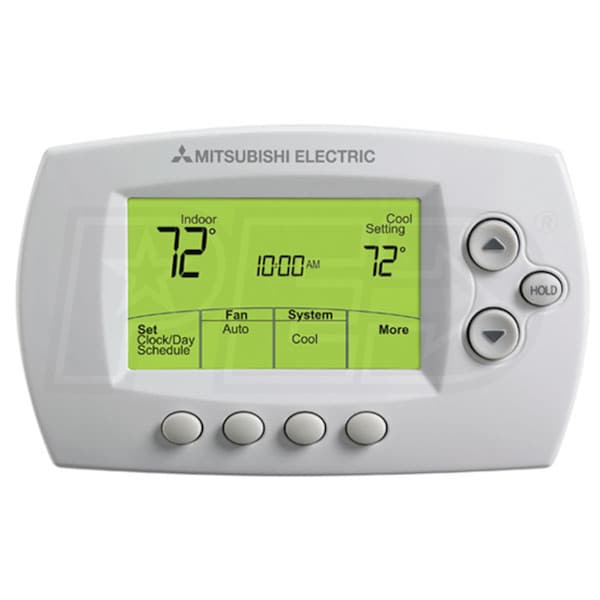

    • (1) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK1)
    Product Note
    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.

Specifications

Product Includes
  • (1) Mitsubishi - 42k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA42NKA)
  • (1) Mitsubishi P-Series - 42,000 BTU/hr - Multi-Position - ECM Motor (PVA-A42AA4)
  • (1) Mitsubishi RedLINK - Wireless Remote Controller Kit - Programmable - Wall Mounted (MHK1)
PVZ-HA42NHA
specs product image PID-62805
General Information
Type
Air Handler
Product Line
P-Series H2i
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
42
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
42000
Cooling Capacity
42000 BTU
Heating Capacity
42000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.3
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4270 Watts
Heating Power Input
4010 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
461 Pounds
Shipping Weight
471 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8052678
PUZ-HA42NKA
General Information
Type
Outdoor Condenser
Product Line
P-Series H2i
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Cooling BTU
42000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
51 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
37 Amps
Recommended Breaker Size
44 Amps
Dimensions
Maximum Line Length
245 Feet
Refrigerant Charge
13.25 Pounds
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 3/4 Inches
Product Width
41 3/8 Inches
Product Depth
14 Inches
Product Weight
287 Pounds
Shipping Weight
295 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PVA-A42AA4
General Information
Product Line
P-Series
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Nominal Cooling Capacity
42000 BTU
Maximum Air Flow
1485 CFM
Minimum Air Flow
1040 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
5.63 Amps
Dimensions
Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
59 1/2 Inches
Product Width
25 Inches
Product Length
21 5/8 Inches
Product Weight
172 Pounds
Shipping Weight
180 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
General Information
Type
Wireless Remote
Product Line
RedLINK
Programmable
Yes
Power Source
AA Batteries
Interface
Touchscreen
Dimensions
Display Size
3 29/48 Inches
Product Height
3 9/16 Inches
Product Width
5 13/16 Inches
Product Depth
1 1/2 Inches
Product Weight
2 Pounds
Shipping Width
7 Inches
Shipping Height
11 5/24 Inches
Shipping Depth
2 29/48 Inches
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
