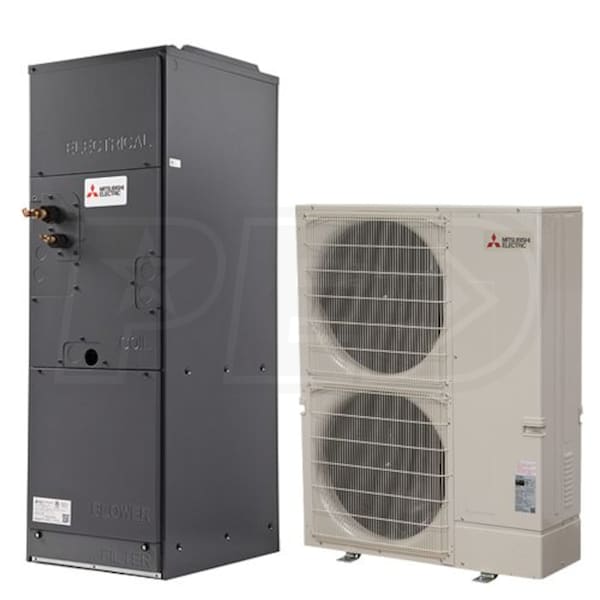

Mitsubishi - 30k BTU Cooling + Heating - P-Series H2i Multi-Position Air Handler Air Conditioning System - 18.0 SEER2

Model:

PVZ-HA30NKA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Mitsubishi - 30k BTU Cooling + Heating - P-Series H2i Multi-Position Air Handler Air Conditioning System - 18.0 SEER2
Mitsubishi - 30k BTU Cooling + Heating - P-Series H2i Multi-Position Air Handler Air Conditioning System - 18.0 SEER2
Model: PVZ-HA30NKA
Was $7,945.50
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the PVZ-A30NHA is a single zone heat pump air handler system designed to bring high-efficiency zoned temperature control to large homes and businesses in frigid climates. A multi-positional air handler, PVA-A30AA4, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. As a multi-positional unit, it is easy to install the indoor unit in nearly any setting. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical applications that require constant conditioning in a sub-freezing environment.
  • Precision Temperature Control Technology
  • The PUZ-HA30NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • H2i Technology
  • The PUZ-HA30NHA maintains heating operation with outdoor temperatures as low as -13° F. The PVZ-HA30NHA also features hot-start heat-pump technology to ensure that no cold air escapes during warm up.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Product Includes
    • (1) Mitsubishi - 30k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA30NKA)
    • (1) Mitsubishi - 30k BTU - P-Series Multi-Position Air Handler - Single Zone Only (PVA-A30AA7)
    Product Note
    This product requires the following accessories for installation:
    • Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 30k BTU - P-Series H2i Outdoor Condenser - Single Zone Only (PUZ-HA30NKA)
  • (1) Mitsubishi - 30k BTU - P-Series Multi-Position Air Handler - Single Zone Only (PVA-A30AA7)
PVZ-HA30NKA
specs product image PID-62915
General Information
Type
Ducted Vertical Air Handler
Product Line
P-Series H2i
Product Sub-line
Hyper-Heating
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Outdoor Unit Size
30000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Additional Model Numbers

PVZ-HA30NHA, PVZ-HA30NKA

Performance
Cooling BTU
30000
Cooling Capacity
28500 BTU
Heating Capacity
32000 BTU
Cooling Power Input
2280 Watts
Heating Power Input
2590 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
SEER2 Learn More
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
18.0
EER2 Learn More
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
13.0
HSPF2 Learn More
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
8.7
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
64 Pounds
Shipping Weight
68 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
211259274
PUZ-HA30NKA
General Information
Type
Outdoor Condenser
Product Line
P-Series H2i
Product Sub-line
Hyper-Heating
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating BTU
34000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
28 Amps
Recommended Breaker Size
30 Amps
Dimensions
Maximum Line Length
245 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
53 1/8 Inches
Product Width
37 3/8 Inches
Product Depth
14 Inches
Product Weight
261 Pounds
Shipping Weight
285 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PVA-A30AA7
General Information
Type
Ducted Vertical Air Handler
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating BTU
34000
Moisture Removal
5.4 Pints/Hour
Maximum Air Flow
875 CFM
Minimum Air Flow
613 CFM
Minimum Sound Level
30 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
54 1/4 Inches
Product Width
21 Inches
Product Depth
21 5/8 Inches
Product Weight
141 Pounds
Shipping Weight
151 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
