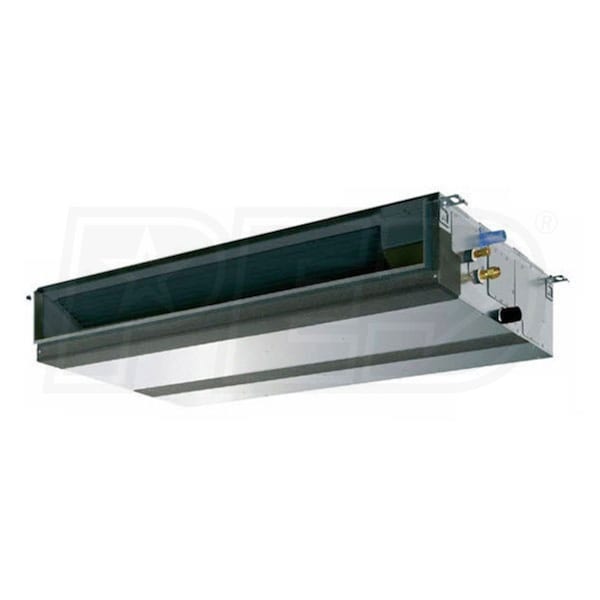

Mitsubishi PEAD-A30AA5
Mitsubishi PEAD-A30AA5
Hover to zoom
1 Of 5

Mitsubishi - 30k BTU - P-Series Concealed Duct Unit - For Single-Zone

Model:

PEAD-A30AA5

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Mitsubishi - 30k BTU - P-Series Concealed Duct Unit - For Single-Zone
Mitsubishi - 30k BTU - P-Series Concealed Duct Unit - For Single-Zone
Model: PEAD-A30AA5
Was $2,430.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.

Specifications

PEAD-A30AA5
specs product image PID-62528
General Information
Type
Concealed Duct
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Moisture Removal
8.6 Pints/Hour
Maximum Air Flow
883 CFM
Minimum Air Flow
618 CFM
Minimum Sound Level
30 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
9 7/8 Inches
Product Width
43 5/16 Inches
Product Depth
28 7/8 Inches
Product Weight
73 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
