Mitsubishi M-Series - Hyper-Heating - 18,000 BTU - Ductless Heat Pump System - Wall Mounted - 20.2 SEER - 10.3 HSPF

Model:

MZ-FE18NA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Mitsubishi M-Series - Hyper-Heating - 18,000 BTU - Ductless Heat Pump System - Wall Mounted - 20.2 SEER - 10.3 HSPF
Mitsubishi M-Series - Hyper-Heating - 18,000 BTU - Ductless Heat Pump System - Wall Mounted - 20.2 SEER - 10.3 HSPF
Model: MZ-FE18NA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. Part of Mitsubishi's hyper-heating product line, the MZ-FE18NA is a packaged single zone heat pump mini split system designed to bring high-efficiency zoned comfort to homes in frigid climates. The wall mounted indoor unit, MSZ-FE18NA, boasts a functional design, and operates at volumes as low as 32 dB. Thanks to the included mounting plate, it is easy to install on nearly any wall. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With an included wireless remote controller, this system is the perfect combination of convenience and comfort for any application in a sub-freezing environment.

    Product Features

    Precision Temperature Control Technology
    The MUZ-FE18NA outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, the output of the unit can be matched to the zone for precise temperature control and improved efficiency.

    H2i Technology
    Low or negative ambient temperatures don't bother the MUZ-FE18NA. It is rated for 100% heating capacity at 5 degrees F and 73% at -13 degrees F.

    Advanced Filtration System
    The MSZ-FE18NA uses two advanced filters to clean and deodorize the air that passes through it. The deodorizing filter utilizes a ceramic surface element and platinum nanoparticles to absorb any offending smells. The second filter is an enzyme-based anti-allergy filter that captures and destroys bacteria and particulates.

    Hot-Start
    Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.

    Powerful Mode
    The powerful setting on the MSZ-FE18NA makes it easy to get your zone to the perfect temperature quickly. When it is activated, the unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.

    Econo Cool Mode
    By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-FE18NA can improve the efficiency of cooling operations without compromising the comfort provided.

    Dehumidification
    When the indoor unit is run in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves your comfort and reduces the chance of mold growth and other property damage in the conditioned space.

    Vane Control
    Optimal air flow is easy to achieve with the MSZ-FE18NA thanks to two vane control options, standard and wide. These functions provide access to five different horizontal vane positions, six different vertical vane positions, two swing modes, a horizontal vane auto mode, and a vertical vane wide mode. Auto mode selects the best vane position based on operating mode and the swing modes cycle through all positions for maximum coverage. When wide mode is activated, fan speed increases beyond the current setting.

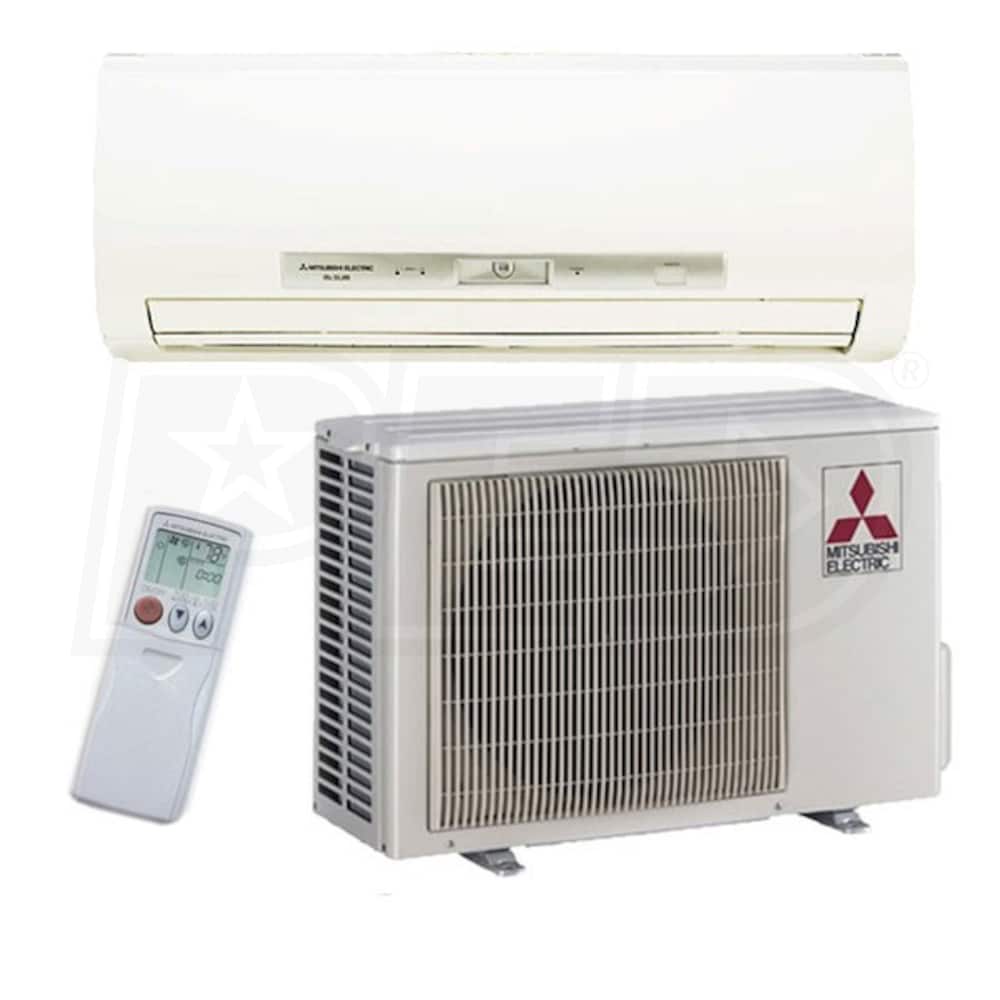

    Product Includes

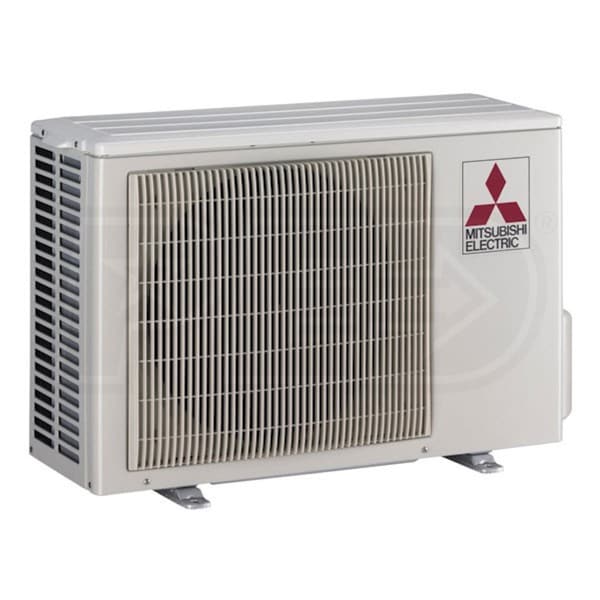

    • (1) Mitsubishi MUZ-FE18NA Mini Split Outdoor Condenser
    • (1) Mitsubishi MSZ-FE18NA Mini Split Indoor Unit
    • (1) Mitsubishi Handheld Wireless Remote Controller
    Product Note

    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - The outdoor mini split wall bracket is a simple and sturdy way to mount your outdoor condenser off of the ground.

    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.

    eComfort.com Note

    If you will be using your mini split in conditions where ambient temperatures are expected to be (1) below 32 degrees F for more than 72 continuous hours or (2) below 0 degrees F for more than 24 continuous hours, we advise the use of a drain pan heater to prevent your mini split from halting function due to icing. You can find the appropriate drain pan heater in the accessories tab above.

Specifications

Product Includes
  • (1) Mitsubishi M-Series - Hyper-Heating - 18,000 BTU - Mini Split Outdoor Condenser - Heat Pump (MUZ-FE18NA)
  • (1) Mitsubishi M-Series - Hyper-Heating - 18,000 BTU - Mini Split Indoor Unit - Wall Mounted - Heat Pump (MSZ-FE18NA)
MZ-FE18NA
specs product image PID-56103
General Information
Type
Wall Mounted
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
System Code
1800000000
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Heating Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20.2
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
14.2
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Cooling Power Input
1270 Watts
Heating Power Input
1540 Watts
Dimensions
Product Weight
156 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
4217888
MUZ-FE18NA
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
34 5/8 Inches
Product Width
36 1/4 Inches
Product Depth
13 Inches
Product Weight
119 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-FE18NA
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
2.7 Pints/Hour
Maximum Air Flow
738 CFM
Minimum Air Flow
388 CFM
Minimum Sound Level
32 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
12 13/16 Inches
Product Width
43 5/16 Inches
Product Depth
9 3/8 Inches
Product Weight
37 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
