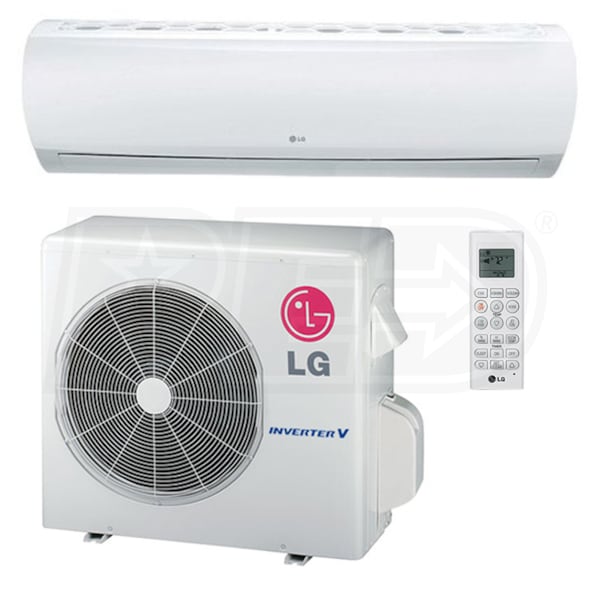

LG - 30k Cooling + Heating - Wall Mounted - Air Conditioning System - 19.0 SEER
Model:
LS303HLV
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Extended Pipe Capable
- These LG single zone systems feature advance technology for efficient operation and improved piping capability. This allows the systems to operate with a longer pipe length than standard single zone systems.
- Wi-Fi Enabled
- The LG indoor units come equipped with a built-in Wi-Fi adapter. This allows you to control your unit using LG's Smart AC App on almost any mobile device.
- Inverter Technology
- LG's ductless heat pump systems are designed with powerful, efficient inverter technology. An electronic expansion valve and a variable speed condenser carefully regulate the refrigerant flow and reduce energy consumption.
- Gold Fin Protection
- To ensure the reliability and longevity of the LS303HLV's heat exchanger, LG employs a Gold Fin coating that protects against corrosion and improves durability.
- Low Ambient Operations
- This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
- Quiet Design
- The LSN303HLV indoor unit features a cross flow fan that restricts the pressure of air flow and lowers sound levels. Both units enjoy reduced electrical and mechanical sound thanks to their brushless direct current fan motors.
- Air Flow Options
- This unit gives you three air flow options: automatic, swing mod, and Chaos Wind. In swing mode, the unit will rotate through all four air flow directions and with the Chaos Wind feature, it cycles both air flow direction and fan speed.
- Jet Temperature Control
- Getting your zones comfortable quickly is no problem with this system thanks to the Jet Heat and Jet Cool modes. With one button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
- Sleep Mode
- With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Dehumidify
- LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality
- The LSN303HLV indoor unit uses a dual filtration system to keep your air clean. A washable anti-fungal filter cleans out dust and bacteria. Additionally, a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.
- (1) LG - 30k BTU - Outdoor Condenser - For Single-Zone Only (LSU303HLV)
- (1) LG - 30k BTU - Wall Mounted Indoor Unit - For Single-Zone Only (LSN303HLV)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. This line of single zone ductless heat pump systems are designed to bring LG efficiency and power to homes with unique floor plans. A maximum pipe length of 164 sets the LS303HLV apart from other wall mounted systems. Lengthy refrigerant lines are the defining feature of this system, but they're hardly the only thing worth talking about. Automatic operation modes, dual filtration, and a 19.0 SEER rating mean that while the LS303HLV is designed for a specific application, it's a great addition for nearly any home.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) LG - 30k BTU - Outdoor Condenser - For Single-Zone Only (LSU303HLV)
- (1) LG - 30k BTU - Wall Mounted Indoor Unit - For Single-Zone Only (LSN303HLV)
LS303HLV
General Information
Type
Wall Mounted
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Heating Capacity
32000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
19.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.0
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.0
Cooling Power Input
3000 Watts
Heating Power Input
3100 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Recommended Breaker Size
25 Amps
Dimensions
Product Weight
165 Pounds
Shipping Weight
169 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
9910427
LSU303HLV
General Information
Type
Outdoor Condenser
Product Line
Extended Pipe
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
30000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
31 1/2 Inches
Product Width
34 1/4 Inches
Product Depth
12 5/8 Inches
Product Weight
125 Pounds
Shipping Weight
133 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LSN303HLV
General Information
Type
Wall Mounted
Product Line
Extended Pipe
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
30
Installation Location
Indoor
Performance
Cooling BTU
30000
Cooling Capacity
30000 BTU
Maximum Air Flow
953 CFM
Minimum Air Flow
530 CFM
Minimum Sound Level
37 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
13 5/8 Inches
Product Width
46 7/8 Inches
Product Depth
10 7/16 Inches
Product Weight
40 Pounds
Shipping Weight
46 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
