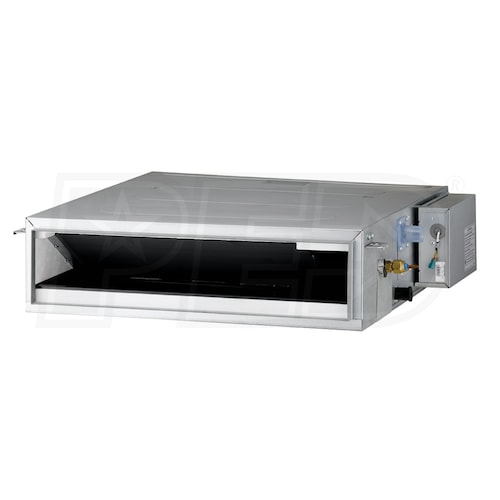

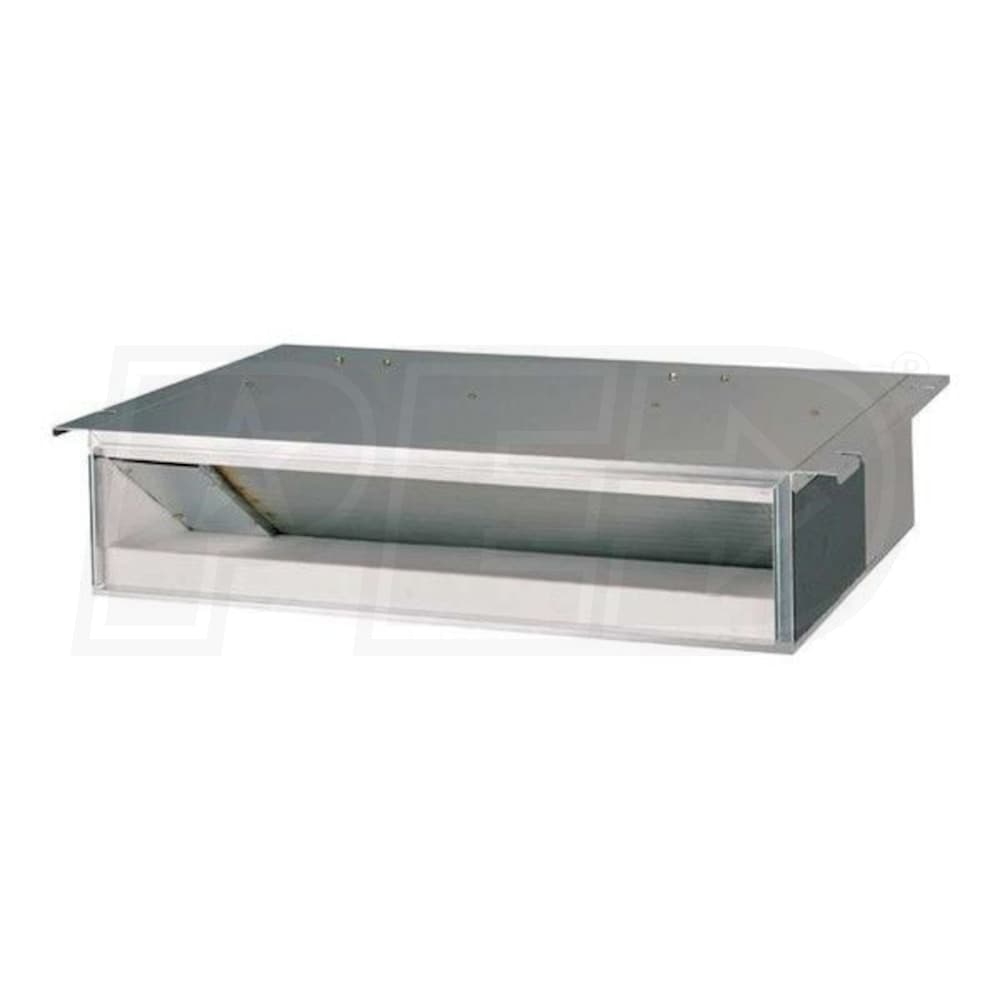

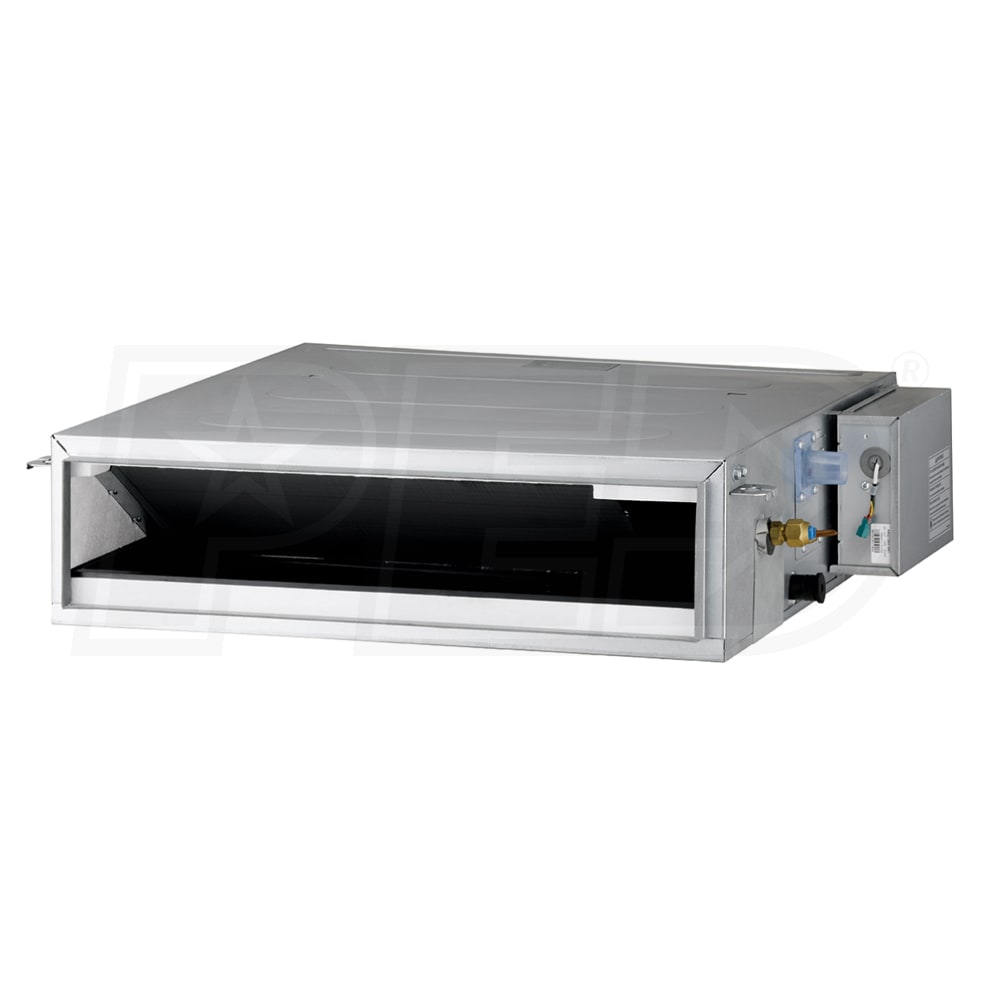

LG - 12k BTU - Low Static Concealed Duct Unit - For Multi or Single-Zone
Model:
LDN127HV4
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Quiet Design
- The LDN127HV4 can operate at volumes as low as 27 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
- Condensate Protection
- Condensate overflow can damage your indoor unit and your home. An internal condensate pump with 27.5" of lift protects the LDN127HV4 through reliable, effective condensate removal.
- Dehumidify
- LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Improved Air Quality
- The LDN127HV4 features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.
- Hot Start
- When the hot start function is enabled, the LDN127HV4's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Product Includes
- (1) LG LDN127HV4 Concealed Duct Mini Split Indoor Unit
- Product Compatible With
- LUU127HV4, LMU18CHV, LMU24CHV, LMU36CHV, LMU480HV, LMU540HV, LMU600HV
- Remote Control and Cable - A remote control (PREMTC00U recommended) and the PZCWRC1 remote control cable are required for each individual concealed duct unit in your system.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. The LDN127HV4 is a mini split indoor unit designed for installation is short-run ducting with low static pressures. Concealed duct indoor units mean that you can add mini split zones with no visible indoor units. With the LDN127HV4, a small air register is the only clue that a mini split is providing effective heating and cooling to your space.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
Specifications
LDN127HV4
Overview
Product Category
Mini Split System Components
UPC
048231380577
General Information
Type
Concealed Duct
Product Line
Multi F
Product Sub-line
Low-Static Ducted
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
353 CFM
Minimum Air Flow
247 CFM
Minimum Sound Level
27 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 23/48 Inches
Product Width
38 17/48 Inches
Product Depth
27 9/16 Inches
Product Weight
51 Pounds
Shipping Weight
60 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
