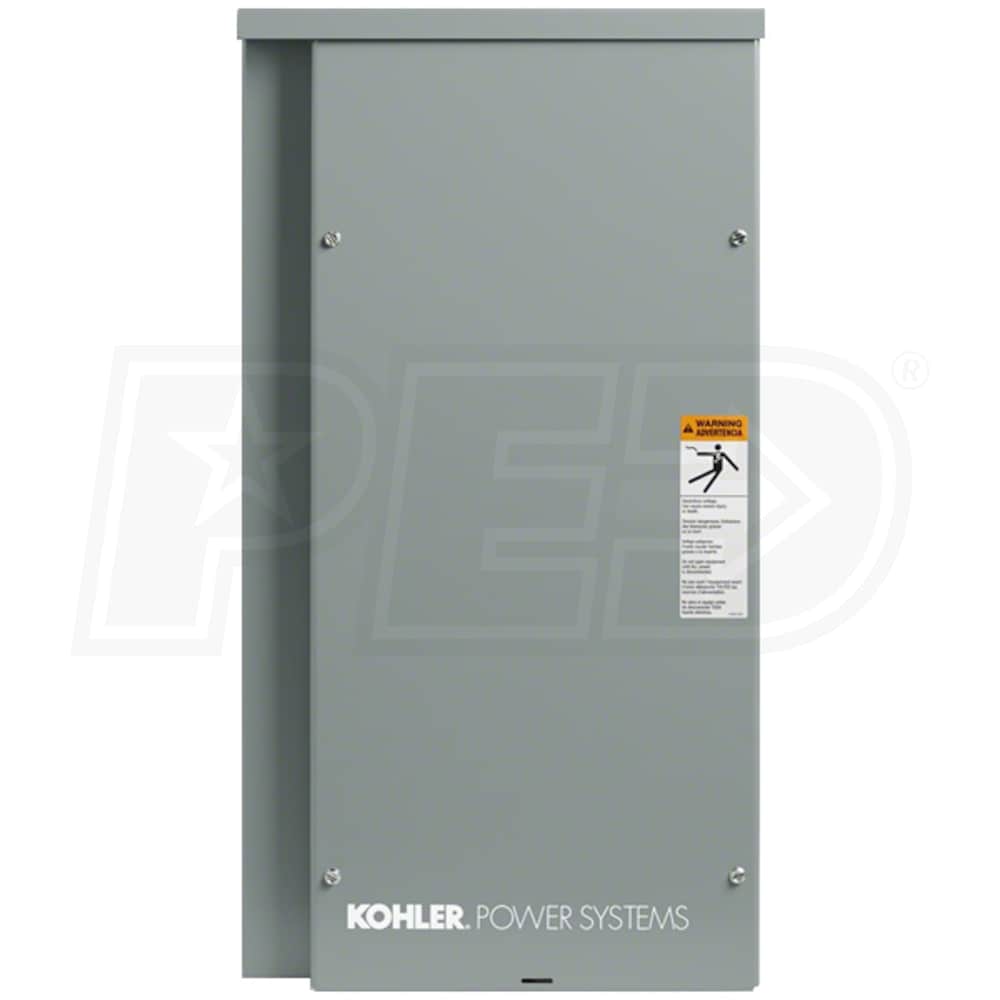

Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch

Model:

RDT-CFNC-0100A-QS7

Write A Review
$750.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Monday, Apr 29th
Shipping to60601
synchrony card logo
$125 / Month
Suggested monthly payments with 6 month financing.
Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch
Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch
Model: RDT-CFNC-0100A-QS7
$750.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RDT-CFNC-0100A-QS7
specs product image PID-2198
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
650531125071
Additional Model Numbers

RDT-CFNC-0100A, RDT-CFNC-0100A-QS7

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
