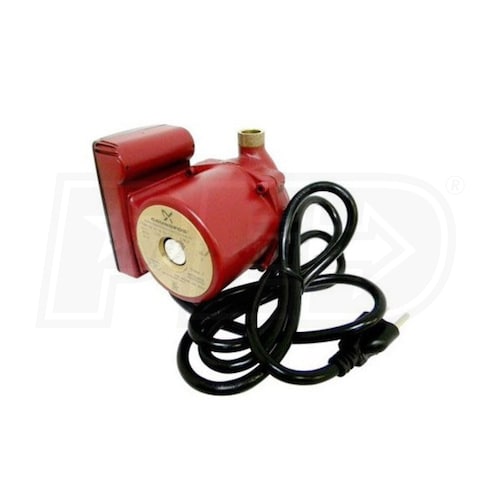

Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4" Sweat

Model:

59896229

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4
Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 3/4" Sweat
Model: 59896229
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-18B7/LC is a single speed circulator with a wet-rotor fluid movement design. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while a line cord electrical connection supplies power to the pump with a simple outlet.
  • Durable Bronze Construction
  • The Grundfos UP15-18B7/LC is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UP15-18B7/LC pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UP15-18B7/LC lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.

Specifications

59896229
specs product image PID-36781
Overview
Product Category
Boiler Accessories
UPC
05700393028111
General Information
Product Line
UP15-18
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Sweat
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
DHW Compatible Learn More
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
13.8 Feet
Maximum Flow Rate
14.5 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
0.04
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.74 Amps
Dimensions
Connection Size
3/4 Inch
Product Height
6 5/8 Inches
Product Width
5 7/48 Inches
Product Depth
6 3/8 Inches
Product Weight
7.21 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
