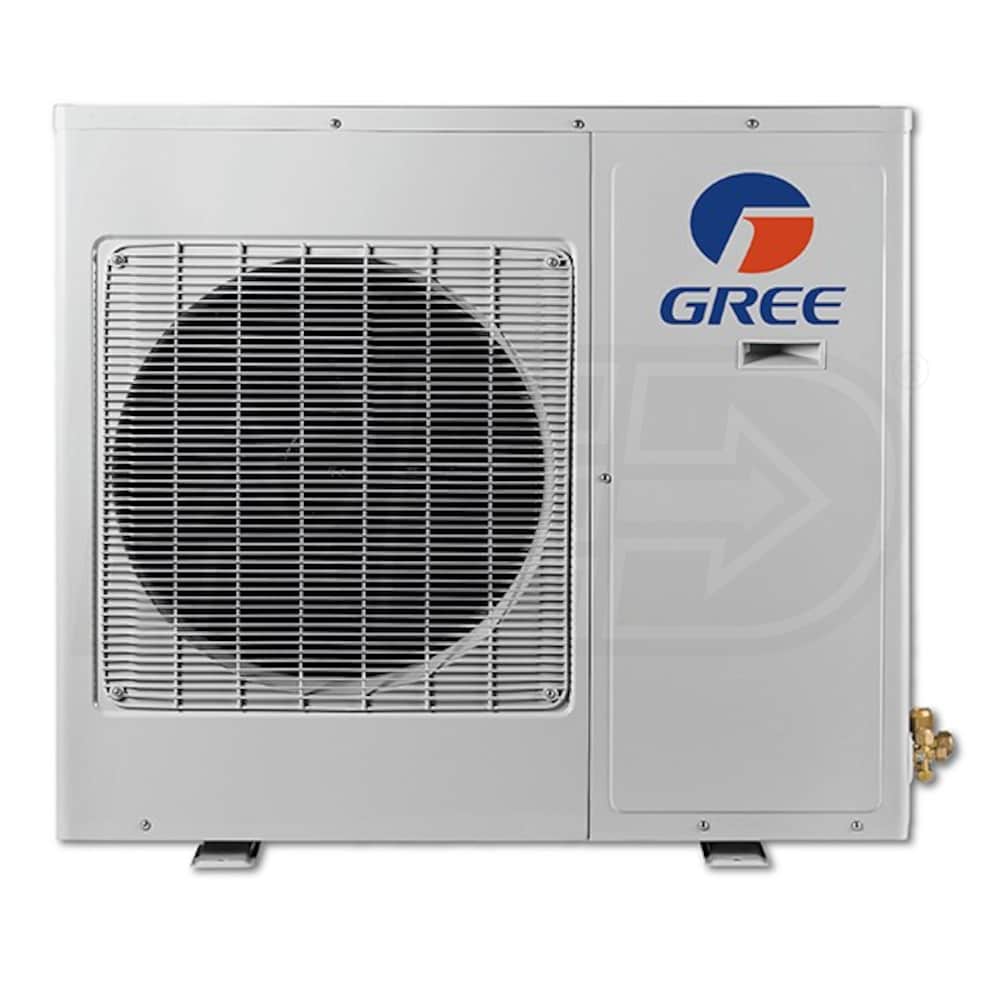

Gree - 9k BTU - Terra Outdoor Condenser - Single Zone Only

Model:

TERRA09HP230V1AO

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Gree - 9k BTU - Terra Outdoor Condenser - Single Zone Only
Gree - 9k BTU - Terra Outdoor Condenser - Single Zone Only
Model: TERRA09HP230V1AO
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Specifications

    TERRA09HP230V1AO
    specs product image PID-50542
    General Information
    Type
    Outdoor Condenser
    Product Line
    Terra
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
    Heating and Cooling
    Multi-Zone Compatible
    No
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    UPC
    852036004404
    Performance
    Cooling BTU
    9000
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
    49 dB
    Electrical Data
    Phase
    1
    Frequency
    60 Hz
    Recommended Breaker Size
    15 Amps
    Dimensions
    Maximum Line Length
    50 Feet
    Gas Connection Size
    1/2 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    23 1/2 Inches
    Product Width
    35 19/48 Inches
    Product Depth
    14 43/48 Inches
    Product Weight
    86 Pounds
    Shipping Width
    37 7/24 Inches
    Shipping Height
    25 19/48 Inches
    Shipping Depth
    16 1/2 Inches
    Shipping Weight
    90 Pounds
    Certifications
    ETL Listed
    Yes
    Energy Star Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
