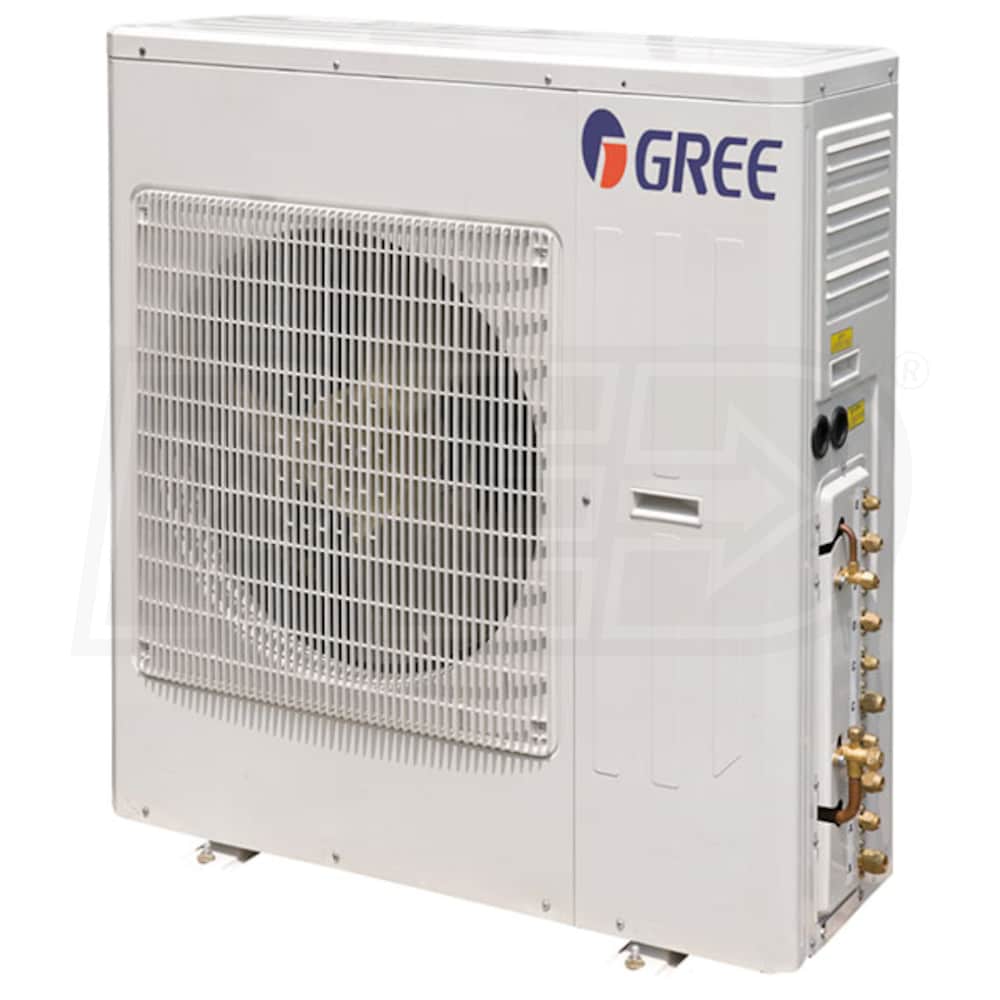

Gree MULTI42HP230V1BO
Gree MULTI42HP230V1BO
Hover to zoom
1 Of 5

Gree - 42k BTU - Outdoor Condenser - For 2-5 Zones

Model:

MULTI42HP230V1BO

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Gree - 42k BTU - Outdoor Condenser - For 2-5 Zones
Gree - 42k BTU - Outdoor Condenser - For 2-5 Zones
Model: MULTI42HP230V1BO
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    This product requires a compatible indoor unit for functionality.

    Gree is the world's largest air conditioner manufacturer, selling more than 100 million units in over 100 countries since 1991. The MULTI42HP230V1BO model is a heat pump mini split outdoor condenser. This condenser includes Gree's G10 technology which saves energy, reduces outdoor noise & keeps room temperature steady by eliminating the harsh starts and stops of conventional systems.

    Product Features

    Intelligent Defrost
    Intelligent Defrost function increases room comfort and saves energy by eliminating unnecessary defrost cycles. The control system monitors the outdoor coil for frost buildup.

    Time Guard
    The Time Guard function prevents rapid cycling of the compressor. A protective three-minute time delay restricts compressor restarts after shutoff.

    Gold Fin Condenser
    The corosion-resistant coating is made with a gold-colored anti-corrosion epoxy. This maintains excellent heat transfer properties while extending coil life against damage from salt water.

    Low Voltage Start Up
    The Gree Multi Zone units will operate from 170V to 265V which is suitable for unstable power supply areas.

    Product Compatibility
    • Gree DUCT Series Concealed Duct Mini Split Indoor Unit
    • Gree FLR Series Floor Standing / Ceiling Suspended Mini Split Indoor Unit
    • Gree CONS Series Floor Mounted Mini Split Indoor Unit
    • Gree CAS Series Ceiling Casette Mini Split Indoor Unit
    • Gree TERRA, Crown, and Vireo Wall Mounted Mini Split Indoor Unit
    Product Note

    The outdoor unit includes the following lineset adapters that may be necessary for multi-zone installation:

    • 3/8" to 5/8" (Qty 3)
    • 3/8" to 1/2" (Qty 4)
    • 1/4" to 3/8" (Qty 2)

    This product requires at least two compatible Gree mini split indoor units and the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.

    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications

MULTI42HP230V1BO
specs product image PID-62323
General Information
Type
Outdoor Condenser
Product Line
Multi 21
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
5
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
UPC
813919020294
Performance
Cooling BTU
42000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
61 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
246 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Line Set E Liquid Connection
1/4 Inch
Line Set E Gas Connection
3/8 Inch
Product Height
43 19/48 Inches
Product Width
42 19/24 Inches
Product Depth
14 7/24 Inches
Product Weight
198 Pounds
Shipping Weight
216 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
