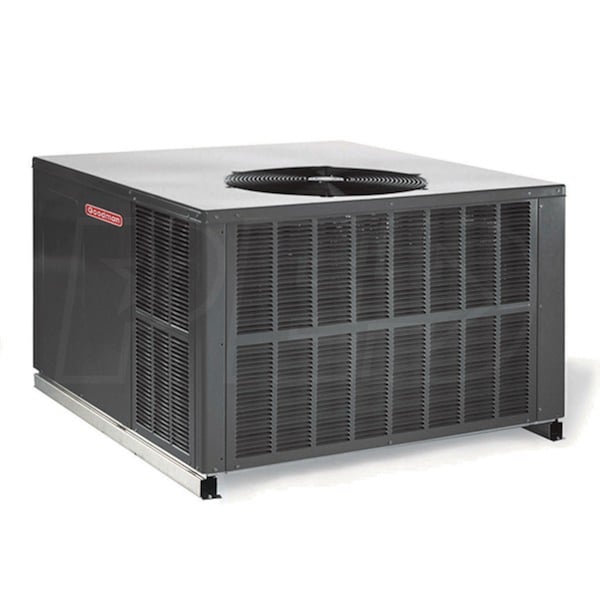

Goodman GPH13M - 3 Ton - Packaged Heat Pump System - 13 SEER - 7.7 HSPF - Downflow/Horizontal - 208-230/1/60

Model:

GPH1336M41

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GPH13M - 3 Ton - Packaged Heat Pump System - 13 SEER - 7.7 HSPF - Downflow/Horizontal - 208-230/1/60
Goodman GPH13M - 3 Ton - Packaged Heat Pump System - 13 SEER - 7.7 HSPF - Downflow/Horizontal - 208-230/1/60
Model: GPH1336M41
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential application. The GPH13M combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling from a single unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home. The GPH1336M41 can be used in either downflow or horizontal airflow applications. It even features convenient access panels that make installation and maintenance a breeze. Streamline your comfort today with this Goodman packaged unit.

    Product Features

    High-Efficiency Coils
    The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer

    Secure Design
    The cabinet of the GPH1336M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.

    Filter Drier
    A biflow filter drier is installed in the liquid line of this packaged unit's heat pump. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.

    Quiet Comfort
    A sound insulated blower compartment means that the GPH1336M41 provides year-round comfort without disrupting your home.

    Scroll Compressor
    This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.

    EEM Blower
    PSC blower motors are energy hogs. The EEM motor in the GPH1336M41 consumes less electricity, ensuring energy-efficient circulation.

    Compressor Protection
    Goodman installed a suction accumulator that collects excess liquid refrigerant in their GPG13M packaged units. This prevents refrigerant from flooding and damaging the compressor during operation.

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GPH1336M41
specs product image PID-26275
General Information
Type
Heat Pump Packaged Unit
Product Line
GPH13M
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling & Heating
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Not Compliant
Installation Available
No
UPC
663051523784
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Nominal Cooling Capacity
34600 BTU
Heating BTU
34600
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
7.7
Maximum Air Flow
1248 CFM
Minimum Air Flow
554 CFM
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
81.3 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.3 Amps
Recommended Breaker Size
40 Amps
Dimensions
Product Height
34 3/4 Inches
Product Width
47 Inches
Product Depth
51 Inches
Shipping Weight
400 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
