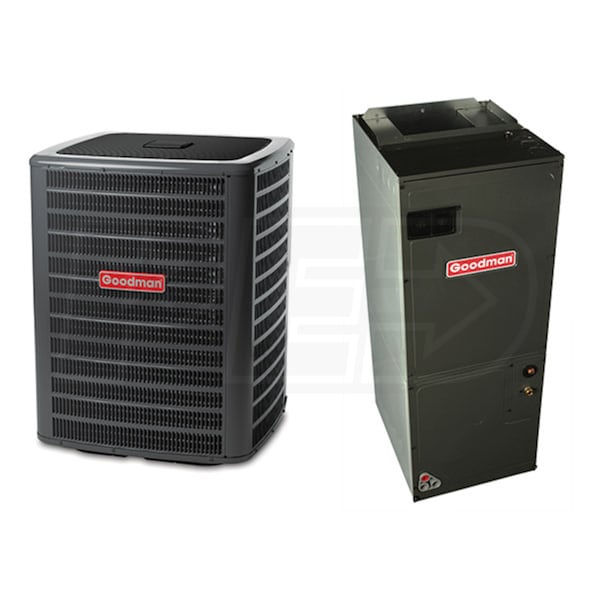

Goodman - 3.5 Ton Cooling - Air Conditioner & Air Handler System - 14.0 SEER - Multi-Position
Model:
GAC140042000M-C
+
Share This Product
Features
- (1) Goodman GSX140431 Air Conditioner
- (1) Goodman ASPT59C14 Air Handler
- The manufacturer model number(s): Goodman GSX140431 ASPT59C14
- AHRI Reference Number: 8242070 * *May change based on the Manufacturer revision
A Goodman high efficiency central air package is the perfect way to upgrade your home's HVAC system. This pack contains a GSX14 air conditioner and an ASPT air handler. Each of these components enjoy the impressive durability and easy accessibility for which Goodman is famous, but their energy efficiency is the real selling point. State-of-the-art design and technology make the GAC140024000M-C an excellent addition to nearly any household looking to reduce their energy spending.
Product Features
Advanced Coil Design
The coils of the GSX140431 and ASPT59C14 feature aluminum fins and grooved tubing. This design maximizes surface area and optimizes heat transfer for efficient comfort.
High-Efficiency Compressor
The GSX14 air conditioner utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
Energy-Efficient Circulation
PSC blower motors are energy hogs. The EEM motor in the ASPT59C14 provides more efficient, more intelligent airflow for your home.
Quiet Comfort
Goodman takes great pride in providing comfort that doesn't disrupt your home. The GSX140431 features a three-bladed condenser fan, wire fan discharge grille, and louvered top, all designed to reduce noise levels without compromising performance.
Dehumidification
Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
SmartFrame
This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
Secure Cabinet
Both components in this system possess a durable cabinet designed to improve the longevity of the system. Additionally, the ASPT59C14's cabinet is reinforced to prevent air and sound leakage.
Product Includes
Product Note
The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help. NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman GSX14 - 3.5 Ton - Air Conditioner - 14 Nominal SEER - Single-Stage - R-410A Refrigerant (GSX140431)
- (1) Goodman ASPT - 5 Ton - Air Handler - Multi-Position - ECM Motor (ASPT59C14)
GAC140042000M-C
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling Capacity
38000 BTU
Nominal Cooling Capacity
42000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.2
Maximum Air Flow
1260 CFM
Dimensions
Product Weight
333 Pounds
Shipping Weight
351 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201384061
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
GSX140431
General Information
Type
Condenser
Product Line
GSX14
Product Category
Air Conditioning Condensers
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
Cooling Capacity
42000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.2
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
73 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
22 Amps
Recommended Breaker Size
35 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
36 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
189 Pounds
Shipping Weight
207 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
ASPT59C14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Maximum Air Flow
1940 CFM
Minimum Air Flow
1370 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
109 Pounds
Shipping Weight
144 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Overview
Product Category
Air Handler
