Goodman ARUF37C14
Goodman ARUF37C14
Hover to zoom
1 Of 5

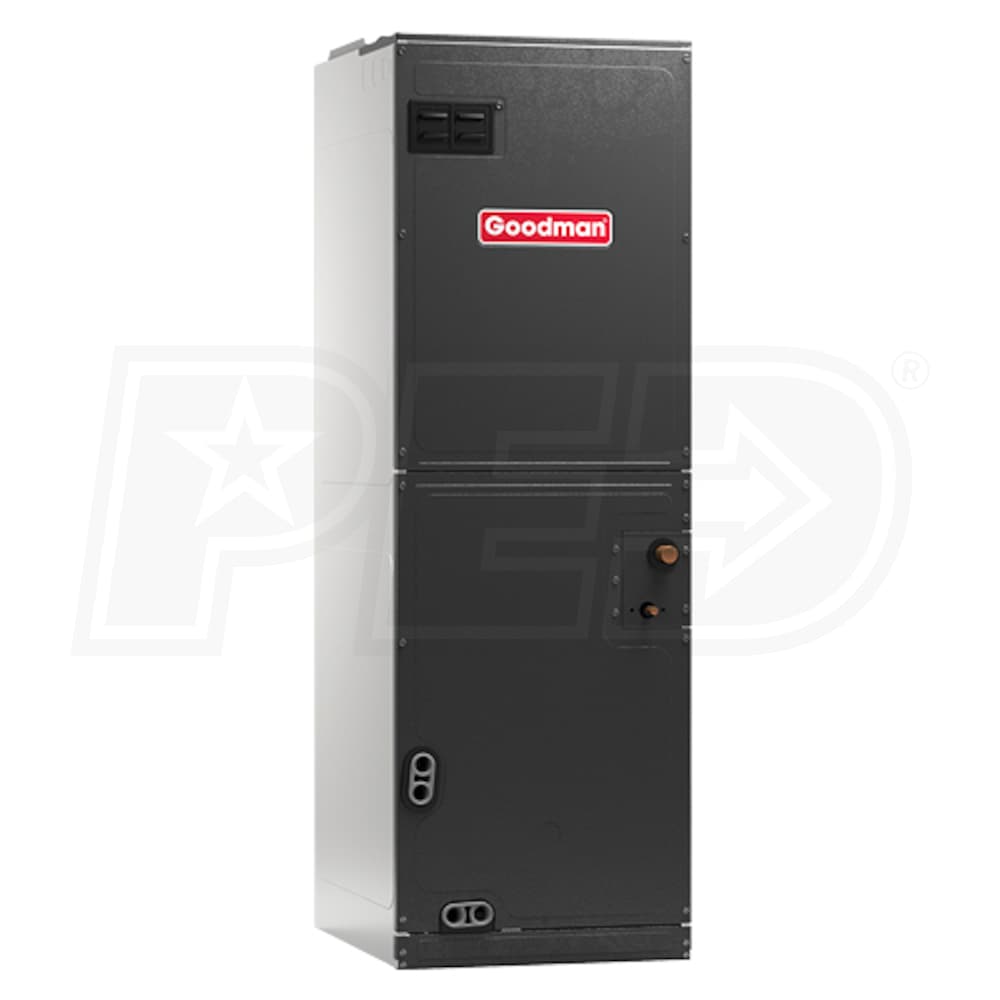

Goodman ARUF - 3 Ton - Air Handler - Multi-Position - PSC Motor

Model:

ARUF37C14

Write A Review
Discontinued
Try this product instead
Goodman ARUF - 3 Ton - Air Handler - Multi-Position - PSC Motor
Goodman ARUF - 3 Ton - Air Handler - Multi-Position - PSC Motor
Model: ARUF37C14
Not For Individual Sale
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Overview for Goodman ARUF37C14 Air Conditioner Air Handler

    The Goodman ARUF37C14 Air Conditioner Air Handler features a check flowrater expansion device. The Goodman ARUF37C14 Air Conditioner Air Handler is housed in a rust-resistant, fully insulated steel cabinet with painted front panels. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

    The Goodman ARUF ARUF37C14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ARUF37C14 is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame™
  • The ARUF features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Condensate Management
  • The ARUF's design includes molded diverters, foil-faced insulation, and screw-less construction that help prevent the formation of condensation. A thermoplastic drain pan is included to handle any condensate that does form.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ARUF37C14
specs product image PID-58561
Overview
Product Category
Air Handler
UPC
663051566705
General Information
Type
Air Handler
Product Line
ARUF
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Maximum Air Flow
1625 CFM
Minimum Air Flow
1120 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
21 Inches
Product Height
53 7/16 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
130 Pounds
Shipping Weight
145 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
