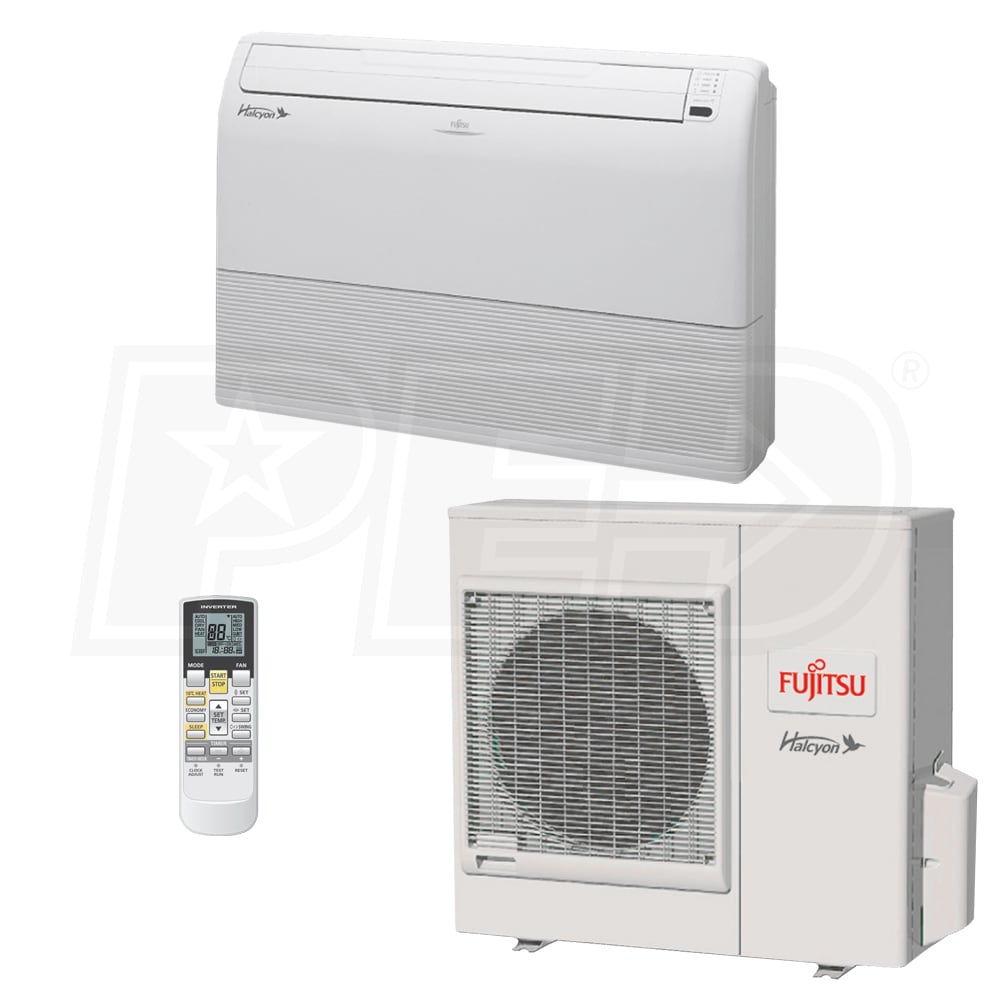

Fujitsu - 18k BTU Cooling + Heating - Universal Floor/Ceiling Air Conditioning System - 16.0 SEER

Model:

18RULX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Fujitsu - 18k BTU Cooling + Heating - Universal Floor/Ceiling Air Conditioning System - 16.0 SEER
Fujitsu - 18k BTU Cooling + Heating - Universal Floor/Ceiling Air Conditioning System - 16.0 SEER
Model: 18RULX
Was $2,905.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the 18RULX universal mount mini split system. If you are looking to provide heating and cooling for an individual space, or supplement existing heating and air conditioning equipment, the 18RULX mini split system is a reliable and efficient choice. The universal mount indoor unit can be installed as a floor mount or a ceiling suspended unit, making it a perfect fit for a variety of applications where space is a concern. This system has an array of effective operating modes that allow you to customize operations to suit your comfort. The Fujitsu 18RULX is a great addition to any home or business.
  • Inverter Technology
  • The 18RULX outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
  • Dehumidify and Cool
  • Dry Mode demonstrates the ABU18RULX's versatility. In addition to providing moderate cooling, dry mode also dehumidifies your zone.
  • Airflow Control
  • The airflow direction of this indoor unit may be set to swing automatically between its seven vertical positions and five horizontal positions. This disperses the hot or cold air evenly across your zone, resulting in consistent in heating and cooling.
  • Intelligent Temperature Calculation
  • High ceiling mode considers the fact that rooms with raised ceilings heat differently than traditionally sized rooms. The ABU18RULX may be set to account for the height of the ceiling in which it is installed when making temperature calculations.
  • Fresh Air Intake
  • The indoor unit included with this system supports additional ductwork to bring air from outside into your system. Instead of just recycling air, the ABU18RULX can also introduce fresh air into your home or business.
  • Product Includes
    • (1) Fujitsu - 18k BTU - RLX Outdoor Condenser - Single Zone Only (AOU18RLX)
    • (1) Fujitsu - 18k BTU - Universal Mount Unit - Single Zone Only (ABU18RULX)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Fujitsu - 18k BTU - RLX Outdoor Condenser - Single Zone Only (AOU18RLX)
  • (1) Fujitsu - 18k BTU - Universal Mount Unit - Single Zone Only (ABU18RULX)
18RULX
specs product image PID-65770
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Ceiling Suspended
Product Line
Halcyon RULX
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Outdoor Unit Size
18000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling BTU
18000
Cooling Capacity
17800 BTU
Heating Capacity
21500 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.9
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.5
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
0 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
203 Pounds
Shipping Weight
207 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
883706
AOU18RLX
General Information
Type
Outdoor Condenser
Product Line
RLX
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
53 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
165 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
32 3/4 Inches
Product Width
35 1/2 Inches
Product Depth
15 3/4 Inches
Product Weight
141 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Compressor Warranty
6 Years

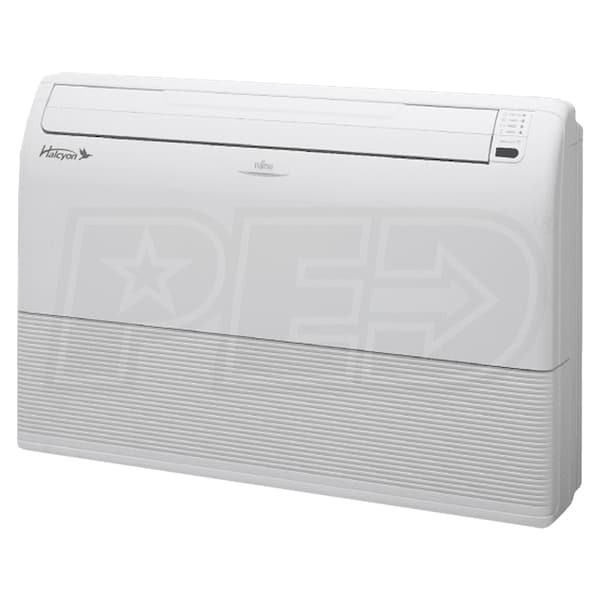

ABU18RULX
General Information
Type
Ceiling Suspended
Product Line
RULX
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
459 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
25 7/8 Inches
Product Width
39 1/8 Inches
Product Depth
7 7/8 Inches
Product Weight
62 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
