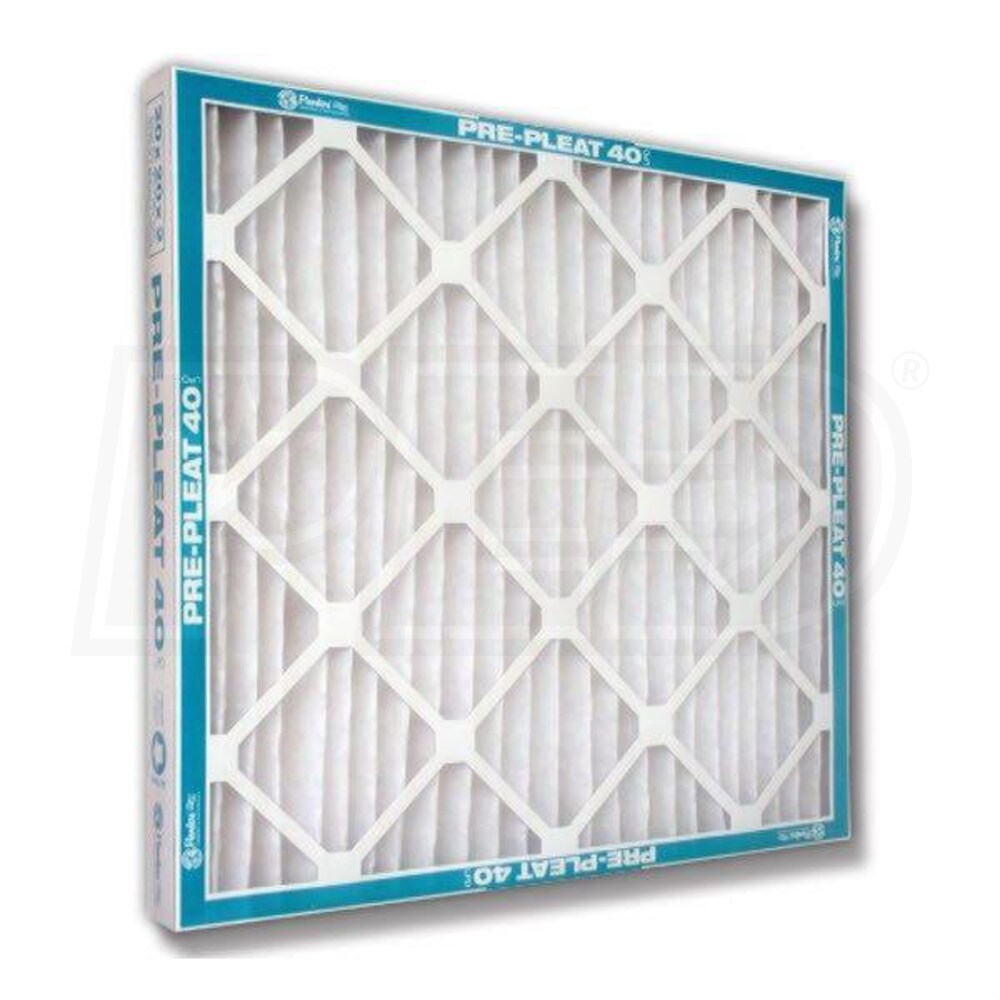

Flanders 80055.041625 Pre Pleat 40 LPD - 16'' x 25'' x 4'' - Standard Capacity Pleated Filters - MERV 8 - Qty. 6

Click Image to Enlarge
Product Specifications
General Information
Product Line
Pre Pleat 40 LPD
Synthetic Media
Box Quantity
Filter Efficiency (MERV)
Nominal Height (Inches)
16 Inches
Nominal Width (Inches)
25 Inches
Nominal Depth (Inches)
4 Inches
Product Weight (Pounds)
9.6 Pounds
Actual Height (Inches)
15.5 Inches
Actual Width (Inches)
24.5 Inches
Actual Depth (Inches)
3.75 Inches
Country of Origin
United States
Model: 80055.041625
Factory Direct:
Allow 3 - 4 Weeks
Tax Free
Except IL
  • Features
  • Q&A
  • 1
  • Articles
  • Shipping
  • Manuals

The Flanders Pre Pleat 40 LPD Series 80055.041625 Standard Capacity Pleated Filter is designed from recyclable materials to create an efficient and moisture-resistant filter to be used in a variety of applications including heating, air conditioning, and ventilation. These 16" x 25'' x 4" pleated filters are constructed with a MERV 8 rated synthetic media. The Pre Pleat 40 LPD filter is suitable for variable air systems from 0 to 500 FPM. It is designed with a low pressure drop and a high dust holding capacity to lengthen service life. The filters are UL 900 listed for flame resistance. Due to their pleated design, these filters will not collapse, warp, or bend in normal service. Pre Pleat 40 filters can be installed in PF-1 Holding Frames, K-Trac Framing Modules, Surepleat Side Access Housings, and similar hardware. They may be used as pre-filters for Precision Pak, Super Flow V, PrecisionCell, and Rigid Air filters.

Product Features

Pleated Shape
With a pleated shape, filters resist collapsing, warping, or bending in normal service.

High Dust Holding Capacity
A high dust holding capacity extends the service life of your filter by allowing it to retain high quantities of dust before replacement.

Low Pressure Drop
As air travels through the media, the loss of air pressure is limited.

95-98% Arrestance
The filter removes 95-98% of synthetic dust from the airstream.

30-40% Efficiency
The filter removes 30-40% of particulate matter and gaseous material from the airstream.

Product Compatible with
  • PF-1 Holding Frames
  • K-Trac Framing Modules
  • Surepleat Side Access Housings
