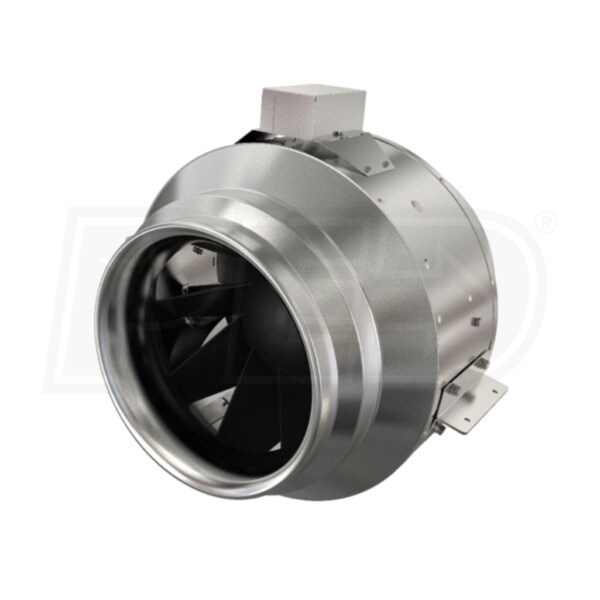

Fantech FKD - 2,443 CFM - Inline Duct Fan - 14" Duct - 115V

Model:

FKD14XLEC

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Fantech FKD - 2,443 CFM - Inline Duct Fan - 14
Fantech FKD - 2,443 CFM - Inline Duct Fan - 14" Duct - 115V
Model: FKD14XLEC
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Featuring a galvanized steel housing, the Fantech FKD14XLEC Mixed Flow Inline Duct Fan is a direct drive, mixed flow centrifugal duct fan designed especially for supply and exhaust applications where quiet performance and easy installation are important. Inline fans are installed directly in your duct work to provide powerful ventilation. This 115 volt model can produce a maximum airflow of up to 2,443 CFM. The FKD14XLEC is constructed with a 14" round duct. Fan motors come with permanently lubricated sealed ball bearings. FKD Series Inline Fans are suitable for airstreams up to 140 degrees Fahrenheit.
  • Mixed Flow Centrifugal Fan
  • Mixed flow centrifugal fans combine the high air flows of axial fans with the high pressure, non-overloading characteristics of backward curved impellers.
  • Prewired Fan
  • For your convenience, this fan is pre-wired and ready to install out of the box.
  • 100% Speed Controllable
  • On-demand ventilation and precision balancing of systems is controllable through voltage reduction. The EC fans are controlled with a 0-10VDc signal.
  • Efficient EC Motor
  • The high Efficiency EC motor allows for less power consumption and reduced costs all around.
  • Thermal Overload Protection
  • Thermal overload protection automatically resets the fan when temperatures get too high, avoiding potential damage to the unit due to overheating.

Specifications

FKD14XLEC
specs product image PID-62610
Overview
Product Category
Fans
UPC
650737449377
Additional Model Numbers

FKD14XLEC, FKD14XLEC

General Information
Type
Duct Fan
Product Line
FKD
Product Category
Fans
Mount Type
Inline
Housing Material
Galvanized Steel
Performance
Maximum Air Flow
2443 CFM
Electrical Data
Voltage
115 Volts
Power Consumption
406 Watts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
14 Inches
Product Height
19 3/4 Inches
Product Width
20 1/4 Inches
Product Weight
41 Pounds
Shipping Width
22 Inches
Shipping Height
25 Inches
Shipping Depth
21 Inches
Shipping Weight
51 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
