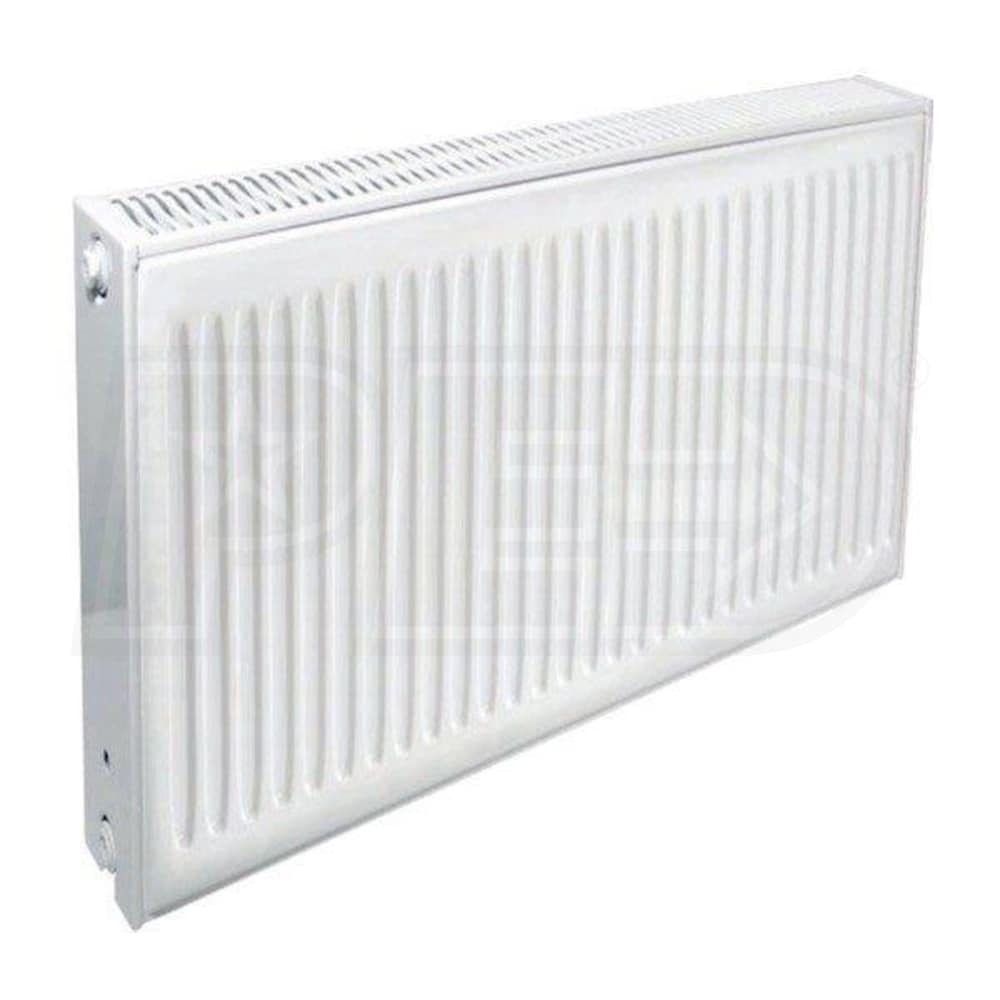

The Ecostyle line features a wide array of sizes and heat outputs to meet whatever heating needs you may have. This radiator, the B-12.16 ECO, measures 12" tall by 16" wide, features a beautiful Italian design, and provides both radiant and convective heat for maximum efficiency and minimal cold spots. The Ecostyle B-12.16 ECO has an enamel finish over steel to ensure that it will stay beautiful for years. Not only is it easy to install and sub-zone, but its flow-regulating valve allows for individual radiator control.
Perfect For Any System
You'll find that the B-12.16 ECO is an excellent addition to any system. Ecostyle radiators are compatible with low and high water temperature systems and feature a flow-regulating valve which affords you individual control over each unit.
The Ecostyle B-12.16 ECO contains less water than traditional cast iron radiators. This allows the B-12.16 ECO to begin delivering heat more quickly. The large convector plates make sure this heat is radiated in an efficient manner. It also has double panels, which give you more heat and more flexibility.
Possessing a nominal capacity of 1,705 BTU with a boiler supply temperature of 180 degrees Fahrenheit, the B-12.16 ECO produces both convective heat and radiant heat. Radiant heat makes your room comfortable more quickly by heating the people and objects in the room, not just the air.
The Ecostyle B-12.16 ECO utilizes clamp mounting brackets, which are included with the product. This means that you can install and remove it easily.
Attractive and Durable
The B-12.16 ECO is an attractive addition to your home. It has a minimal profile and an enamel finish to discourage scratches and corrosion.
Flexible Connection Options
Ecostyle Radiators have six 1/2" connections. This means that you have a plethora of connection options available with the B-12.16 ECO. The Ecostyle B-12.16 ECO supports the following connection configurations: bottom right hand, bottom left hand, same end, and opposite ends. Same end and opposite ends connections require external supply and return valves. If you do not use the bottom connections then you must plug them.
- (2) Clamp Brackets
- (1) Flow Regulating Valve Insert
- (1) Air Vent
- (2) Installed Blind Plugs
Ecostyle radiators do not come with the fittings necessary for installation. These fittings are sold separately and differ depending on the installation requirements. See our Ecostyle Radiator Buying Guide for details on available fittings for your application.
