Daikin - 9k BTU Cooling + Heating - LV-Series Concealed Duct Air Conditioning System - 15.1 SEER

Model:

DXS09LVJU

Write A Review
$1,926.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
synchrony card logo
$321 / Month
Suggested monthly payments with 6 month financing.
Daikin - 9k BTU Cooling + Heating - LV-Series Concealed Duct Air Conditioning System - 15.1 SEER
Daikin - 9k BTU Cooling + Heating - LV-Series Concealed Duct Air Conditioning System - 15.1 SEER
Model: DXS09LVJU
$1,926.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Daikin has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their mini splits are no exception. The LV series of split systems packs a wide variety of premium features into a convenient, effective ductless system package. The concealed duct type of indoor unit allows the indoor unit to be hid behind a wall or other building feature, and an advanced filtration system ensures air quality within your home during all stages of operation. Unique circuitry design eliminates standby energy usage by up to 90 percent when compared to other mini split brands, and the included remote means you don't even have to get up from your chair to deliver comfort to your home.
  • Inverter Technology Prevents Temperature Fluctuation
  • Daikin's inverter technology works together with the expansion valve to adjust coolant flow rate and compressor speed to match indoor conditions. This results in less dramatic indoor temperature swings, which in turn results in a more comfortable home.
  • Built-In Advanced Filtration System
  • The LV series of mini splits from Daikin comes with a built-in photocatalytic air filtration system. This system first traps bacteria, viruses, and other microscopic particles, then decomposes them, rendering them harmless to your family.
  • Whisper Quiet Operation
  • Daikin ductless units are engineered from the ground up for impressively quiet operation. The solidness of the unit's construction works together with quiet motor operation to make the unit as unobtrusive as possible to its surrounding environment.
  • Included Wireless Control
  • The included wireless control allows you to control the temperature of your room while never leaving the comfort of your favorite recliner.

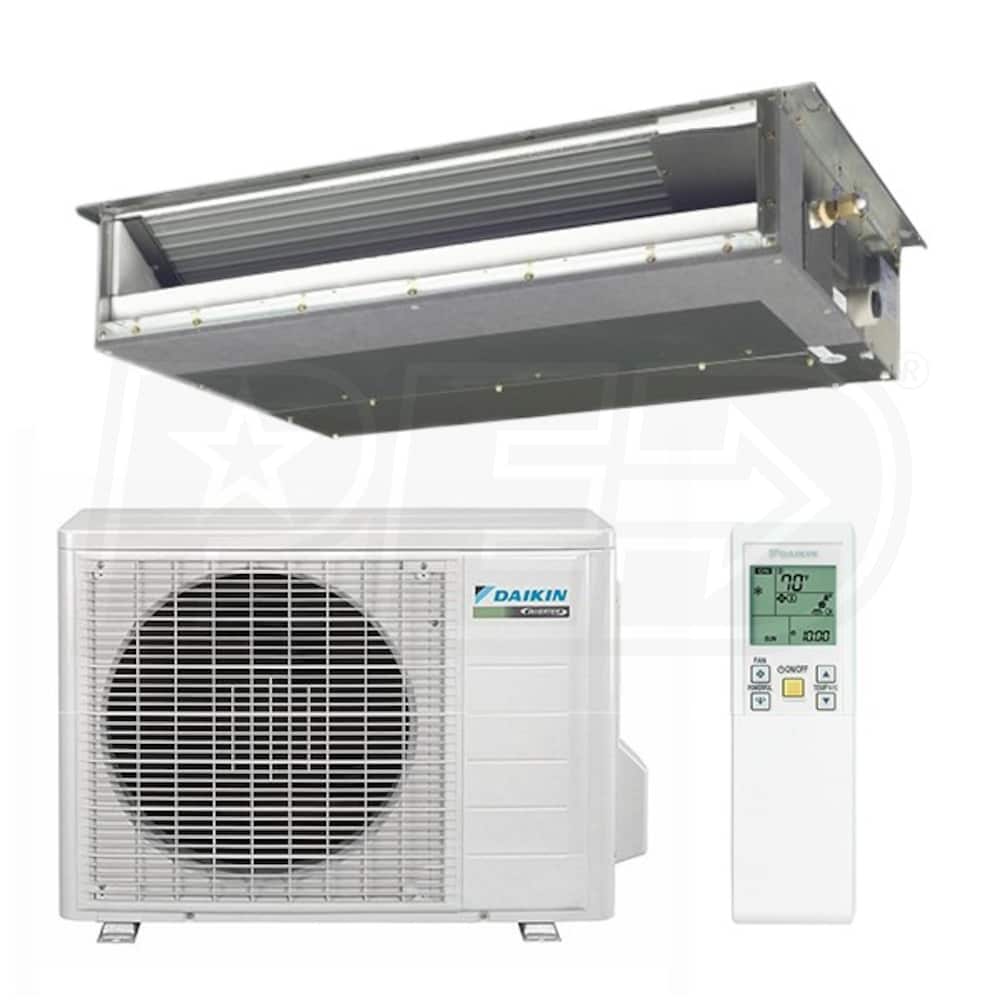

  • Product Includes
  • (1) RXS09LVJU Outdoor Condenser Unit
  • (1) FDXS09LVJU Concealed Duct Indoor Unit
  • (1) Wireless Remote Controller
  • Product Includes
    • (1) Daikin - 9k BTU - LV Series Outdoor Condenser - Single Zone Only (RXS09LVJU)
    • (1) Daikin 9k BTU - Multi or Single Zone Concealed Duct (FDXS09LVJU)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit.
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Daikin - 9k BTU - LV Series Outdoor Condenser - Single Zone Only (RXS09LVJU)
  • (1) Daikin 9k BTU - Multi or Single Zone Concealed Duct (FDXS09LVJU)
DXS09LVJU
specs product image PID-56785
Overview
Product Category
Mini Split Heat Pump System
General Information
Type
Concealed Duct
Product Line
LV-Series
Product Category
Mini Split Heat Pump System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
8500 BTU
Heating Capacity
10000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.1
HSPF Learn More
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.3
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
139 Pounds
Shipping Weight
143 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
RXS09LVJU
General Information
Type
Outdoor Condenser
Product Line
LV-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
50 F
Electrical Data
Voltage
230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/8 Inches
Product Width
30 1/8 Inches
Product Depth
11 1/4 Inches
Shipping Weight
75 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
FDXS09LVJU
General Information
Type
Concealed Duct
Product Line
MXS
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Performance
Cooling BTU
9000
Cooling Power Input
72 Watts
Maximum Air Flow
305 CFM
Minimum Air Flow
235 CFM
Heating Power Input
72 Watts
Minimum Sound Level
31 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
35 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Condensate Drain Size
1 1/24 Inches
Product Height
7 7/8 Inches
Product Width
27 9/16 Inches
Product Depth
24 7/16 Inches
Product Weight
64 Pounds
Shipping Weight
74 Pounds
Certifications
Country of Origin
Japan
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Mini Split System Components
