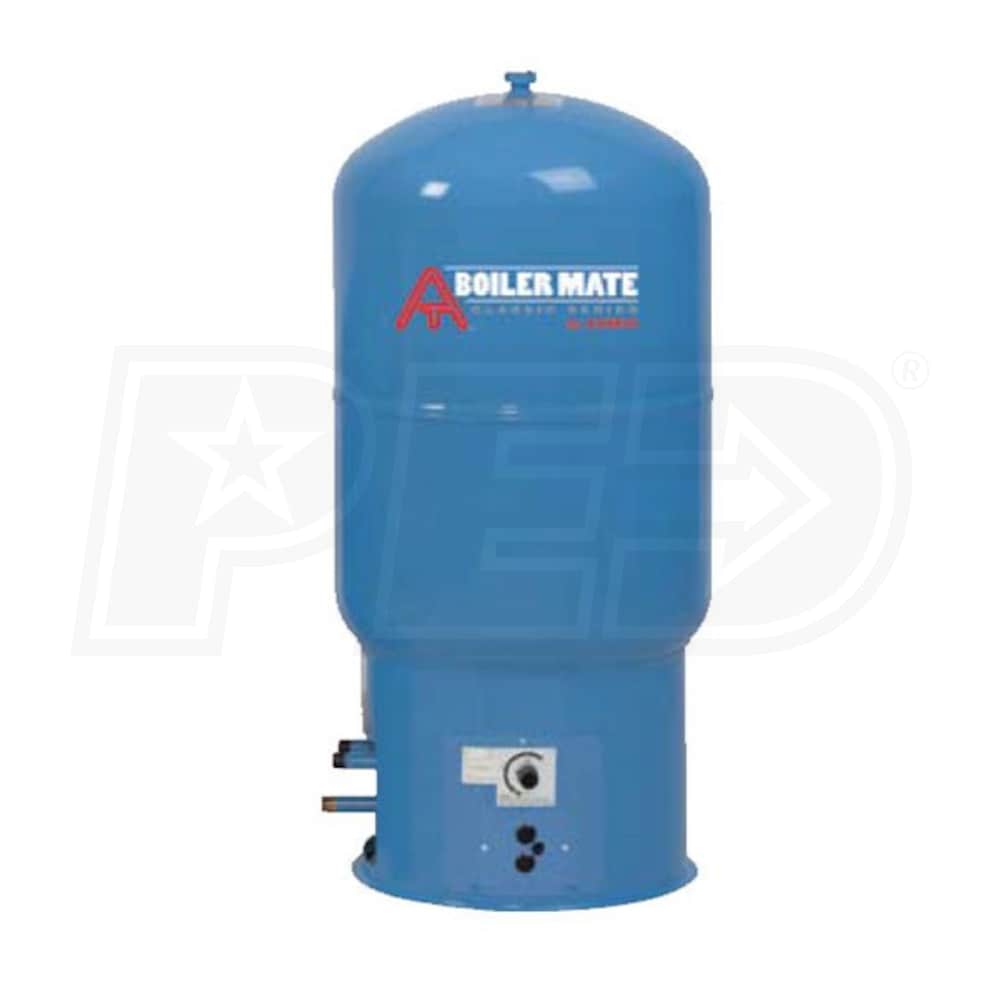

Amtrol WH-7CDW - 41 Gal. - Double Wall Indirect Water Heater

Model:

WH-7CDW

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Amtrol WH-7CDW - 41 Gal. -  Double Wall Indirect Water Heater
Amtrol WH-7CDW - 41 Gal. - Double Wall Indirect Water Heater
Model: WH-7CDW
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Amtrol has made a name for itself by engineering units to meet almost any need. The WH indirect-fired water heater is no different, it is designed to handle the high demands of large residential and commercial applications. The multiple pass heat exchanger delivers reliable hot water right when it is needed with domestic supply temperatures up to 180 degrees, and is removable for easy cleaning and service. WH's compact size allow for installation in small or tight spaces, and it is constructed with a bottom drain valve for convenience, efficient insulation that minimizes heat loss, and a large 316L stainless steel water reservoir. The WH is equipped with a digital control that provides you with built-in relays and diagnostics if any problems were to arise. This water heater is equipped with a double walled coil for regional code compliance.

    Product Features

    Bimodal HDPE Poly Bottle
    A high density polyethylene (HDPE) bottle is corrosion-proof and provides fresh, clean water, while resisting chlorides, scale, or aggressive water.

    High Output
    Steady-state heat transfer and multiple pass heat exchanger provide minimal pressure drop with domestic supply temperature up to 180 degrees.

    Durable Heat Exchanger
    The heat exchanger is removable allowing for easy service, has a scale resistant coating, and meets stringent codes.

    Digital Control
    WH's digital control is designed with built-in relays and diagnostics, providing ease of use.

    Bottom Mounted Drain Valve
    A pre-installed bottom mounted drain valve completely empties the tank while a sediment trap captures and flushes debris that would otherwise be left in the tank.

Specifications

WH-7CDW
specs product image PID-23205
General Information
Product Line
Premier
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Hot Water
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Indirect Fired
Storage Type
Tank
Application
Residential
Connection Type
Sweat
Material
HDPE
UPC
642031557407
Performance
First Hour Delivery Learn More
First Hour Delivery
Sometimes called First Hour Rating, this is the number of gallons of hot water the heater can supply per hour when starting with a fully heated tank. The recovery of the water heater depends on your boiler's BTU and boiler output temperature.
224 Gallons
Continuous Recovery Rate
241 Gallons
Maximum Operating Temperature
180 F
Dimensions
Storage Volume
41 Gallons
Connection Size
3/4 Inch
Product Diameter
22 Inches
Product Height
48 Inches
Shipping Height
48 Inches
Shipping Width
22 Inches
Shipping Length
22 Inches
Certifications
Country of Origin
USA
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
6 Years
