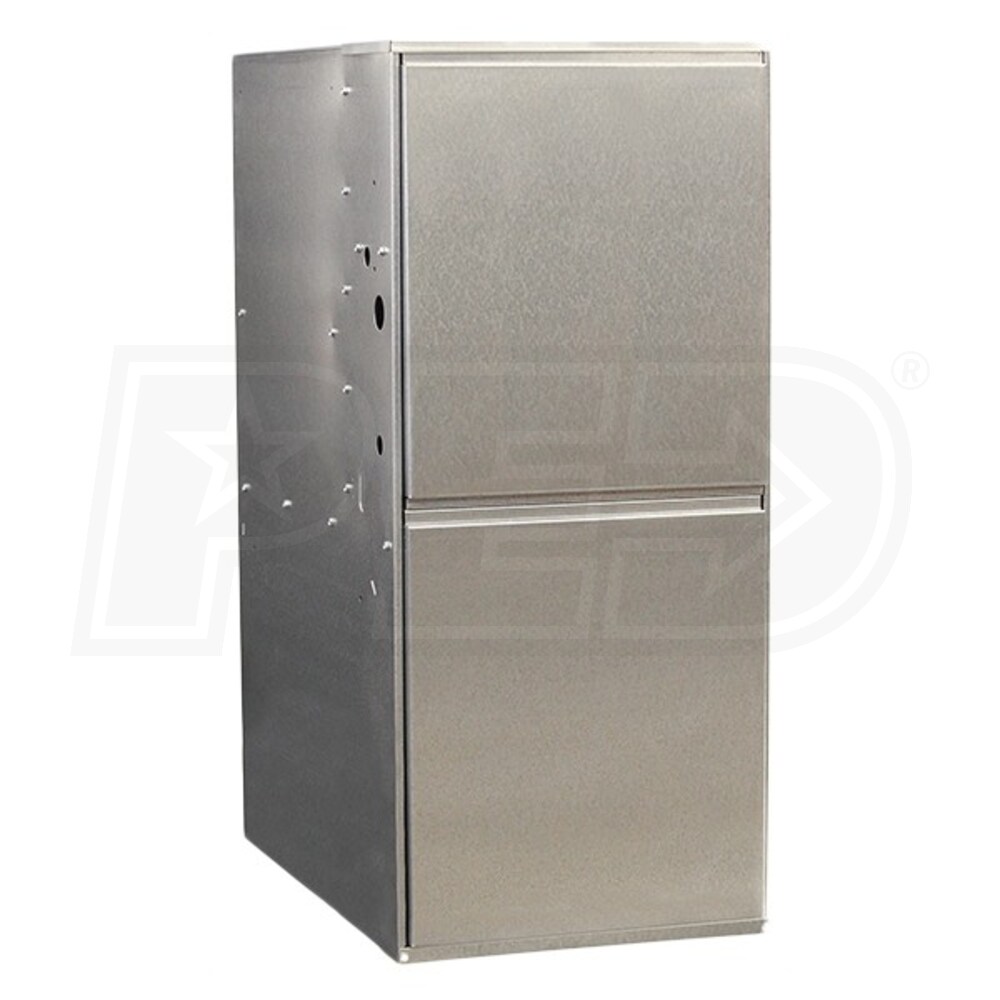

Ameristar M951P - 100,000 BTU - Gas-Fired Furnace - NG - 95% AFUE - Single-Stage - Upflow/Horizontal Left - Multi-Speed

Model:

M951P100CU48AA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Ameristar M951P - 100,000 BTU - Gas-Fired Furnace - NG - 95% AFUE - Single-Stage - Upflow/Horizontal Left - Multi-Speed
Ameristar M951P - 100,000 BTU - Gas-Fired Furnace - NG - 95% AFUE - Single-Stage - Upflow/Horizontal Left - Multi-Speed
Model: M951P100CU48AA
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Ameristar specializes in providing homeowners with superior comfort at an incredible value. The M951P gas-fired furnace clocks in at a 95% AFUE, meaning that only five cents out of every energy dollar aren't being converted to comfort. Efficiency isn't the only arena where the M951P excels; it's also an incredibly versatile heating solution. The M951P100CU48AA can be installed in either an upflow or a horizontal left orientation with single and dual pipe venting options. It is equipped with a condensate trap that protects the unit against corrosion and a hot surface ignition system with a solid state flame monitor for safety. Whether you're replacing old equipment or designing a new home, Ameristar's M951P is an efficient heating solution that will keep you comfortable.
  • Aluminized Steel Heat Exchanger
  • Ameristar chose an aluminized steel heat exchanger design for two reasons: high thermal conductivity and durability. These qualities translate into a heat exchanger that transfers heat quickly, efficiently, and without breaking down.
  • Tough Cabinet
  • Galvanized steel construction and a baked enamel finish mean that the cabinet of the M951P100CU48AA is built to resist corrosion and prevent wear and tear. It even includes foil-faced fiberglass insulation to prevent heat loss.
  • Quiet Comfort
  • Ameristar's M951P furnaces keep your home comfortable and quiet. The gas valve and burners feature low noise designs and the cabinet is sound insulated.
  • Air-Conditioning Ready
  • The M951P100CU48AA's blower is equipped to handle 4 tons of cooling and Ameristar employs the standard C furnace cabinet width of 21 to match existing coil cabinets. This makes it easy to integrate the unit into a heating and cooling system.
  • Control Board Terminals
  • Adding a humidifier and electronic air cleaner into your HVAC system is a breeze with the M951P. The control board features terminals for wiring them directly to the furnace.

Specifications

M951P100CU48AA
specs product image PID-30497
General Information
Type
Gas Furnace
Product Line
M951P
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Type Learn More
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal Left
Gas Conversion Kit
Available
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Heating BTU
100000
High Fire Input
100000 BTU
High Fire Output
92150 BTU
Maximum Air Flow
1679 CFM
Minimum Air Flow
1433 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
12.5 Amps
Recommended Breaker Size
20 Amps
Dimensions
Flue Connection Size
3 Inches
Product Height
40 Inches
Product Width
21 Inches
Product Depth
28 1/2 Inches
Product Weight
160 Pounds
Shipping Width
23 Inches
Shipping Height
30 1/2 Inches
Shipping Length
41 3/4 Inches
Shipping Weight
171 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
5370955
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
