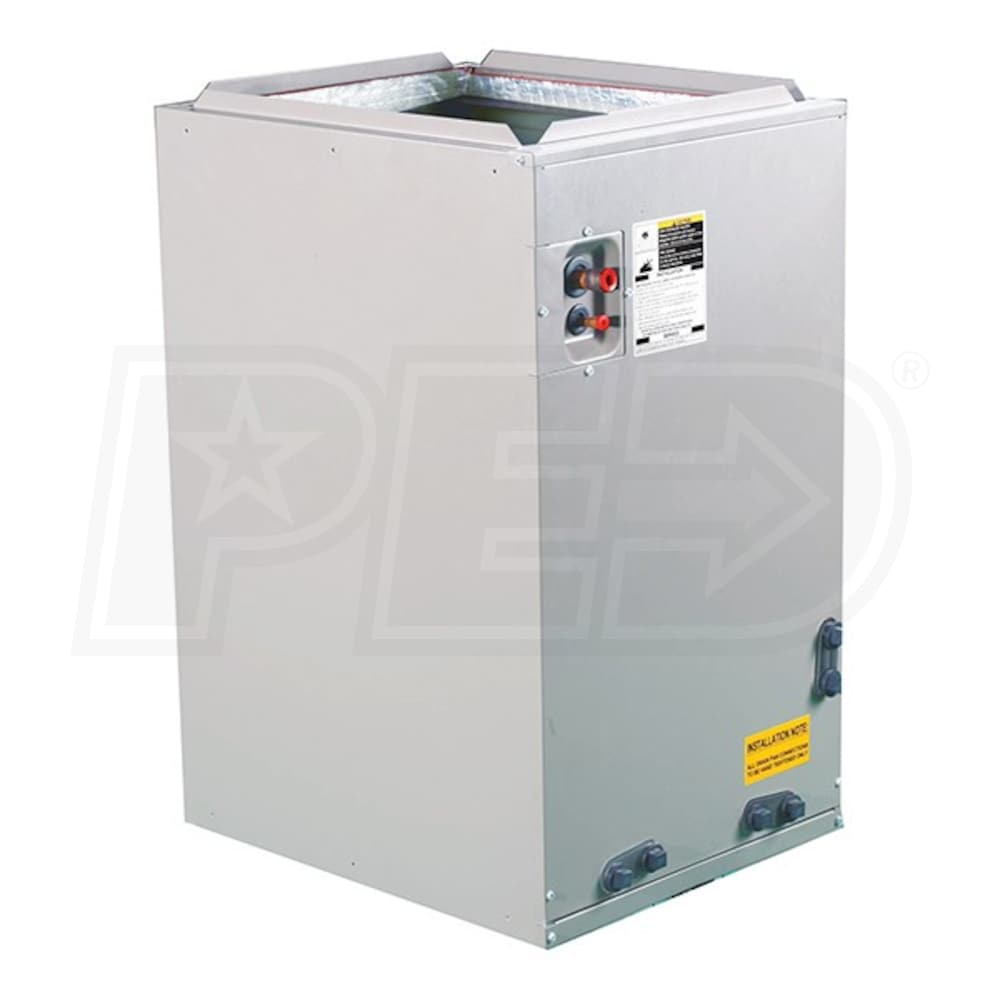

Ameristar M4CXC - 4 Ton - Multi-Position A-Coil - Cased

Model:

M4CXC049AC1CAA

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Ameristar M4CXC - 4 Ton - Multi-Position A-Coil - Cased
Ameristar M4CXC - 4 Ton - Multi-Position A-Coil - Cased
Model: M4CXC049AC1CAA
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Ameristar specializes in providing homeowners with superior comfort at an incredible value. An M4CXC evaporator coil is the perfect addition to an Ameristar central air system. The M4CXC049AC1CAA is a 4 ton cased A-coil that can be used with either a heat pump or air conditioner. It features a flexible design that makes it easy to integrate into nearly any system. In addition to easy installation, the M4CXC also includes design elements that enhance energy-efficiency, allowing you to stay comfortable without spending big.
  • Energy Efficient Coil Design
  • The M4CXC049AC1CAA is designed with fins and grooved copper tubing to maximize the coil's surface area and heat transfer efficiency. The fins are made of corrosion-resistant blue-enhanced aluminum for improved longevity.
  • Adaptable to Your Application
  • Ameristar's evaporator coils are compatible with both R-22 and R-410A refrigerant. They are also designed for compatibility with upflow, downflow, and horizontal airflow systems, making them a perfect fit for nearly any system.
  • Insulated Cabinet
  • The cabinet of the M4CXC049AC1CAA is lined with foil-faced thermal insulation. This inhibits the formation of sweat on the coil, which speeds up maintenance and helps prevent heat loss.
  • Condensate Management
  • Ameristar evaporator coils are equipped with thermal set condensate drain pans. This material resists heat and does not corrode, making it perfect for condensate management applications.

Specifications

M4CXC049AC1CAA
specs product image PID-30455
General Information
Type
Evaporator Coil
Product Line
M4CXC
Refrigerant Type
R-22 or R-410a
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
30 Inches
Product Width
21 Inches
Product Depth
21 Inches
Product Weight
83 Pounds
Shipping Height
32 7/8 Inches
Shipping Width
24 1/2 Inches
Shipping Length
24 3/8 Inches
Shipping Weight
88 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
