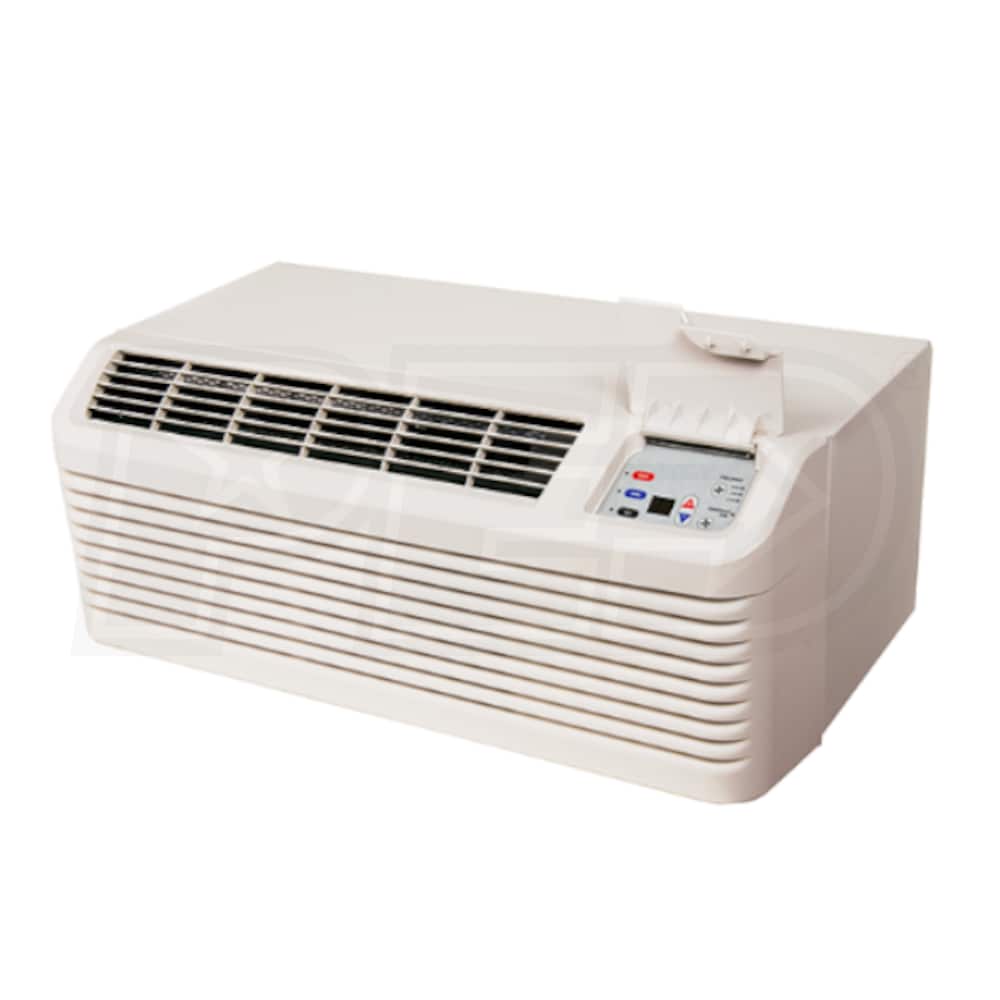

Amana 7,600 BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Cooling Only - 3.5 kW Electric Heat - 208-230 Volt

Model:

PTC073G35AXXX

Write A Review
Discontinued
Try this product instead
Amana 7,600 BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Cooling Only - 3.5 kW Electric Heat - 208-230 Volt
Amana 7,600 BTU Capacity - Packaged Terminal Air Conditioner (PTAC) - Cooling Only - 3.5 kW Electric Heat - 208-230 Volt
Model: PTC073G35AXXX
Not For Individual Sale
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Amana PTC073G35AXXX is a great choice for home packaged unit needs. A Compressor Lock-in system helps prevent short-cycling, increasing the lifespan. Diagnostic lights and easily accessible filters and coils also contribute to the long life of the unit. Backed by a five year warranty and built in the USA, the PTC series is a durable, reliable and efficient unit that will never disappoint.

    Product Features

    Condensate Dispersion System
    The system draws water directly onto the outdoor coil for fast evaporation, leading to increased efficiency. Increased surface area from the coil allows more water to be evaporated even on the sides of the coils, further reducing condensate run-off.

    Fan-Off Delay
    After the compressor stops, the fan continues to run for 30 seconds, improving the dispersion of the conditioned air in the room.

    Quiet Operation
    Two fan motors, and a tangential fan work together to reduce the overall volume of the unit. A quieter unit is less intrusive to every facet of home life, from talking to relaxing to sleeping.

  • Wall Sleeve Sold Separately.
  • Grille Sold Separately.
  • Versatile Style that blends into any room's color scheme and decor
  • Easy to Service with On-Board LED Diagnostics
  • DigiSmart Wireless Remote Thermostat is available
  • Remote Temperature Sensing for guest climate control
  • Extended Heat Pump Heating down to as low as 24F outdoor ambient temperature
  • Zero Floor Clearance allows unit to be installed flush to a finished floor
  • 30-Second Fan-Off Delay
  • Compressor Lock-In prevents compressor short-cycling
  • Constant Fan Mode
  • Hidden Ventilation Control
  • High-Pressure Switch
  • Quiet Operation: STC of 28
  • Assembled in the USA for 30 years
  • Increased Dehumidification Capacity
  • 100% Run Tested at our plant in Fayetteville, TN, for leaks
  • 7" Unit Front Depth: one of the shallowest silhouettes in the industry today
  • Removable Condenser Shroud allows easy access to enable regular cleaning of coils
  • Easy Pull-Out Filters that are washable and easy to maintain
  • Filter Dryer for Sealed System Refrigerant
  • 7-Button Touch Pad provides complete control to guests for in-room comfort while maintaing energy efficiency
  • Condensate Dispersion System removes condensate from indoor cooling operation and evaporates it into the atmosphere through the condenser
  • DigiSmart Front Desk Control and energy management software
  • Room Freeze Protection is activated when the unit senses temperatures of 40 Degrees Fahrenheit or below
  • Our SKU number(s): Amana PTC073G35AXXX
  • The manufacturer model number(s): Amana PTC073G35AXXX
  • Product Note
    PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PTC073G35AXXX
specs product image PID-58413
Overview
Product Category
PTAC Unit
General Information
Type
PTAC
Product Line
PTC
Product Category
PTAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Electric Heat
Electric Heat
Yes
Performance
Cooling BTU
7700
Cooling Capacity
7700 BTU
Electric Heat Capacity
3.5 kW
Moisture Removal
1.7 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.7
Maximum Air Flow
290 CFM
Minimum Air Flow
264 CFM
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
23.6 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
16 1/16 Inches
Product Width
42 Inches
Product Depth
21 1/2 Inches
Product Weight
99 Pounds
Shipping Weight
114 Pounds
Certifications
Country of Origin
United States
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
