AIC LB31-050XJ Brazed Flat Plate to Plate Heat Exchanger, Single Wall - 260,000-300,000 BTU
Major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. Plate heat exchangers are now common and very small brazed versions are used in the hot-water sections of millions of combination boilers. The high heat transfer efficiency for such a small physical size has increased the domestic hot water (DHW) flowrate of combination boilers. The small plate heat exchanger has made a great impact in domestic heating and hot-water. Larger commercial versions use gaskets between the plates, smaller version tend to be brazed.
The concept behind a heat exchanger is the use of pipes or other containment vessels to heat or cool one fluid by transferring heat between it and another fluid. In most cases, the exchanger consists of a coiled pipe containing one fluid that passes through a chamber containing another fluid. The walls of the pipe are usually made of metal, or another substance with a high thermal conductivity, to facilitate the interchange, whereas the outer casing of the larger chamber is made of a plastic or coated with thermal insulation, to discourage heat from escaping from the exchanger.
Brazed Flat Plate to Plate Heat Exchanger - Water to Water Heat Exchangers Applications:
Radiant Floor and Central Hydronic Heating Systems:
Solar and Geothermal Systems:
Snow Melt Systems:
Domestic Hot Water (DHW) Systems:
Swimming Pool and Spas Systems:
Outdoor Wood or Coal Burning Boilers:
Condensers and evaporators refrigeration systems - Because of the efficiency and versatility, our plate heat exchangers are used throughout the refrigeration cycle, in these applications:
Brazed Flat Plate to Plate Heat Exchanger - Water to Water Heat Exchangers - Advantages:
Plate Heat Exchangers Warranty

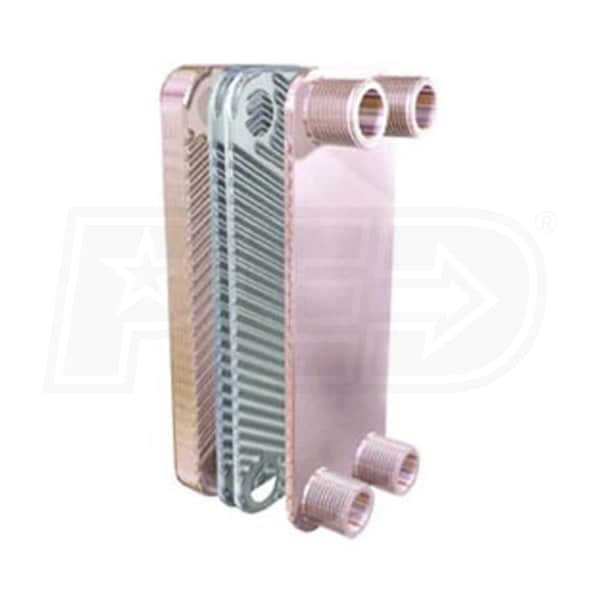

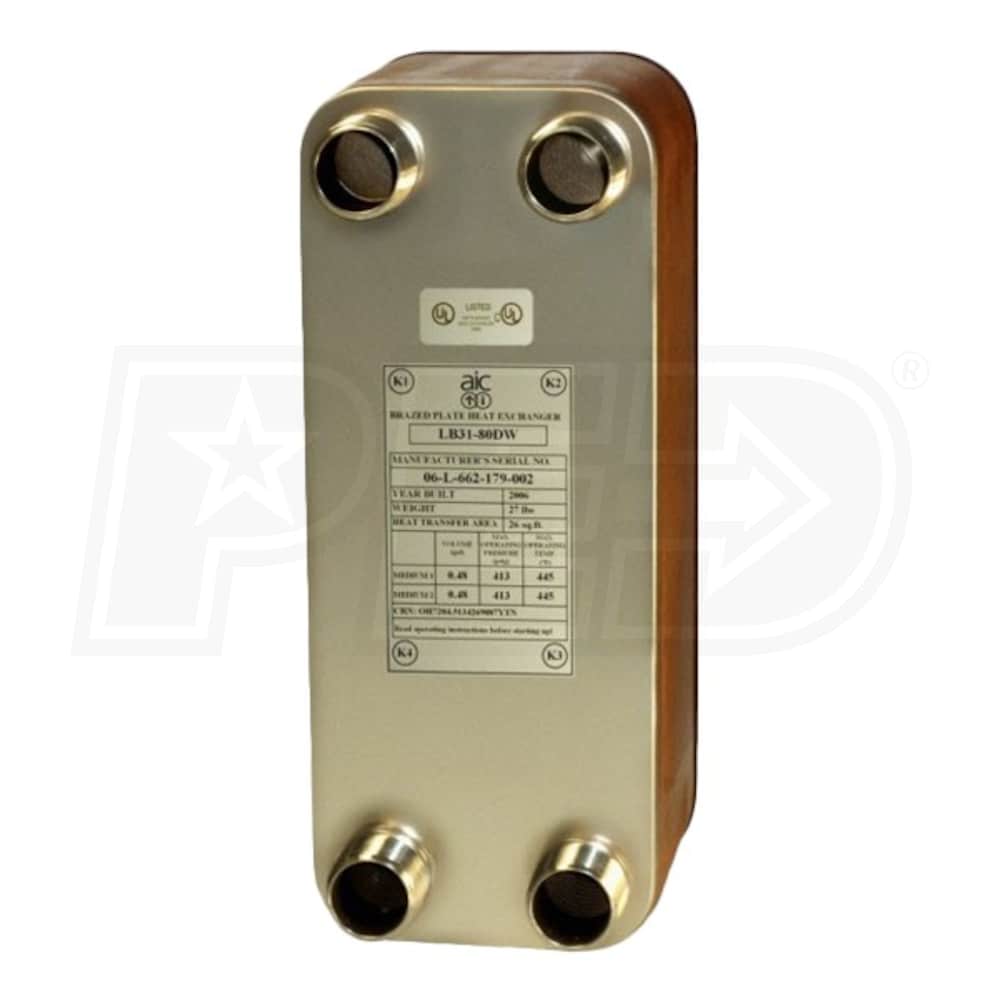

Designed for maximum performance, the L-line's sturdy, rugged assembly is composed of stainless steel plate packs sealed together by means of brazing metal along the border of the units, eliminating the need for traditional gaskets or external pressure retaining parts. The plate packs are embossed with special corrugation patterns to promote high turbulence flow, which dramatically increases the heat transfer rates of the units thus making them a highly economical and effective solution for many process and heating application.
All Plate Heat Exchangers look similar on the outside. The difference lies on the inside, in the details of the plate design and the sealing technologies used. Hence, when evaluating a plate heat exchanger, it is very important not only to explore the details of the product being supplied, but also to analyze the level of research and development carried out by the manufacturer and the post-commissioning service and spare parts availability.
